5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Senders And Sensors

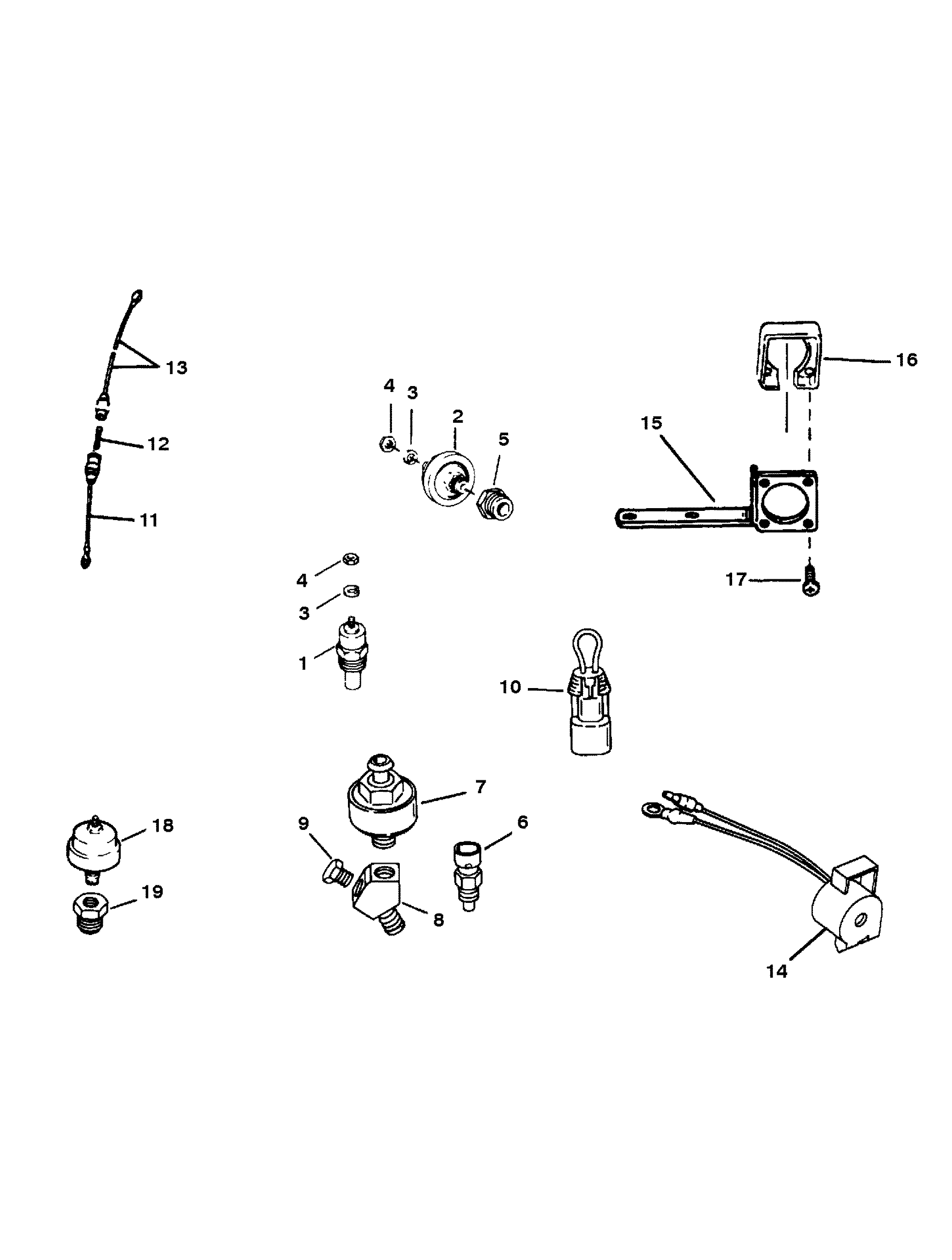

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806490T         WATER TEMPERATURE SENDER 1 97257A1
1 49734         WATER TEMPERATURE SENDER OPT 49734A1 (DUAL STATION) 7
2 8M0068784         OIL PRESSURE SENDER 1 815425
2 37293T         OIL PRESSURE SENDER OPT 37293 (DUAL STATION) 7
3 13-26996         LOCKWASHER 2

4 11-68219         NUT 2

5 22-805059         REDUCER 1

6 805218T   676-9-42402     COOLANT TEMPERATURE SENSOR 1

7 806612T         KNOCK SENSOR 1

8 22-806705         Y-FITTING 1   This Part is No Longer Available
9 22-36382     700-21887   PIPE PLUG 1

10 805592A1         CONNECTOR 1
BRAVO ENGINES
11 84-95084A9         WIRE 1
BRAVO ENGINES
12 88-79091         FUSE 1
BRAVO ENGINES
13 84-95084A10         WIRE 1
BRAVO ENGINES
14 816492A6         AUDIO WARNING SWITCH 1
15 805383T         BRACKET 1
16 26079A2         PLATE ASSEMBLY 1
17 10-15001         SCREW 4
18 87-805605A1         PRESSURE SWITCH 1
19 22-8053281         ELBOW 1
