5.7LX EFI (4 BBL-TBI) GM 350 V-8 1996 - Serial 0F752400 Thru 0K001505 - Fuel Pump And Fuel Filter

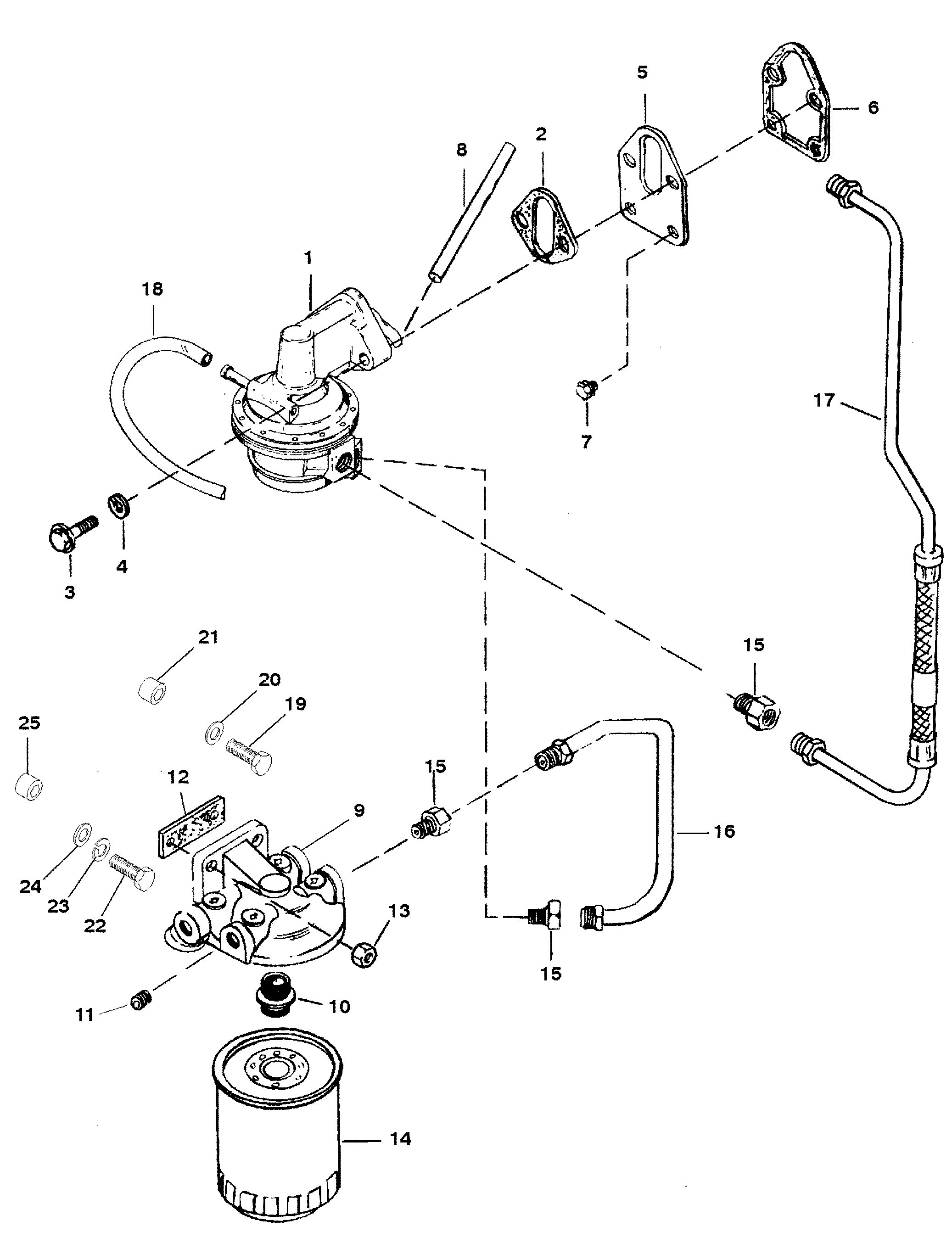

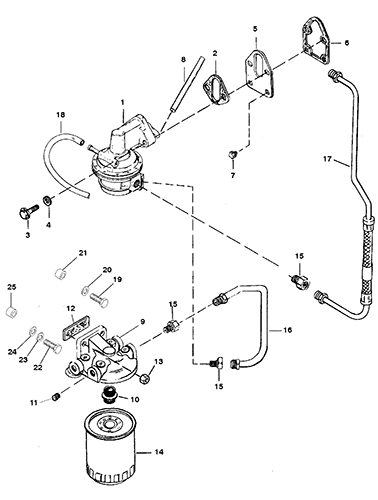

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0058164         FUEL PUMP 1 97401A8
2 27-34213   676-9-61041 700-31360   GASKET 1
5
3 10-34354         SCREW (1-1/2") 2

4 13-35048         LOCKWASHER 2

5 35373         MOUNTING PLATE 1

6 27-34898   676-9-61042 700-32750   GASKET 1
5
7 10-35366         SCREW 2

8 35377         PUSH ROD 1
5.7L ALPHA/BRAVO
8 821150         PUSH ROD 1   This Part is No Longer Available 5.7LX ALPHA/BRAVO No longer made, limited availability
9 89876A3         BASE ASSEMBLY 1

10 22-816133         FITTING 1 22-8161331
11 22-32561         PIPE PLUG 3

12 88641         MOUNTING BRACKET 1

13 11-82670911         NUT 2 11-35814
14 35-802893Q01         FUEL FILTER/WATER SEPARATOR 1 35-807172
15 22-33821         CONNECTOR 3

16 32-97326T         FUEL LINE 1

17 32-806641T         FUEL LINE 1   This Part is No Longer Available
18 32-7381567         HOSE 1

19 10-37612         SCREW 1

20 13-35048         LOCKWASHER 1

21 23-91034         SPACER 1
No longer made, limited availability
22 10-26486         SCREW 1

23 13-35048         LOCKWASHER 1

24 12-20553         WASHER 1

25 23-15895         SPACER 1
No longer made, limited availability
- 27-806871A96         GASKET SET-OVERHAUL 1
