4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Water Drain Air Manifold and Pump

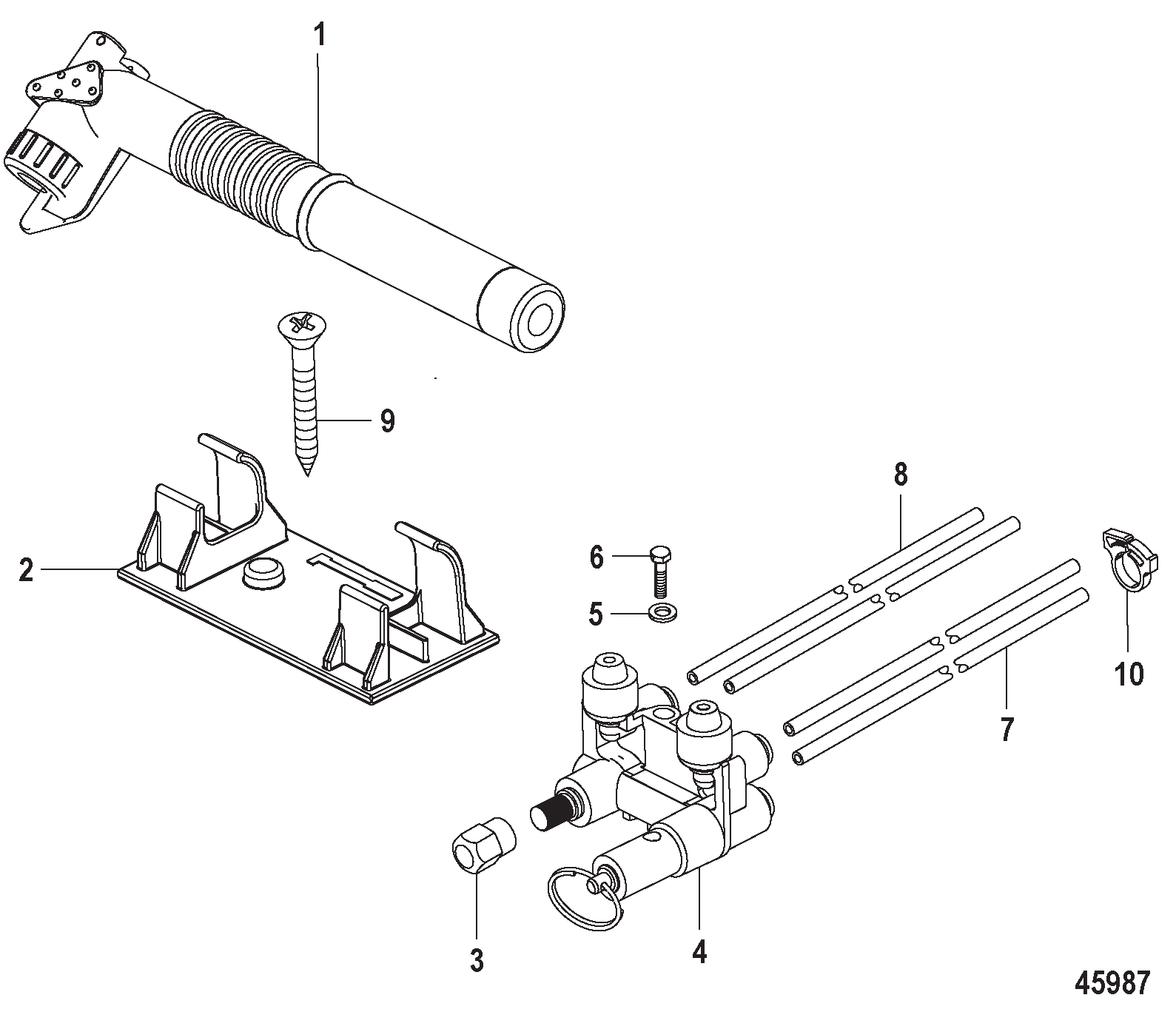

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-863057 PUMP Bracket Assembly   1
2 0000 OEM: 525-8M0046157 BRACKET Air Pump   1
3 0019 OEM: 525-19-8M0046566 CAP Service Point   1
4 0000 OEM: 525-863053T MANIFOLD ASSEMBLY Air   1
5 0012 OEM: 525-12-4002314 WASHER   2
6 0010 OEM: 525-10-864887 SCREW (M5)   2
7 0032 8630542 HOSE (40.00 Inches Bulk) Grey (Cut to 33 Inch Length)   2
8 0032 OEM: 525-32-8M2021609 HOSE (33 Inches) Black   2
9 0010 OEM: 525-10-79968 SCREW (#12-11 x .750)   2
10 0054 OEM: 525-54-415825 CLAMP Nylon   1
NS 0032 OEM: 525-32-8630561 HOSE (42.00 Inches Bulk) Black (Cut to 28 Inch Length)   2
