4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Steering Components

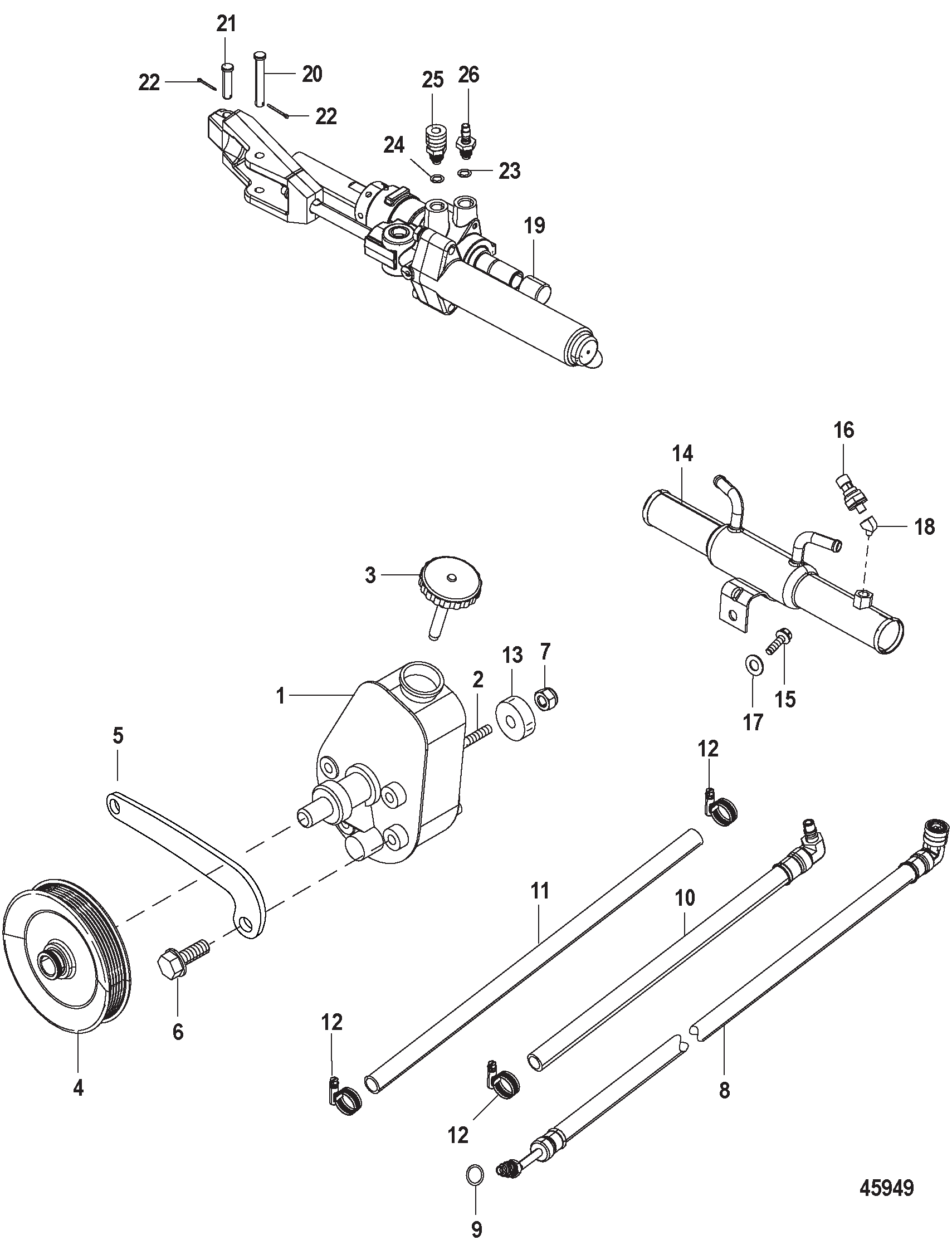

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-16792A39, Sierra: 676-18-7508 PUMP ASSEMBLY Power Steering   1
2 0016 OEM: 525-16-41877 STUD (M10)   2
3 0036 OEM: 525-36-95805 CAP   1
4 0000 OEM: 525-861578, Sierra: 676-18-8297 PULLEY   1
5 0000 OEM: 525-8M2021996 BRACKET Power Steering   1
6 0010 OEM: 525-10-40001188 SCREW (M10 x 20)   1
7 0011 OEM: 525-11-90517 NUT (M10)   2
7 0011 OEM: 525-11-8M2000545 NUT (M10) Stainless Steel (SEACORE) 2
8 0032 OEM: 525-32-866685 HOSE Female Quick Connect (Fittings on Both Ends)   1
8 0032 OEM: 525-32-866509 HOSE Pressure (Fittings on Both Ends) (SEACORE) 1
8 0032 OEM: 525-32-866689 HOSE Female Quick Connect (Fittings on Both Ends) Jackshaft Models 1
9 0025 OEM: 525-25-89879 O-RING (.301 x .064)   1
10 0032 OEM: 525-32-865390015 HOSE Male Quick Connect (Fitting on One End)   1
10 0032 OEM: 525-32-865390134 HOSE Male Quick Connect (Fitting on One End) Jackshaft Models 1
11 0032 5251914 HOSE (53.00 Inches Bulk) Pump to Oil Cooler (37 Inch)   1
12 0054 OEM: 525-54-815504105 CLAMP Worm Gear (11-18 mm) Hose   3
13 0023 OEM: 525-23-905201 SPACER (.750 x .250)   1
14 0000 OEM: 525-863820T1 COOLER Power Steering   1
15 0010 OEM: 525-10-816585 SCREW (.312-18 x .875)   1
16 0000 881879010 SENSOR   1
17 0013 OEM: 525-13-72521 LOCKWASHER Internal Tooth   1
18 0022 OEM: 525-22-29085 FITTING Elbow (45 Degree) Closed Cooling 1
19 0000 866200A01 CYLINDER ASSEMBLY Power Steering   1
20 0017 OEM: 525-17-15878 PIN Clevis Long   1
21 0017 OEM: 525-17-16419 PIN Clevis Short   1
22 0018 OEM: 525-18-46950 COTTER PIN   2
23 0025 OEM: 525-25-806232 O-RING (.239 x .064)   1
24 0025 OEM: 525-25-89879 O-RING (.301 x .064)   2
25 0022 OEM: 525-22-865415 FITTING   1
26 0022 OEM: 525-22-865414001 FITTING   1
NS 0019 8079921 COVER Hose Clamp End (.25 Inside Diameter) AR
NS 0019 8079923 COVER Hose Clamp End (.375 Inside Diameter) 1
NS 0000 OEM: 525-77054 TIE STRAP (14.50 Inches)   1
