4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Standard Cooling System (Bravo) Sea Pump Hoses

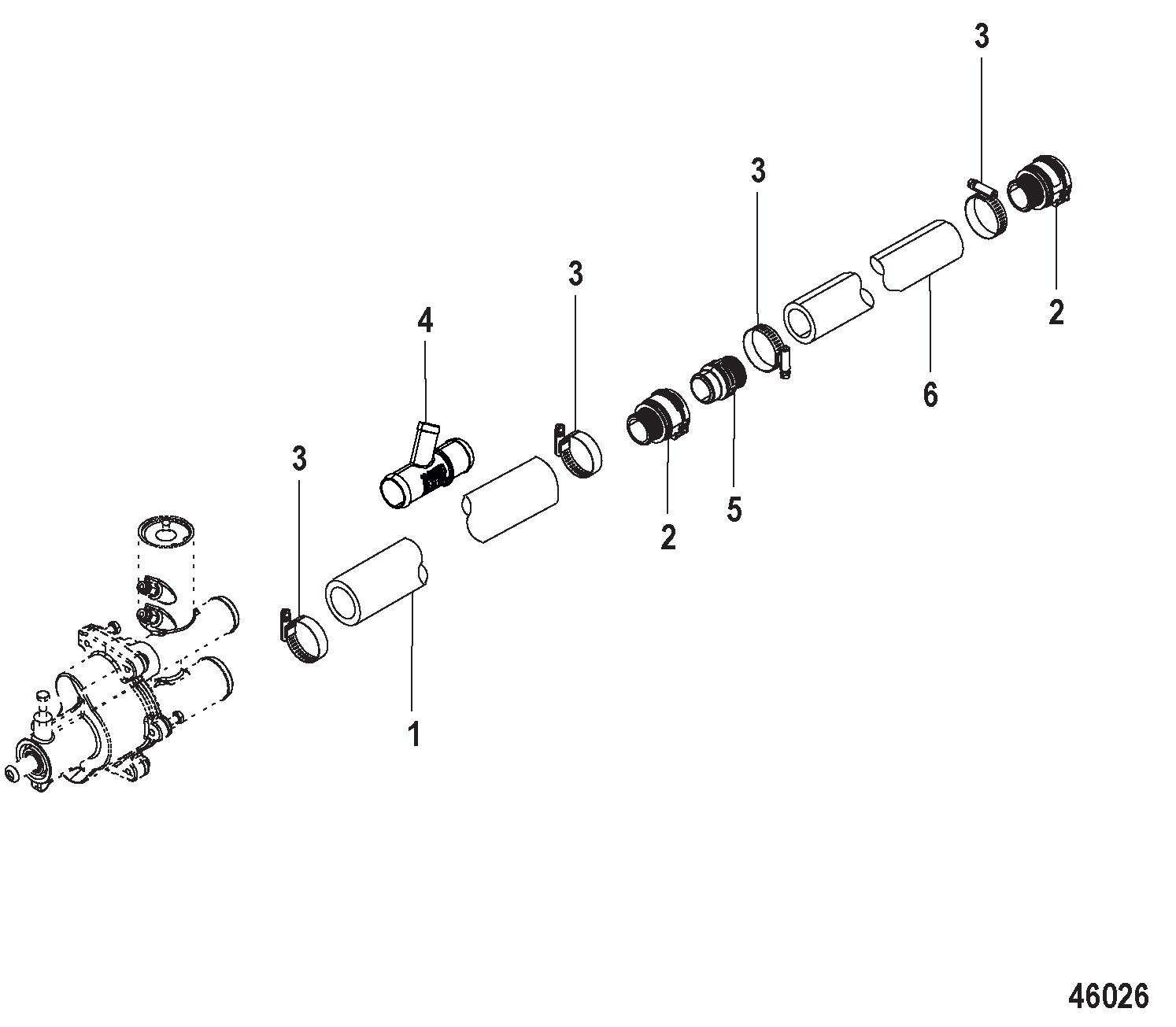

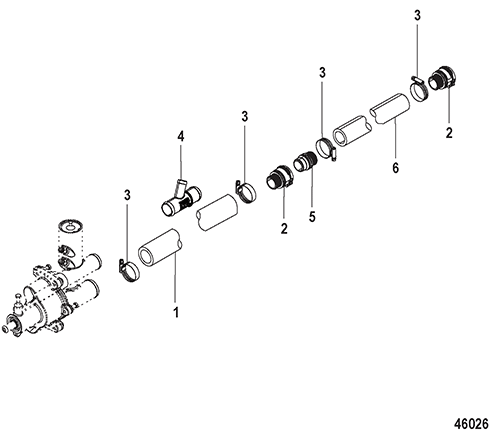

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0032 865672079 HOSE (96.00 Inches Bulk) Cut to 13 Inches 1
2 0022 OEM: 525-22-865324 QUICK CONNECT   2
3 0054 OEM: 525-54-815504222 CLAMP Worm Gear (1.98 DIameter)   AR
4 0022 OEM: 525-22-864727 FITTING Y, (3) 1-1/4 In. OD Hose Barbs (If Required) 1
5 0022 OEM: 525-22-865362 QUICK CONNECT   1
6 0032 865672079 HOSE (96.00 Inches Bulk) Cut to 15 Inches 1
