4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Sea Water Pump Assembly

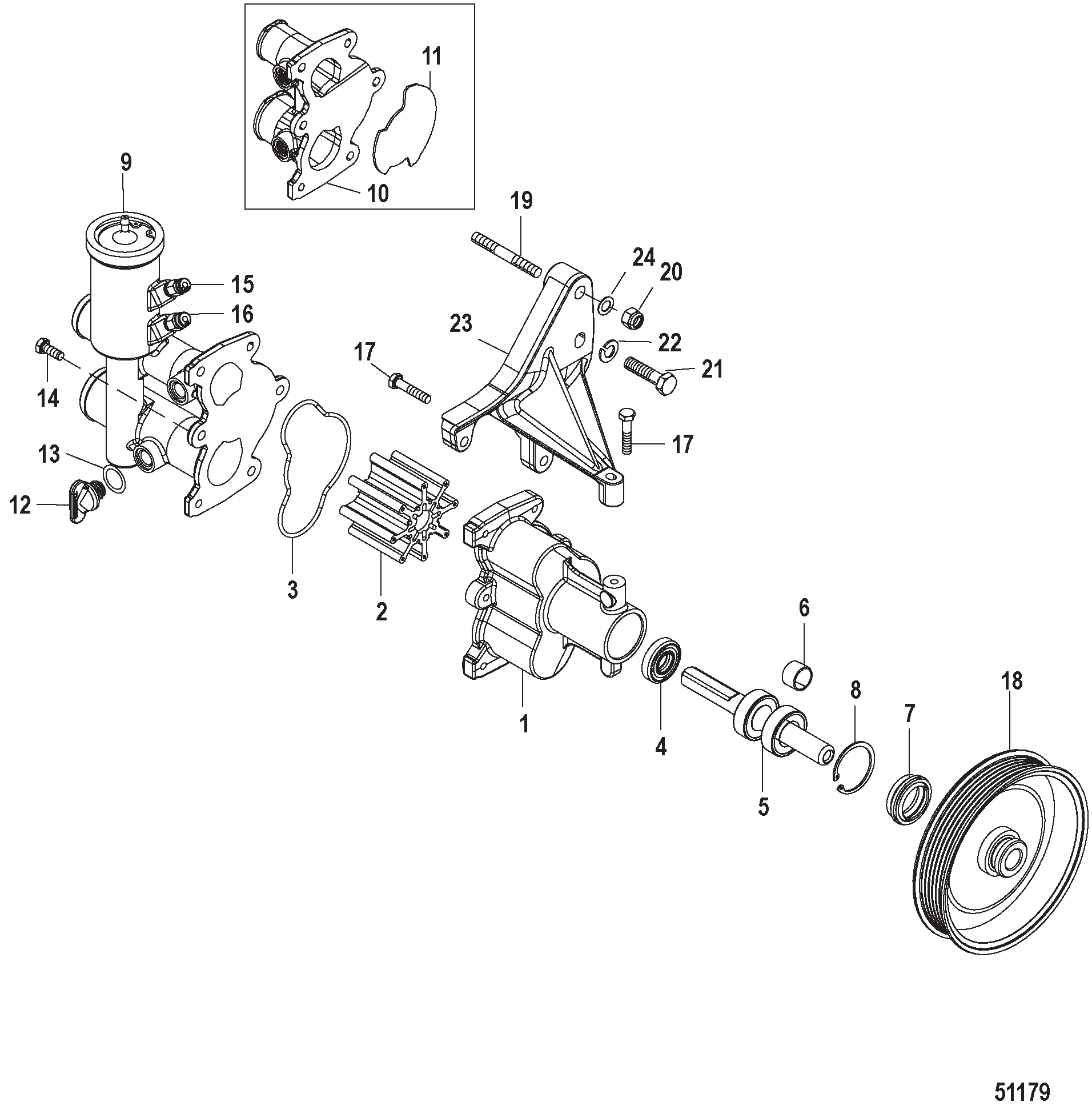

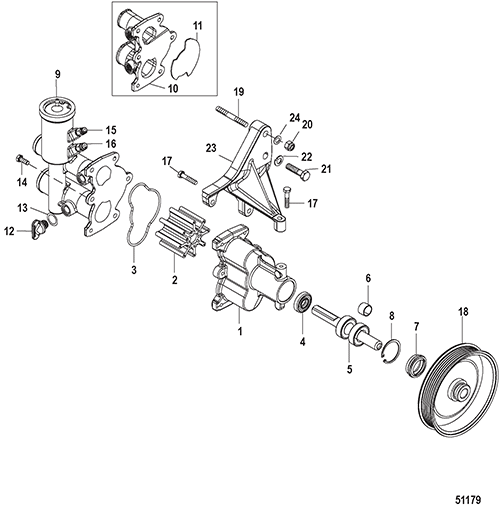

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
- 0046 862914T10 PUMP KIT Sea Water (Without Air Fittings) 1
- 0046 862914T11 PUMP KIT Sea Water (With Air Fittings) 1
1 0046 OEM: 525-46-862914A13, Sierra: 676-18-3160-1 HOUSING ASSEMBLY Impeller   1
2 0047 862232A2 IMPELLER   1
3 0000 OEM: 525-8M2021987 O-RING Formed (Also included with Reference 8 and 9)   1
- 0000 OEM: 525-8M0050018 DRIVESHAFT ASSEMBLY KIT   1
4 0026 OEM: 525-26-8M2001645 SEAL Oil   1
5   NSS NOT SOLD SEPARATE DRIVESHAFT ASSEMBLY   1
6   NSS NOT SOLD SEPARATE SPACER   1
7 0026 OEM: 525-26-862040 SEAL Lip   1
8   NSS NOT SOLD SEPARATE SNAP RING   1
9 0000 OEM: 525-863674A05 COVER KIT Impeller Housing (With Air Fittings) 1
10 0000 OEM: 525-862776A01 COVER KIT Impeller Housing (Without Air Fittings) 1
11 0000 OEM: 525-8M2014176 PLATE Wear   1
12 0022 OEM: 525-22-806608A02, Sierra: 676-18-4226 PLUG ASSEMBLY (.500-13) Blue (Also included with 863674A05) 2 [1]
13 0025 OEM: 525-25-26802, Sierra: 676-18-7180, GLM: 700-81110 O-RING (.424 x .103)   2
14 0010 OEM: 525-10-4000328 SCREW (M6 x 16)   6
15 0022 OEM: 525-22-863718 FITTING Gray - Straight Male Air (.1562)(Component of 46- 862914T11) 1
16 0022 OEM: 525-22-863719 FITTING Orange - Straight Male Air (.1875)(Component of 46- 862914T11) 1
17 0010 OEM: 525-10-865152 SCREW (M6)   3
18 0000 862351T PULLEY   1
19 0016 OEM: 525-16-863853 STUD   1
20 0011 OEM: 525-11-82671112 NUT (.375-16)   1
21 0010 OEM: 525-10-32132 SCREW (.375-16 x 1.750)   1
22 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   1
23 0000 OEM: 525-865143T01 BRACKET Sea Water Pump   1
24 0012 OEM: 525-12-38622 WASHER (.391 x 1.00 x .125)   1

PART NOTES:

[1] - Alternate part numbers:

806608A02Service Part

806608Q01QS
