4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Intake Manifold and Fuel Rail

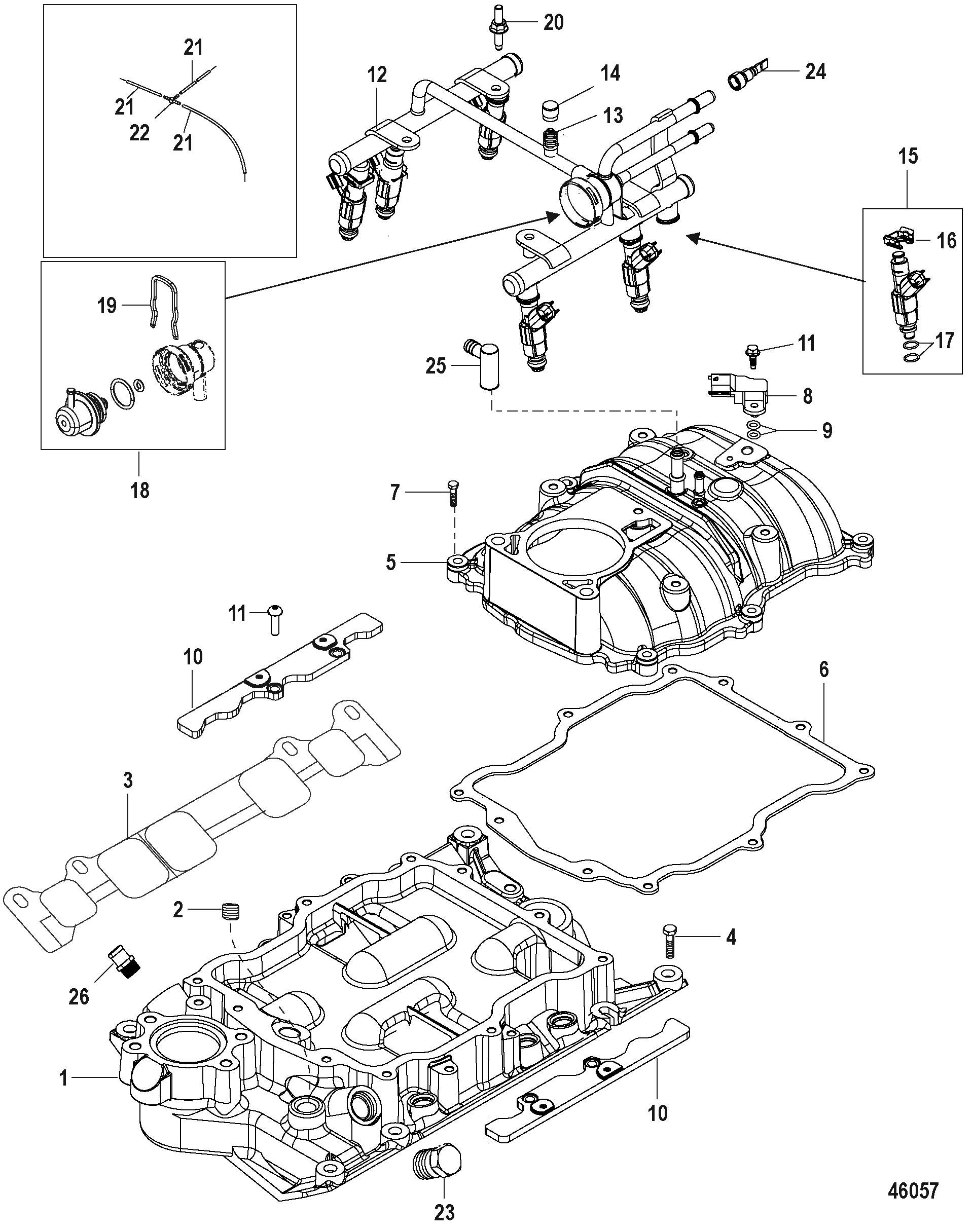

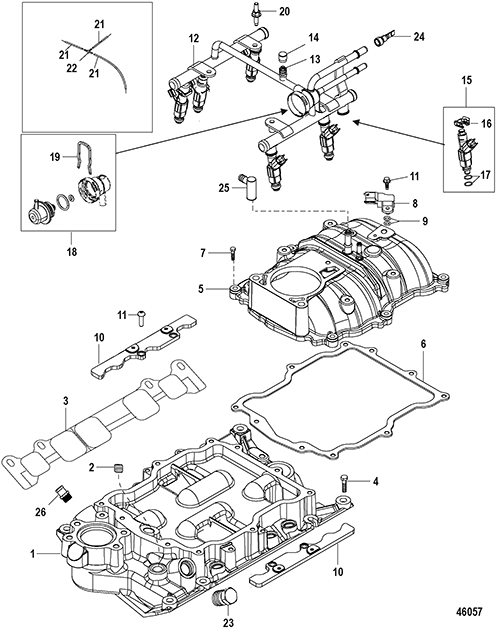

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-879288T01 MANIFOLD Intake - Lower   1
2 0022 OEM: 525-22-48358T PLUG (.375)   1
3 0027 OEM: 525-27-824326002, Sierra: 676-18-0487 GASKET SET Intake Manifold   1 [1]
4 0010 OEM: 525-10-808010 SCREW (.312-18 x 1.375)   8
5 0000 OEM: 525-888773T MANIFOLD Intake Upper   1
6 0027 OEM: 525-27-888774 GASKET Intake Manifold   1 [1]
7 0010 OEM: 525-10-885166 SCREW   8
8 0000 OEM: 525-885165 SENSOR Manifold Air Pressure and Temperature   1
9 0025 OEM: 525-25-881733 SEAL   2 [1]
10   NSS NOT SOLD SEPARATE Bracket- Component of 888771T   1
11 0010 OEM: 525-10-885180 SCREW   4
12 0000 OEM: 525-888775T FUEL RAIL ASSEMBLY   1
13 0000 OEM: 525-885178 VALVE Fuel Pressure Service   1
14 0000 OEM: 525-885179 CAP Fuel Pressure Service Valve   1
15 0000 OEM: 525-879312003 INJECTOR   6
16 0000 OEM: 525-885177 RETAINER Injector   1
17 0025 8M0046869 O-RING KIT   1
18 0000 OEM: 525-885174 REGULATOR Fuel Pressure   1
19 0000 OEM: 525-885175 CLIP Fuel Pressure Regulator Retaining   1
20 0010 OEM: 525-10-885180 SCREW   4
21 0032 80617382 HOSE (58.00 Inches Bulk) (Cut to Appropriate Length)   2
22 0022 OEM: 525-22-806689 FITTING Tee   1
23 0022 OEM: 525-22-866157 PLUG   1
24 0022 OEM: 525-22-8623601 PLUG Fuel Rail Block Off   1
25 0022 OEM: 525-22-863432T FITTING 90 Degree   2
26 0022 OEM: 525-22-806242 CONNECTOR Closed Cooling 1
- 0027 OEM: 525-27-807756A02 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - Component of Engine Overhaul Gasket Set 807756A02
