4.3L MPI ALPHA-BRAVO EC - 1A637496 and Up - Poppet Valve Assembly Closed Cooling

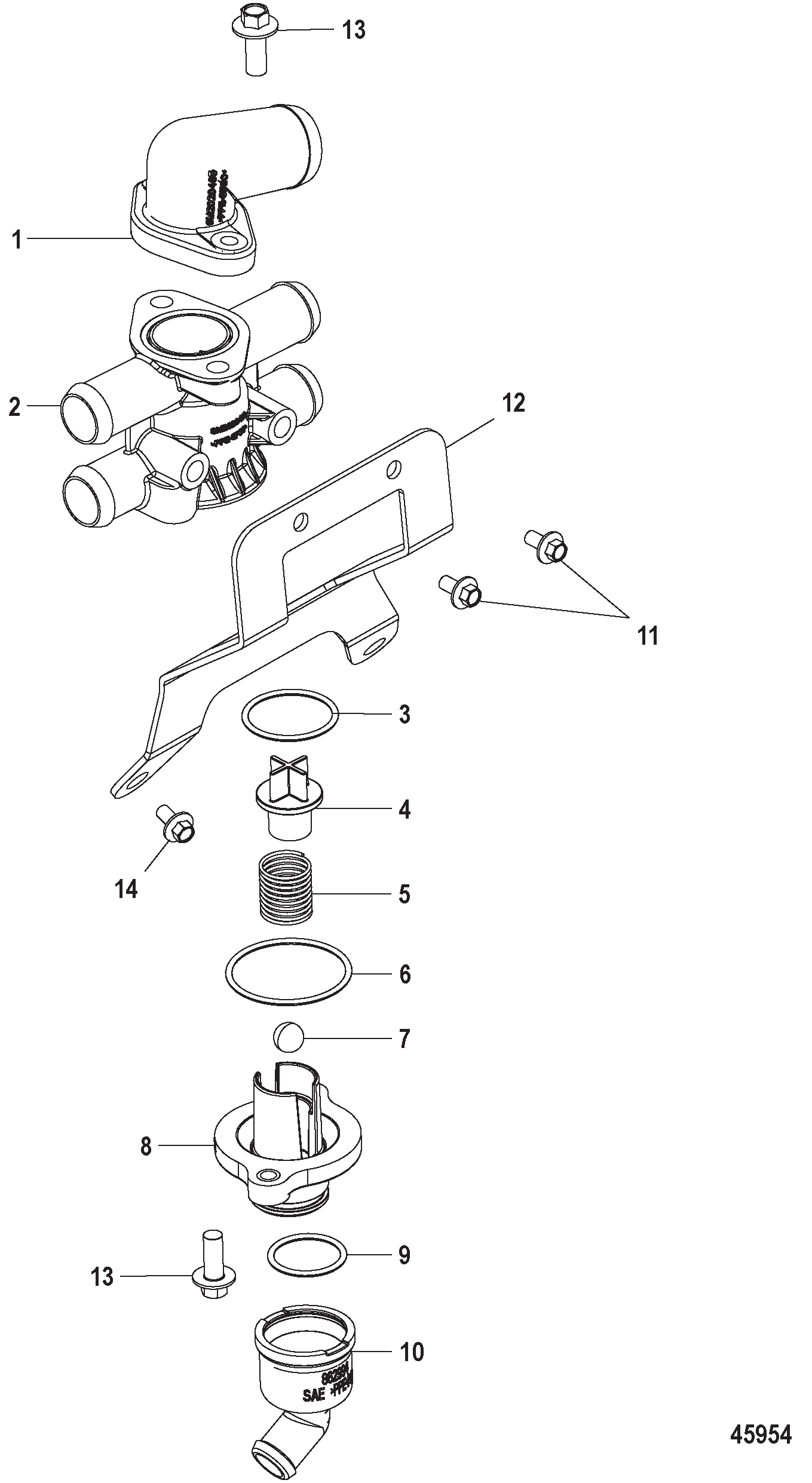

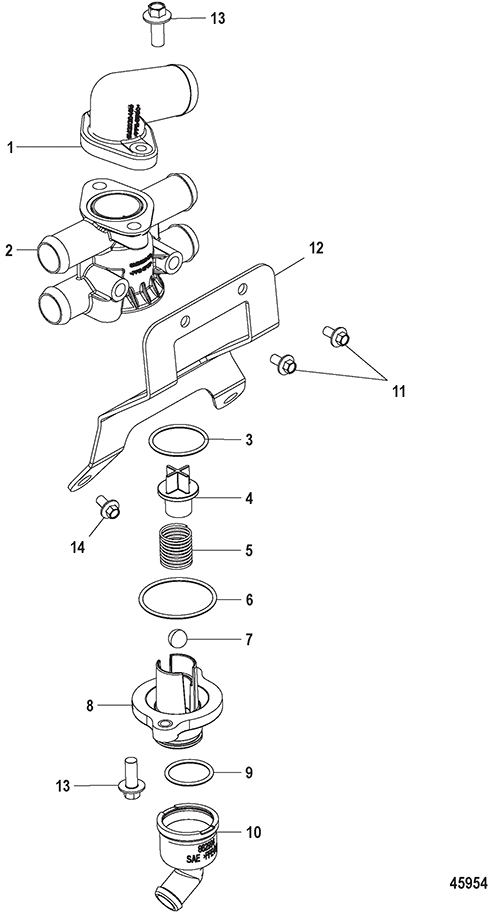

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
- 0000 OEM: 525-8M0053928 VALVE ASSEMBLY Poppet   1
1 0022 OEM: 525-22-8M2020465 FITTING   1
2 0000 OEM: 525-8M0053929 HOUSING Poppet   1
3 0025 OEM: 525-25-457101 O-RING (1.424 x .103)   1
4 0000 OEM: 525-8M2010186 POPPET   1
5 0024 OEM: 525-24-42996, GLM: 700-13824 SPRING (Stainless Steel)   1
6 0025 OEM: 525-25-30529, Sierra: 676-18-7171, GLM: 700-81360 O-RING (1.925 x .103)   1
7 0030 OEM: 525-30-863129 BALL   1
8 0000 OEM: 525-8M2019982 CAP Poppet Housing   1
9 0025 OEM: 525-25-864701 O-RING (1.112 x .103)   1
10 0000 8M2022151 FITTING   1
11 0010 OEM: 525-10-4010612 SCREW (M6 x 12) Stainless Steel   2
12 0000 OEM: 525-8M2019987 BRACKET Poppet Valve   1
13 0010 OEM: 525-10-4010618 SCREW (M6 x 18) Stainless Steel   4
14 0010 OEM: 525-10-816585 SCREW (.312-18 x .875) To Flywheel Housing   2
