250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Throttle Linkage

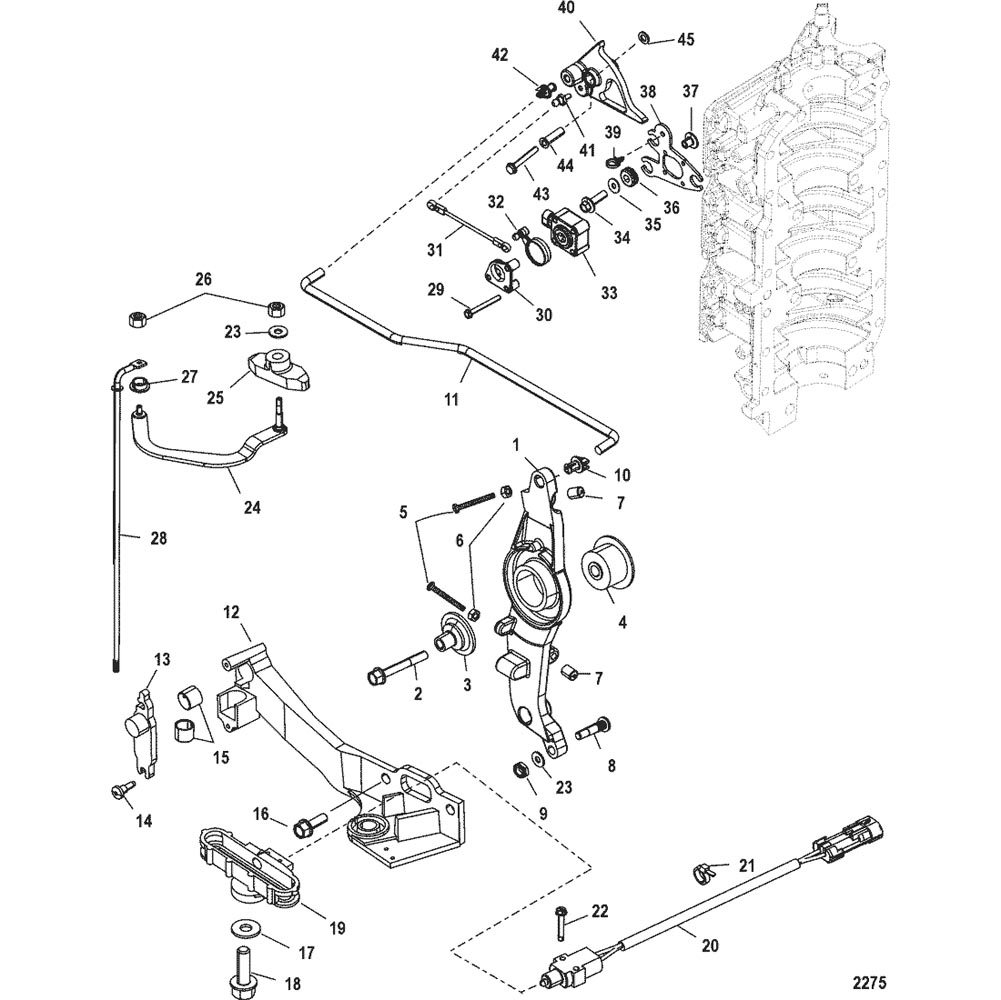

Section Drawing: (Hover or click to view larger)
