250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Air Compressor Components

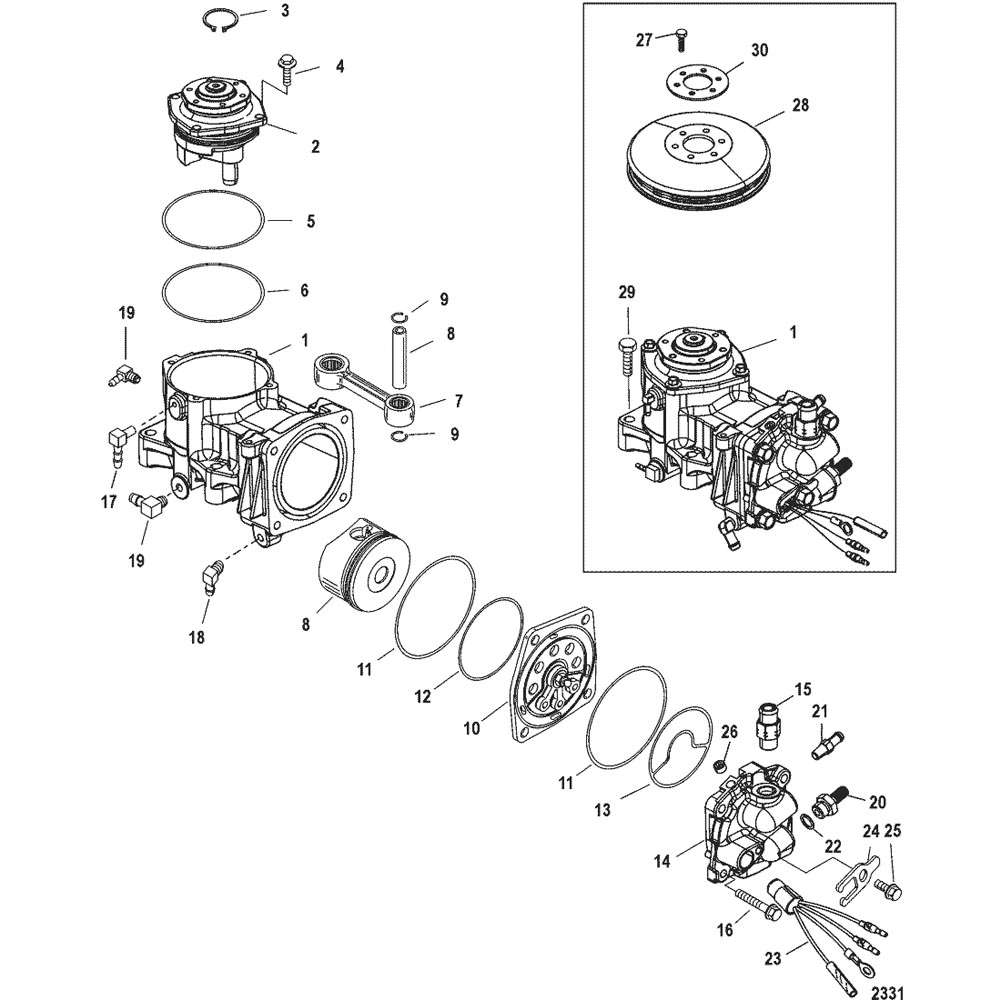

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0060051         COMPRESSOR ASSEMBLY, Air 1 828123T33
2 1173-8M0050793         END CAP ASSEMBLY 1 828131A11 No Longer Available
3 NSS         NOT SOLD SEPARATE, Snap Ring 1 Not Sold Separate
4 10-85593920         SCREW, (M6 x 20) 4
5 25-89224001         O-RING 1
6 25-67206001         O-RING 1
7 653-833146T06         CONNECTING ROD ASSEMBLY 1
8 NSS         NOT SOLD SEPARATE, Piston Assembly 1 Not Sold Separate
9 53-8348101         RING, Lock 2
10 835088A10         REED PLATE ASSEMBLY 1
11 25-67207         O-RING, (3.489 x .070) 2
12 25-832804         O-RING, (2.739 x .070) 1
13 26-828225         SEAL 1
14 835087A3         HEAD ASSEMBLY, Compressor 1
15 22-8307535         FITTING, Straight 1
16 10-82127335         SCREW, (M8 x 35 MM) 4
17 22-151331         FITTING 1
18 22-996642         FITTING, Elbow 90 Degree (.125-27 x .250) Nylon 1
19 21-428641         FITTING, Check Valve 2
20 22-856744         FITTING 1
21 22-16604         FITTING, Straight (.125-27) 1
22 25-831985         O-RING, (.468 x .078) 1
23 13536A14         SENSOR ASSEMBLY, Temperature 1
24 137151         RETAINER 1
25 10-81893414         SCREW, (M8 x 14) 1
26 22-390721         PLUG, Pipe (.125-27) Brass 1
27 10-85593912         SCREW, (M6 x 12) 6
27 10-85593920         SCREW, (M6 x 20) 6
28 8328233         PULLEY 1
28 8M0051194         PULLEY 1 843224
29 10-8M0045380         SCREW, (M8 x 50) 4 891570050
30 12-884594         WASHER 1
- 25-832804A03         O-RING KIT 1
