250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Exhaust Plate

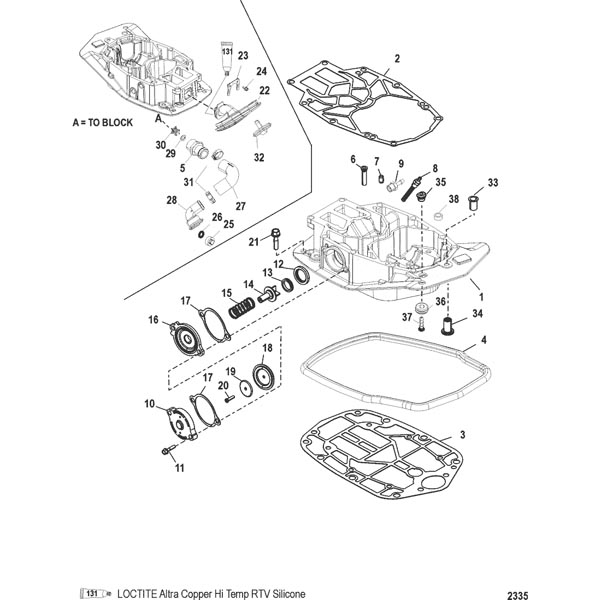

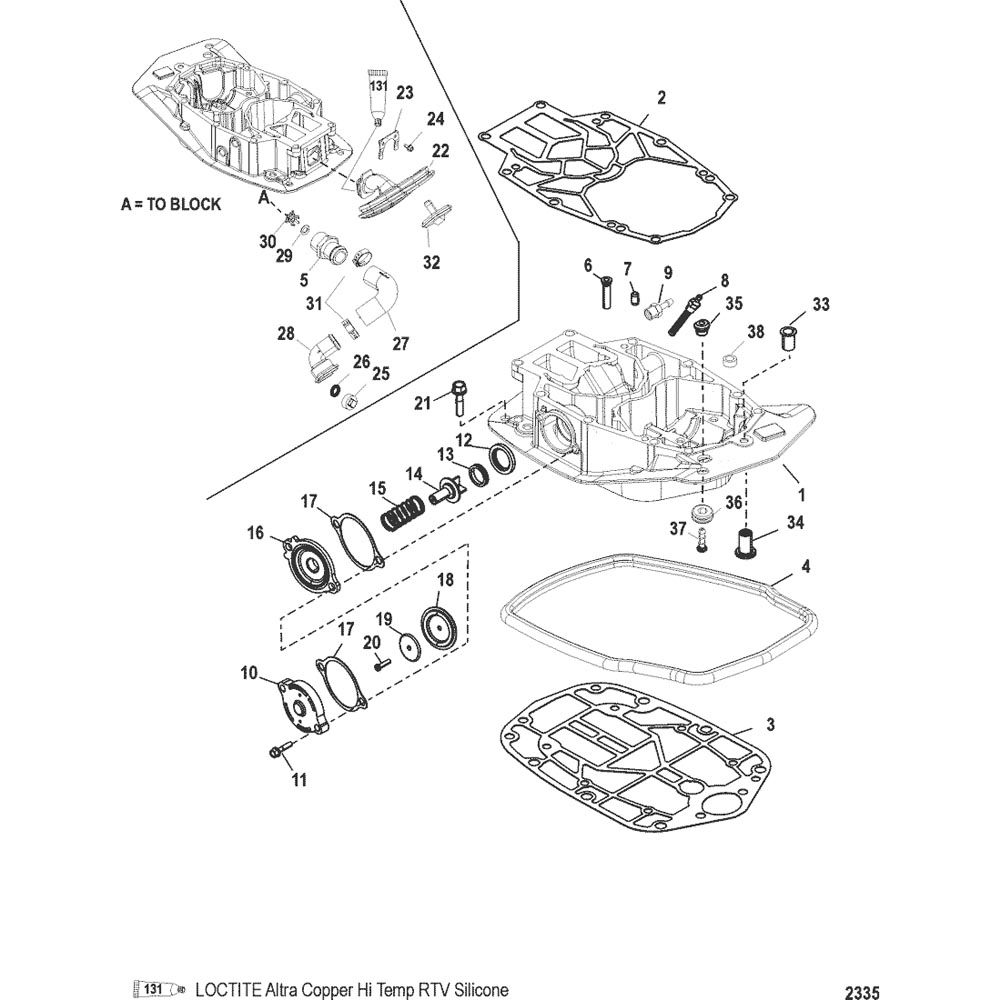

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 840192T14         PLATE ASSEMBLY, Exhaust 1 No Longer Available
2 27-832933006         GASKET 1
3 27-8329344         GASKET, Lower 1 No Longer Available
4 8M0043157         SEAL 1 8238051
5 22-8320761         FITTING, Check Valve 1
6 21-817519A1         CHECK VALVE ASSEMBLY, Drain 2
7 17-43044         PIN, Dowel - Without Hole (.375 x .625) 4
8 35-8348084         STRAINER 1
9 22-828091         FITTING 1 No Longer Available
10 65663A2         COVER ASSEMBLY 1
11 10-81893435         SCREW, (M8 x 35) 2
12 814190         CARRIER 1
13 25-814191         GROMMET 1
14 814189         POPPET 1
15 24-64878         SPRING, (Black) 1
16 65664A1         PLATE ASSEMBLY 1
17 27-88907003         GASKET 2
18 648771         DIAPHRAGM 1
19 12-76451         WASHER 1
20 10-69570         SCREW, (#10-16 x .750) 1
21 10-81893435         SCREW, (M8 x 35) 6
22 850306A04         BOOT KIT, Idle Exhaust 1
23 888910         PLATE 1
24 10-82239312         SCREW, (M5 x 12) 2
25 19-821908         PLUG 1
26 12-821915         WASHER 1
27 32-859626A1         FLUSH HOSE KIT, Inlet 1
28 22-8596001         FITTING 1
29 25-30641         O-RING, (.299 x .103) 1
30 8219631         CHECK VALVE 1
31 54-850896         CLAMP, (28.6) 2
32 8M0077650         FITTING, Tell-Tale 1 821904
33 23-48237         BUSHING 1
34 43585         COUPLING 1
35 25-12602002         GROMMET 1 126021
36 25-822002         GROMMET 1
37 22-94848         FITTING 1
38 23-840193         SPACER 2
- 27-841220A03         GASKET SET, Powerhead 1
