250XS 3.0L DFI - Serial 0T818043 Thru 0T997973 - Gear Housing, Driveshaft - TorqueMaster

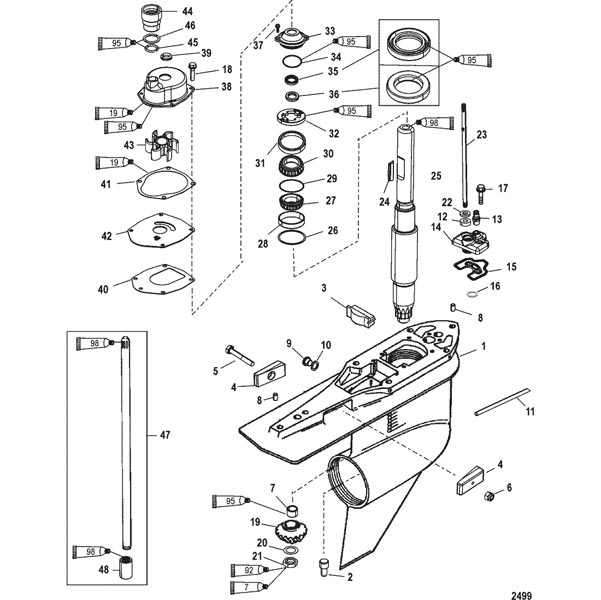

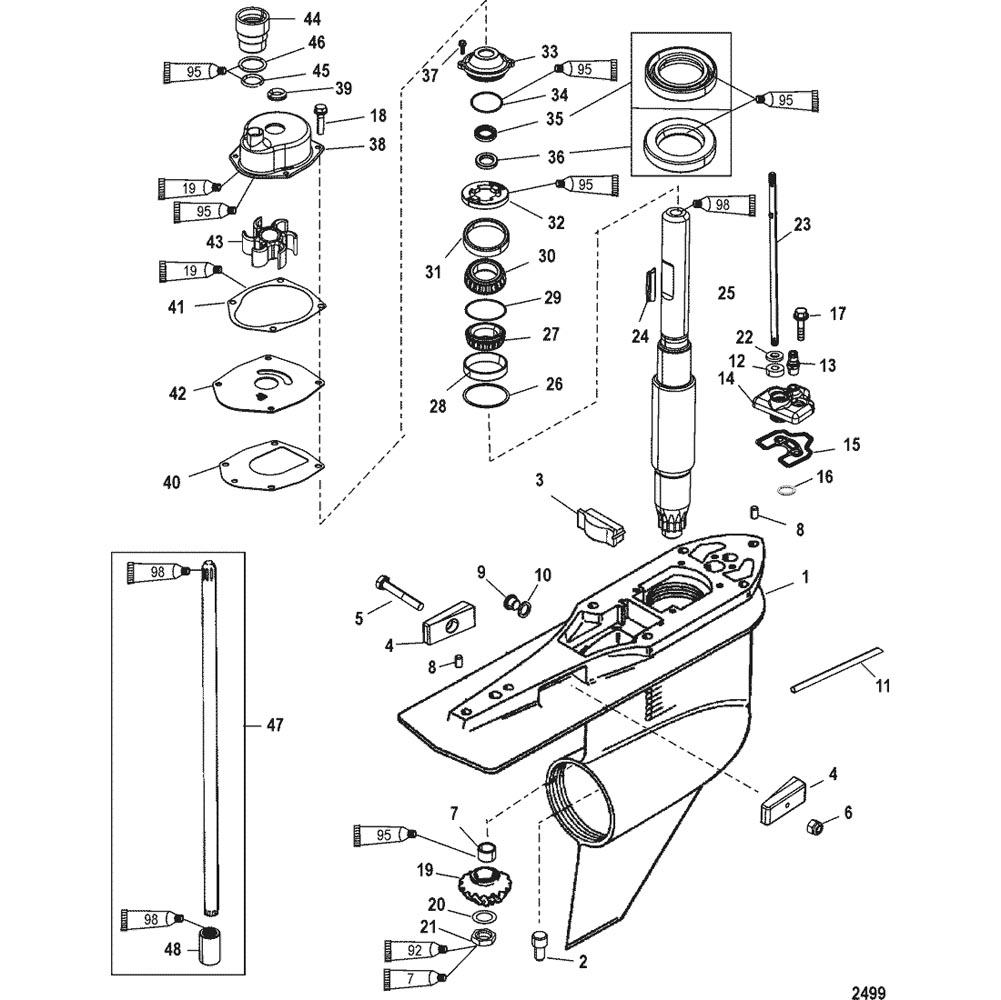

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1689-840470T27         GEAR HOUSING ASSEMBLY, Complete (1.62:1) 1 840470T9
- 1689-840470T8         GEAR HOUSING ASSEMBLY, Complete (1.75:1) 1 No Longer Available
1 1689-840470T5         GEAR HOUSING ASSEMBLY, Basic, Basic 1
2 17-379721         PIN 1
3 821526001         FILLER BLOCK 1 821526
4 97-826134Q         ANODE 2
5 10-4000333         SCREW, (M6 x 40) 1
6 11-401386         NUT, (M6) Stainless Steel 1
7 31-42647A1         BEARING ASSEMBLY, Roller 1
8 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
9 10-79953Q04         SCREW KIT, (.375-16 x .250) Drain 1 79953Q2
10 12-191833         SEAL 1
11 859402         PITOT TUBE 1
12 26-8164641         SEAL, Oil 1
13 22-881866         FITTING 1
14 858934         COVER 1
15 27-858935         GASKET 1
16 25-36318         O-RING, (.799) 2
17 10-82130016         SCREW, (M6 x 16) 2
18 10-82130016         SCREW, (M6 x 16) 4
19 NSS         Pinion Gear(Part of 43-828168T3 or 43-878087A6) 1 Not Sold Separate
20 12-92721         WASHER 1
21 11-35921         NUT, (.625-18) 1
22 12-77674         WASHER 1
23 824145         SHIFT SHAFT, Lower 1
24 28-8M0032833         KEY 1 43037
25 45-848831         DRIVESHAFT 1
26 15-38657A1         SHIM ASSEMBLY AR No Longer Available
27 31-48939A2         BEARING, Tapered Roller 1
28 NSS         Cup 1 Not Sold Separate
29 15-42637A1         SHIM SET AR No Longer Available
30 31-36387A1         BEARING ASSEMBLY, Roller/Cup 1
31 NSS         Cup 1 Not Sold Separate
32 8245191         RETAINER 1
33 840836A2         CARRIER ASSEMBLY 1
34 25-896523         O-RING, (2.175 x .175) 1 90011
35 26-66302         SEAL, Oil 1
36 26-66302         SEAL, Oil 1
37 10-82130016         SCREW, (M6 x 16) 2
38 817275A1         HOUSING KIT, Water Pump 1
39 26-816575A2         SEAL KIT 1
40 27-430331         GASKET 1
41 27-8172771         GASKET 1
42 8172761         FACEPLATE 1
43 47-43026T2         IMPELLER 1
44 832942A1         COUPLING ASSEMBLY 1
45 25-21836         O-RING, (.796 x .139) 1
46 25-35027         O-RING, (1.046) 1
47 45-8488321         DRIVESHAFT, Long 1
48 823902         COUPLING 1
- 26-816575A4         SEAL KIT, Gear Housing 1
- 817275A5         REBUILD KIT, Water Pump 1
