Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Power Trim Cylinder Repair Kits

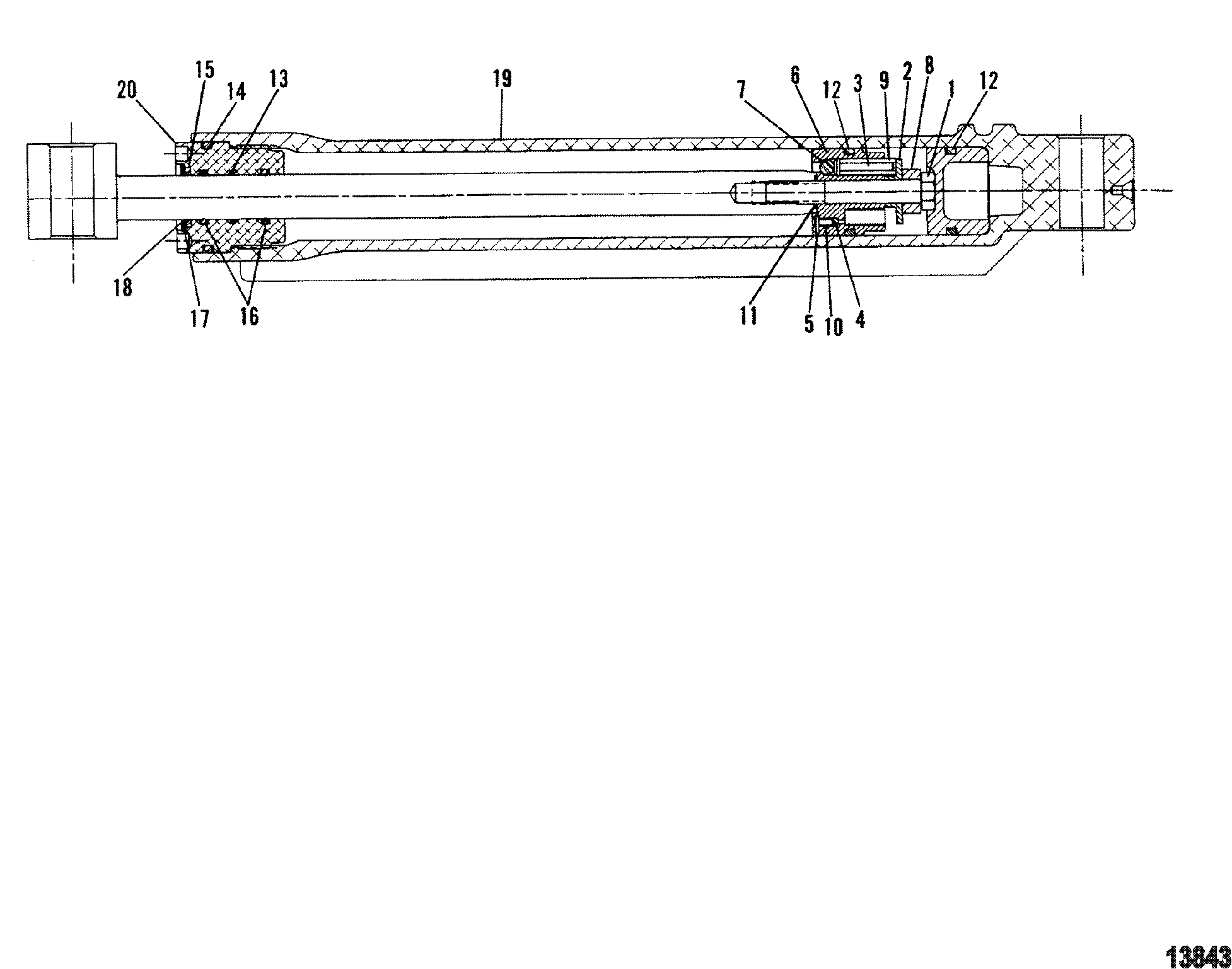

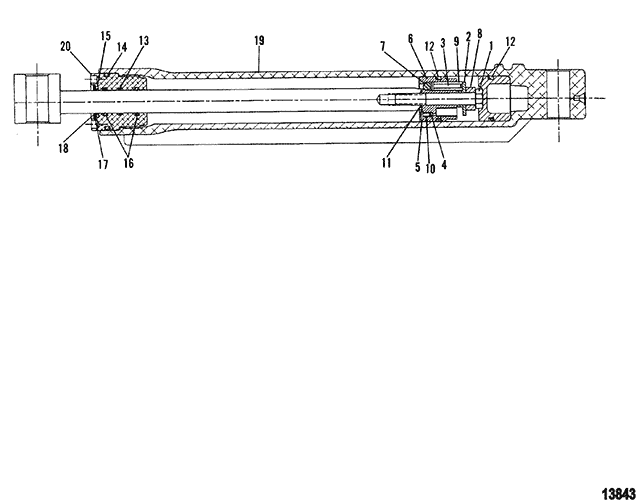

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: Do Not Substitute O-Rings As These Are Of Special Manufactured Materal | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 87399A3 | OVERHAUL KIT | 1 | ||||||
| 1 | NSS | NOT SOLD SEPARATE, Screw | 1 | This Part is not sold separately 1 | |||||
| 2 | NSS | NOT SOLD SEPARATE, Spring Seat | 1 | This Part is not sold separately 1 | |||||
| 3 | NSS | NOT SOLD SEPARATE, Valve Seat | 3 | This Part is not sold separately 1 | |||||
| 4 | NSS | NOT SOLD SEPARATE, Steel Ball (.109 Diameter) | 1 | This Part is not sold separately 1 | |||||
| 5 | NSS | NOT SOLD SEPARATE, Spring Pin | 1 | This Part is not sold separately 1 | |||||
| 6 | NSS | NOT SOLD SEPARATE, Shock Piston | 1 | This Part is not sold separately 1 | |||||
| 7 | NSS | NOT SOLD SEPARATE, Steel Ball (.250 Diameter) | 3 | This Part is not sold separately 1 | |||||
| 8 | NSS | NOT SOLD SEPARATE, Spacer | 1 | This Part is not sold separately 1 | |||||
| 9 | NSS | NOT SOLD SEPARATE, Compression Spring | 3 | This Part is not sold separately 1 | |||||
| 10 | NSS | NOT SOLD SEPARATE, Spring | 1 | This Part is not sold separately 1 | |||||
| - | 25-87400A2 | SEAL KIT | 1 | ||||||
| 11 | NSS | NOT SOLD SEPARATE, O-Ring | 1 | This Part is not sold separately 1 | |||||
| 12 | NSS | NOT SOLD SEPARATE, O-Ring | 2 | This Part is not sold separately 1 | |||||
| 13 | NSS | NOT SOLD SEPARATE, Spring | 2 | This Part is not sold separately 1 | |||||
| 14 | NSS | NOT SOLD SEPARATE, O-Ring | 1 | This Part is not sold separately 1 | |||||
| 15 | NSS | NOT SOLD SEPARATE, Scraper Rod | 1 | This Part is not sold separately 1 | |||||
| 16 | NSS | NOT SOLD SEPARATE, O-Ring | 2 | This Part is not sold separately 1 | |||||
| 17 | NSS | NOT SOLD SEPARATE, Washer | 1 | This Part is not sold separately 1 | |||||
| 18 | NSS | NOT SOLD SEPARATE, Retaining Ring | 1 | This Part is not sold separately 1 | |||||
| 18 | 815935T | TUBE, Port Cylinder | 1 | ||||||
| 19 | 815954T | TUBE, Starboard Cylinder | 1 | ||||||
| 20 | 806191T | CAP, Rod End | 2 | ||||||
