Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Oil Reservoir Components (Square Oil Bottle)

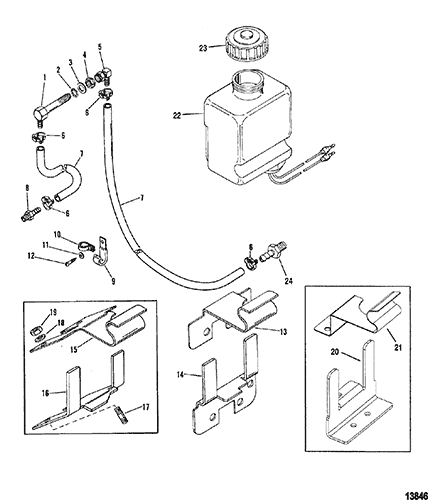

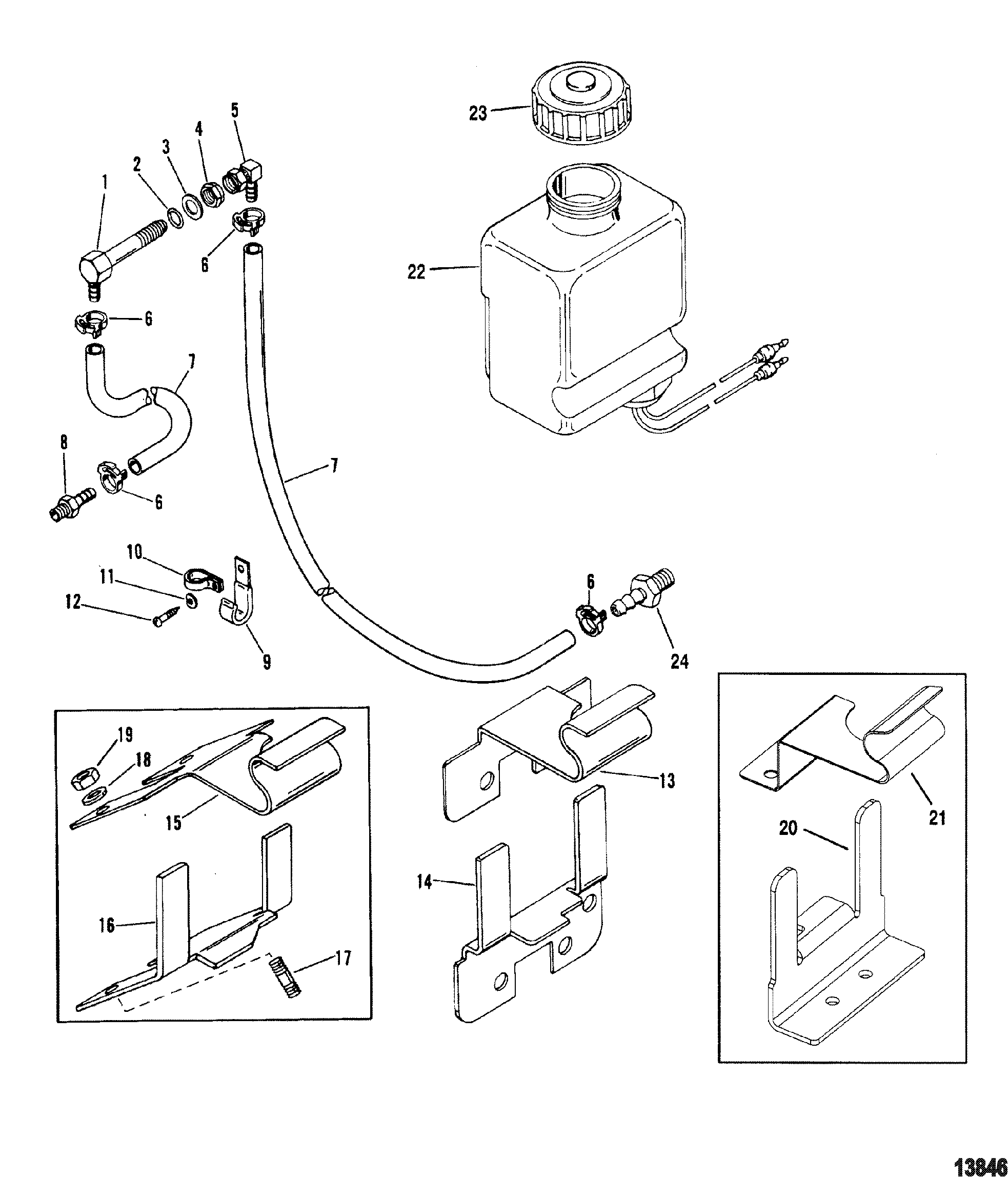

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: Square Oil Bottle | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-18922 | CONNECTOR | 1 | ||||||
| 2 | 25-201951 | O-RING | 1 | 25-20195 | |||||
| 3 | 12-861854 | WASHER | 1 | 12-91964 | |||||
| 4 | 11-35053 | NUT, (.437-20) | 1 | ||||||
| 5 | 22-18923 | FITTING | 1 | ||||||
| 6 | 54-415825 | CLAMP, Nylon | 4 | ||||||
| 7 | 32-8M0062600 | HOSE, (54.00 Inches Bulk) | 2 | 32-1940971 | |||||
| 8 | 22-16739 | CONNECTOR | 1 | ||||||
| 9 | 54-642351 | J CLIP | 1 | ||||||
| 10 | 54-23567 | CLIP | 1 | ||||||
| 11 | 10-60605 | SCREW, (#10-16 x .750) | 1 | ||||||
| 12 | 69205 | C WASHER | 1 | ||||||
| 13 | 806293T | BRACKET, Clip | 1 | (3.0L/3.0LX) | |||||
| 14 | 860065A1 | BRACKET | 1 | 807024T | (3.0L/3.0LX) | ||||
| 15 | 806292T1 | BRACKET | 1 | 806292T | (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) | ||||
| 16 | 807025T | BRACKET | 1 | (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) | |||||
| 17 | 16-805357 | STUD, (.375-16 x 2.130) | 2 | (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) | |||||
| 18 | 12-20553 | WASHER, (.406 x .734 x .063) | 2 | (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) | |||||
| 19 | 11-32219 | NUT, (.375-16) | 2 | (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum) | |||||
| 20 | 806649T | BRACKET | 1 | (262 Magnum (TBI) (GEN+) And (5.7L/LX (TBI) And 350 Magnum (TBI) (GEN+)) | |||||
| 21 | 806650T | BRACKET | 1 | This Part is No Longer Available (262 Magnum (TBI) (GEN+) And (5.7L/LX (TBI) And 350 Magnum (TBI) (GEN+)) | |||||
| 22 | 806193A51 | RESERVOIR ASSEMBLY, Oil | 1 | 806193A3 | |||||
| 23 | 36-8067271 | CAP, Drive Lube Monitor, Oil Bottle | 1 | 36-808625 | |||||
| 24 | 22-808624 | CONNECTOR | 1 | ||||||
