Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Gear Housing, Driveshaft - Standard Rotation

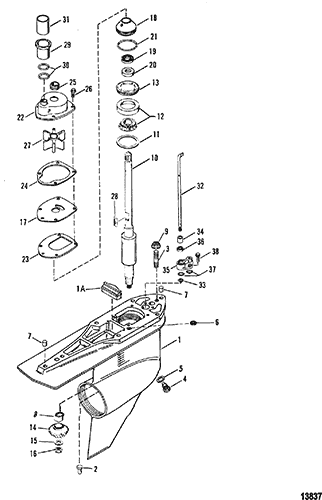

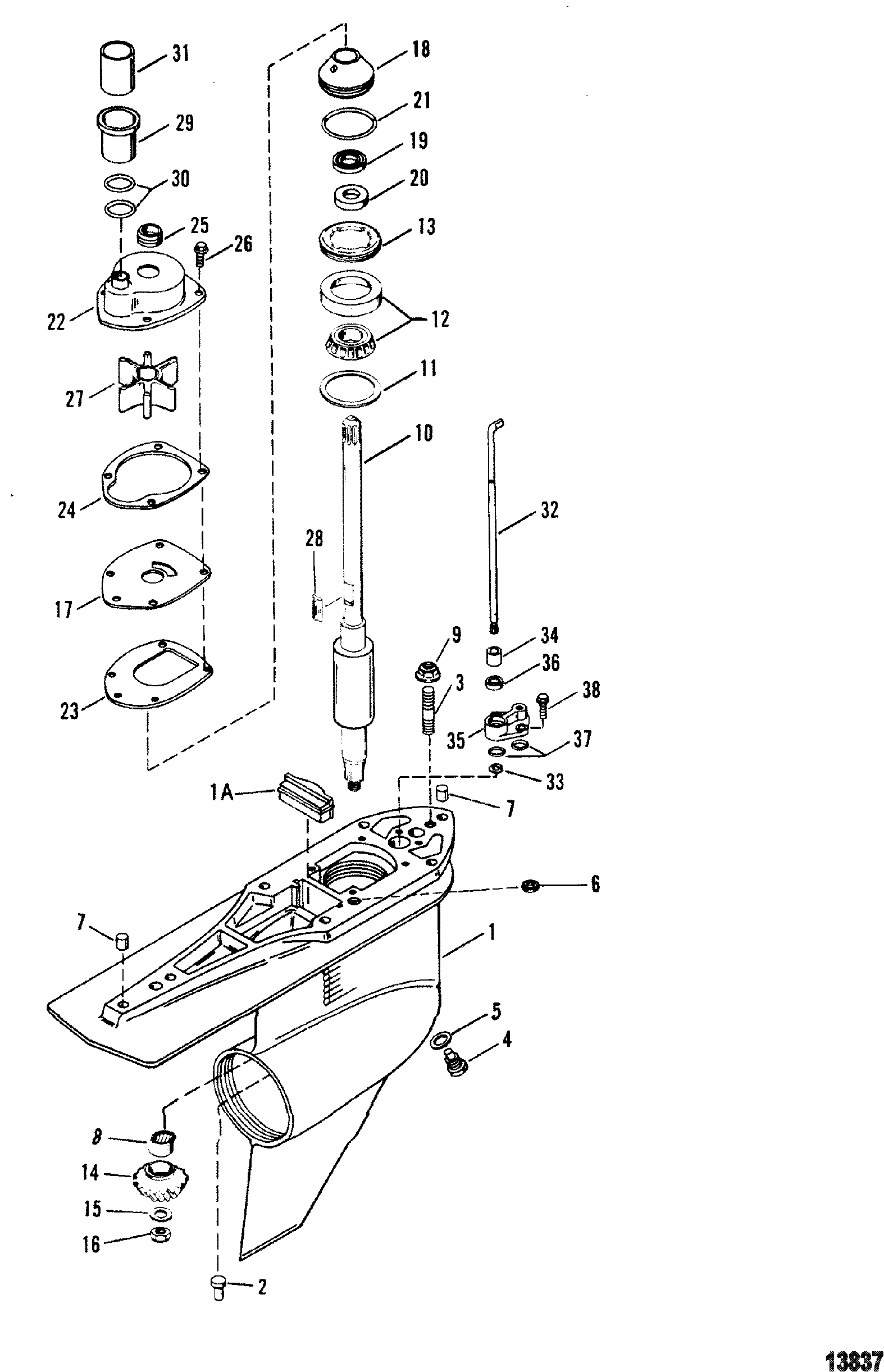

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1623-815822A53 | GEAR HOUSING ASSEMBLY, Complete | 1 | 1623-815822A5 | |||||
| 1 | 1623-815822A30 | GEAR HOUSING ASSEMBLY | 1 | ||||||
| 1A | 821526001 | FILLER BLOCK | 1 | 821526 | |||||
| 2 | 17-379721 | PIN | 1 | ||||||
| 3 | 16-57984 | STUD, (.437-14/.437-20 x 2.380) | 1 | ||||||
| 4 | 22-8M0058389 | 700-21731 | 525-22-8M0058389 | SCREW | 1 | 10-14834A1 | |||
| 5 | 12-191833 | 525-12-191833 | WASHER, Fiber | 1 | 12-19183 | 4,5,6 | |||
| 5 | 25-805726 | 676-9-76578 | O-RING, Rubber | 1 | 4,5,6 | ||||
| 6 | 26-455771 | 525-26-455771 | SEAL | 1 | 26-45577 | 4,5 | |||
| 7 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 8 | 31-42647A1 | 676-9-75121 | 700-21610 | BEARING ASSEMBLY, Roller | 1 | ||||
| 9 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 1 | 11-817618 | ||||
| 10 | 45-816919 | DRIVESHAFT | 1 | (1.50:1 And 1.65:1 Ratio) | |||||
| 10 | 45-816472 | DRIVESHAFT | 1 | (1.84, 1.98, And 2.40 Ratio) | |||||
| 11 | 15-8M0063267 | SHIM SET | AR | 15-42637A1 | |||||
| 12 | 31-36387A1 | 676-9-75107 | 700-21580 | BEARING, Roller | 1 | ||||
| 13 | 8245191 | 676-9-78126 | RETAINER | 1 | 824519 | ||||
| 14 | 43-878087A4 | 700-11312 | GEAR SET, Standard (17/28 Teeth) | 1 | 43-17064A3 | (Includes Pinion/Forward Gears) | |||
| 14 | 43-13730A1 | GEAR SET (2.40 Ratio) (14/28 Teeth) | 1 | (Includes Pinion/Forward/Reverse Gears) | |||||
| 15 | 12-92721 | 676-9-78108 | 700-32800 | WASHER | 1 | ||||
| 16 | 11-35921 | 676-9-78103 | 700-11190 | NUT, (.625-18) | 1 | ||||
| 17 | 8172761 | FACEPLATE | 1 | 817276 | 4 | ||||
| 18 | 807929A1 | 676-9-72642 | 700-12341 | CARRIER ASSEMBLY | 1 | 821759A2 | 4 | ||
| 19 | 26-16977 | 676-9-76108 | 700-85040 | SEAL, Oil | 1 | 4,5 | |||
| 20 | 26-89238 | 676-9-76109 | 700-85070 | SEAL, Oil | 1 | 4,5 | |||
| 21 | 25-896523 | 700-81395 | O-RING, (2.175 x .175) | 1 | 25-90011 | 4,5 | |||
| 22 | 817275A1 | 676-9-48314 | 700-12415 | PUMP ASSEMBLY, Water | 1 | impeller not included 4 | |||
| 23 | 27-430331 | GASKET | 1 | 4 | |||||
| 24 | 27-8172771 | GASKET | 1 | 27-817277 | 4 | ||||
| 25 | 26-816575A2 | SEAL KIT | 1 | seal tool not included 4,5 | |||||
| 26 | 10-816928 | SCREW, (M6 x 16) | 4 | ||||||
| 27 | 47-43026T2 | IMPELLER | 1 | 47-430262 | 4 | ||||
| 28 | 28-8M0032833 | KEY | 1 | 28-43037 | 4 | ||||
| 29 | 816597A1 | COUPLING ASSEMBLY | 1 | ||||||
| 30 | 25-21836 | 676-9-76565 | O-RING, (.796 x .139) | 2 | 4,5 | ||||
| 31 | 23-816583 | 700-12825 | SLEEVE | 1 | |||||
| 32 | 815919A1 | SHIFT SHAFT, Lower | 1 | ||||||
| 33 | 53-29641 | 700-21136 | E RING | 1 | |||||
| 34 | 23-67370 | SLEEVE | 1 | ||||||
| 35 | 23-815921A21 | 700-21015 | BUSHING ASSEMBLY | 1 | 23-815921A8 | ||||
| 36 | 26-8164641 | SEAL, Oil | 1 | 5 | |||||
| 37 | 25-36318 | O-RING, (.799) | 2 | 5 | |||||
| 38 | 10-816928 | SCREW, (M6 x 16) | 2 | ||||||
| - | 817275Q05 | REBUILD KIT, Water Pump | 1 | 817275A4 | |||||
| - | 26-816575A3 | SEAL KIT, Gear Housing | 1 |
