Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Gear Housing, Propeller Shaft - Counter Rotation

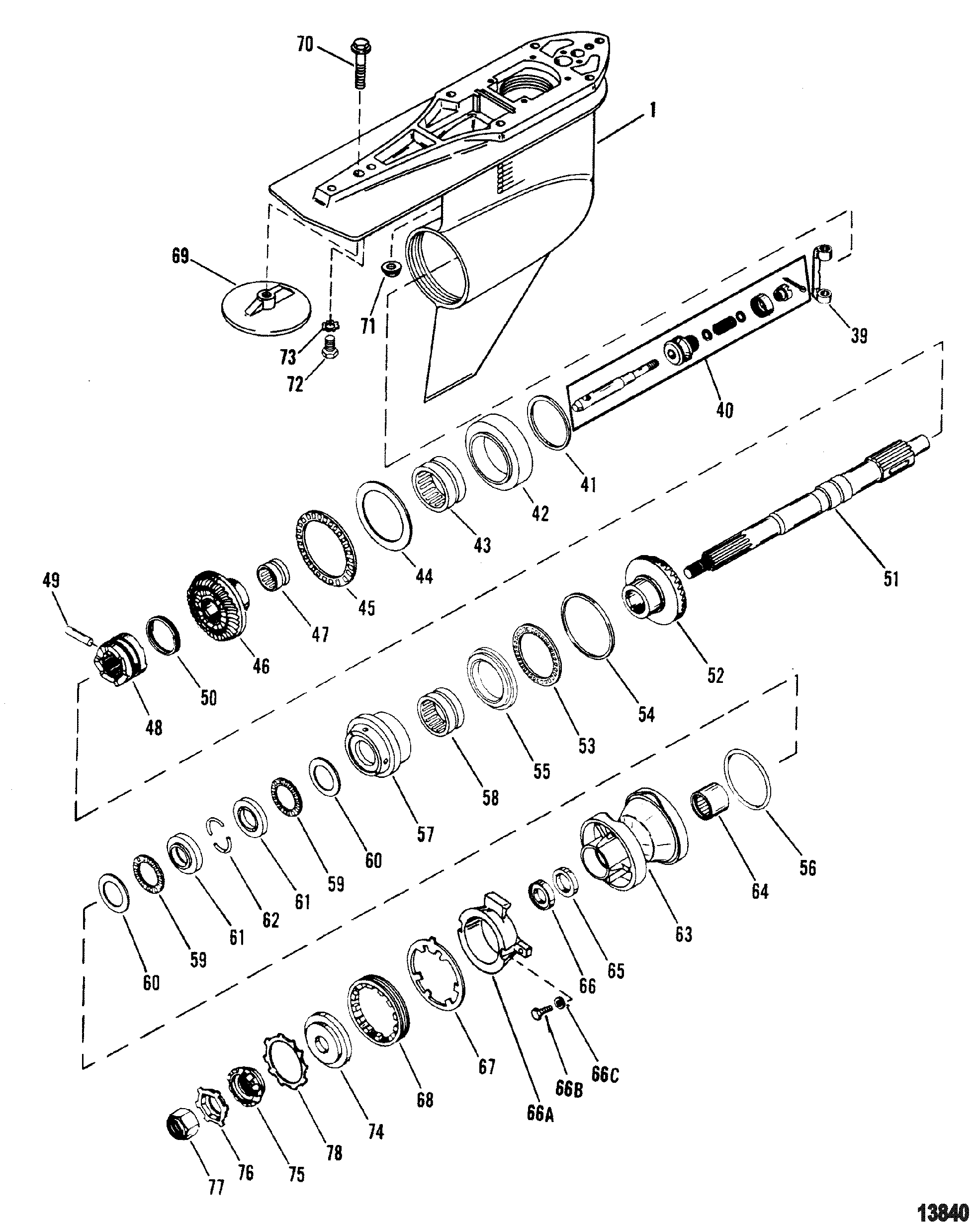

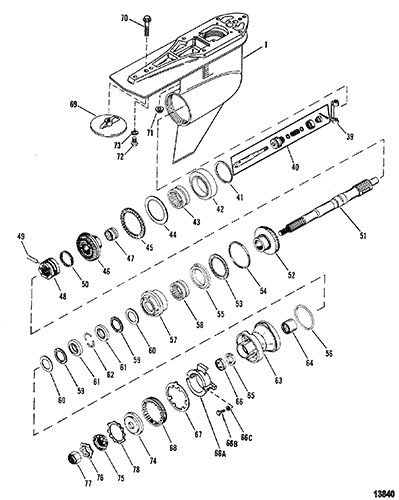

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1623-815822A47         GEAR HOUSING ASSEMBLY, Complete 1 1623-815822A7
1 1623-815822A28         GEAR HOUSING ASSEMBLY 1

39 76865   676-9-78132 700-11040   CRANK, Shift 1

40 818349T1   676-9-78133 700-11030   SHIFT SPOOL KIT 1 19755A2
41 15-47397A1     700-23220   SHIM SET AR
3
42 815362T1         ADAPTOR ASSEMBLY, Bearing 1 815362A1
42 828830A2         ADAPTOR ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.) 1

43 31-814653T         BEARING ASSEMBLY, Needle Rollers 1 31-814653
44 12-815481         THRUST WASHER 1

45 31-815480         BEARING, Thrust 1

46 43-824700T1         GEAR ASSEMBLY, Reverse 1 43-824700A1 This Part is No Longer Available
47 31-815482         BEARING, Roller 1

48 52-853594T   676-9-73474 700-11060   SLIDING CLUTCH 1 52-824112
49 17-30632   676-9-78111 700-21131   PIN, Cross 1
No longer made, limited availability
50 24-30893   676-9-78135 700-11050   SPRING 1

51 44-8146061         PROPELLER SHAFT 1

51 44-824111         PROPELLER SHAFT (Used In Generation II Service Replacement Gear Housings.) 1

52 NSS         NOT SOLD SEPARATE, Foward Gear (See Previous Assemlby - Reference #14) 1
This Part is not sold separately
53 31-15841         BEARING, Roller 1

54 23-1761514         SPACER SHIM , (.206) AR
3
54 23-1761515         SPACER SHIM , (.208) AR
3
54 23-1761516         SPACER SHIM, (.210) AR
3
54 23-1761517         SPACER SHIM, (.212) AR
3
54 23-1761518         SPACER SHIM, (.214) AR
3
54 23-1761519         SPACER SHIM, (.216) AR
3
54 23-1761520         SPACER SHIM, (.218) AR
3
54 23-1761521         SPACER SHIM, (.220) AR
3
54 23-1761522         SPACER SHIM, (.222) AR
3
54 23-1761523         SPACER SHIM, (.224) AR
3
54 23-1761524         SPACER SHIM, (.226) AR
3
54 23-1761525         SPACER SHIM, (.228) AR
3
54 23-1761526         SPACER SHIM, (.230) AR
3
55 12-17616         THRUST RING 1

55 12-815481         THRUST WASHER (Used In Generation II Service Replacemtn Gear Housings.) 1

56 25-31534   676-9-76544   525-25-31534 O-RING 1
5
57 814604T1         ADAPTOR ASSEMBLY, Bearing 1 814604A1 This Part is No Longer Available
57 828831A3         ADAPTOR ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.) 1

58 31-814653T         BEARING ASSEMBLY, Needle Rollers 1 31-814653
59 31-15842         BEARING, Thrust 2

60 12-18448         THRUST WASHER 2

61 815570         THRUST RACE 2   This Part is No Longer Available
62 814605         KEEPER 2

63 14587A7         CARRIER ASSEMBLY, Bearing 1

63 818290A6         CARRIER ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.) 1

64 31-30956T         BEARING, Needle 1 31-30956
65 26-14077   676-9-76119 700-85130   SEAL, Oil, Inside 1
5
66 26-12224   676-9-76101 700-85700   SEAL, Oil, Outside 1
5
66A 806105Q1     700-12702   ANODE ASSEMBLY 1 806105A1
66B 10-806290     700-12832 525-10-806290 SCREW, (#10-32 x .625) 2

66C 13-69432

700-21491 525-13-69432 LOCKWASHER, External (#10) 2

67 14-18323   676-9-72640   525-14-18323 TAB WASHER 1

68 8M2011027     700-21120 525-8M2011027 RETAINER 1 79448
69 76214Q5     700-12710 525-76214Q5 ANODE KIT 1 76214A5
69 31640Q4     700-12670   TRIM TAB (1.98:1 Ratio Only) 1 316404
70 10-806327     700-21741 525-10-806327 SCREW, (.437-14 x 1.750) 1

71 11-859135   676-9-78116     NUT, (.437-20) 4 11-817618
72 10-65210       525-10-65210 SCREW, (.375-16 x 1.00) 1

73 13-35479       525-13-35479 LOCKWASHER, (.375) 1

74 12-835467Q01     700-21301   THRUST HUB 1 13171
75 12-31211Q03     700-21360   WASHER, Splined 1 12-31211A2
76 14-816629Q     700-21200   TAB WASHER 1 14-816629
77 11-52707Q1   676-9-73960 700-21250 525-11-52707Q1 PROP NUT KIT, (.750-16) 1 11-52707A1
78 13-423511         LOCKWASHER, Toothed 1
- 26-816575A3   676-9-74206 700-87511   SEAL KIT, Gear Housing 1
