Alpha One (Gen. II) 1991-1995 - Serial 0D469859 Thru 0F679999 - Gimbal Housing

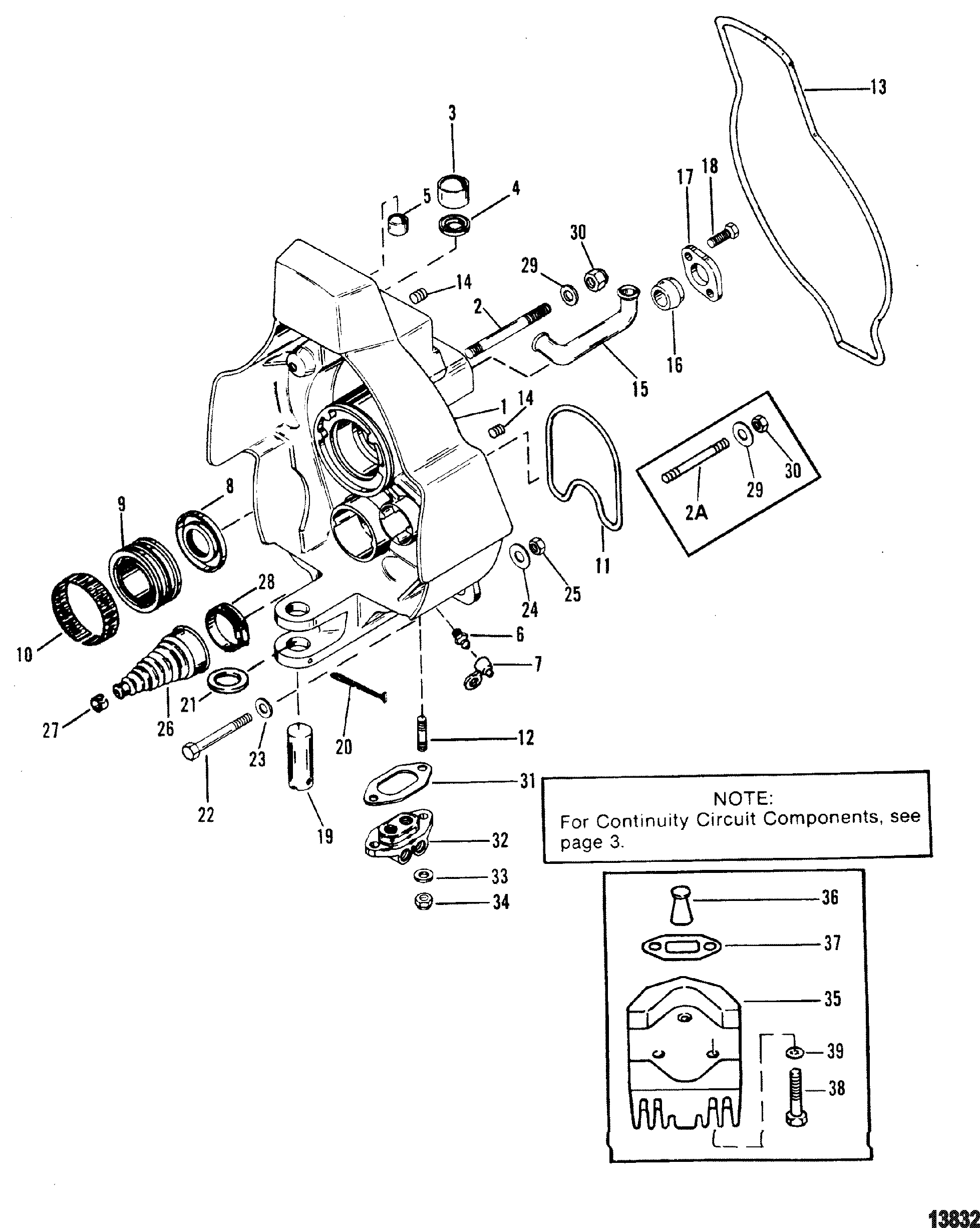

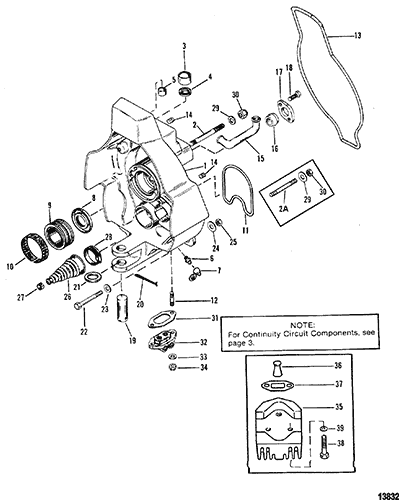

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Drive Shaft Housing And Drive Gears
- Drive Shaft Housing And Drive Shaft
- Drive Unit Chart
- Gear Housing, Driveshaft - Counter Rotation
- Gear Housing, Driveshaft - Standard Rotation
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercthode Kit
- Oil Reservoir Components (Round Oil Bottle)
- Oil Reservoir Components (Square Oil Bottle)
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0062568 | GIMBAL HOUSING ASSEMBLY | 1 | 43881A11 | |||||
| 2 | 16-56296 | STUD, (.437-20 x 4.750) | 6 Or 4 | ||||||
| 2A | 16-818834 | STUD, (.437-20 x 4.250), New Design | 2 | ||||||
| 3 | 23-983571 | BUSHING, Lower | 1 | ||||||
| 4 | 26-8M2005029 | SEAL, Oil | 1 | 26-416071 | |||||
| 5 | 23-98356 | BUSHING, Upper | 1 | ||||||
| 6 | 22-74036 | FITTING, Grease | 1 | (Use with greased bearing) | |||||
| 6 | 8M2015913 | PLUG, (.250-28 x .320) | 1 | (Use with non-greased bearing) | |||||
| 7 | 19-77633Q | LUBRICAP | 1 | 19-77633 | |||||
| 8 | 26-88416 | 676-9-76230 | 700-85910 | SEAL, Oil | 1 | ||||
| 9 | 879194A02 | BEARING ASSEMBLY | 1 | 30-60794A4 | |||||
| 10 | 61075 | 700-21851 | TOLERANCE RING | 1 | |||||
| 11 | 41802 | SEAL, Rubber, Exhaust Pipe | 1 | ||||||
| 12 | 16-56766 | STUD, (.250-20/.250-28 x 1.380) | 2 | ||||||
| 13 | 43713 | 676-9-72420 | 700-86711 | SEAL | 1 | ||||
| 14 | 22-73379 | 700-22379 | PLUG, (.250-18) | 1 | |||||
| 15 | 32-416721 | TUBE, Water | 1 | ||||||
| 16 | 23-8165991 | BUSHING | 1 | 23-816599 | |||||
| 17 | 8M0046322 | COVER | 1 | 41673 | |||||
| 18 | 10-28636 | SCREW, (.250-20 x .750) | 2 | ||||||
| 19 | 17-8M0073409 | SWIVEL PIN, Lower | 1 | 17-99353 | |||||
| 20 | 18-54929 | COTTER PIN | 1 | ||||||
| 21 | 12-32518 | WASHER | 1 | ||||||
| 22 | 10-43691 | BOLT, (.500-13 x 4.00) | 2 | (Old Design) | |||||
| 23 | 12-32620 | WASHER | 2 | (Old Design) | |||||
| 24 | 12-21900 | WASHER | 2 | (Old Design) | |||||
| 25 | 11-34087 | NUT | 2 | (Old Design) | |||||
| 26 | 74639A2 | BELLOWS ASSEMBLY | 1 | ||||||
| 27 | 54-866507 | 676-9-73115 | 700-21790 | CLAMP | 1 | 54-38863 | |||
| 28 | 54-815504320 | CLAMP, Worm Gear | 1 | ||||||
| 29 | 12-34567 | WASHER | 6 Or 8 | ||||||
| 30 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 6 Or 8 | |||||
| 31 | 27-988231 | GASKET | 1 | ||||||
| 32 | 8M0080805 | MANIFOLD ASSEMBLY | 1 | 98825A4 | |||||
| 33 | 13-78968 | LOCKWASHER, Internal (.250) | 2 | ||||||
| 34 | 11-8267119 | NUT, (.250-28) | 2 | 11-13438 | |||||
| 35 | 821631Q1 | ANODE ASSEMBLY | 1 | 821631A1 | |||||
| 36 | 12077 | SEAL | 1 | ||||||
| 37 | 27-995061 | GASKET | 1 | ||||||
| 38 | 10-86885 | SCREW, (.250-20 x 1.500) Stainless Steel | 2 | ||||||
| 39 | 13-78968 | LOCKWASHER, Internal (.250) | 2 | ||||||
| - | 22-88847A1 | PLUG KIT, Access Hole | 1 | (Contains All Necessary Parts To Allow Removal Of Swivel Shaft With Out Removing Gimbal Housing) |
