454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Thermostat Housing (Standard Cooling)

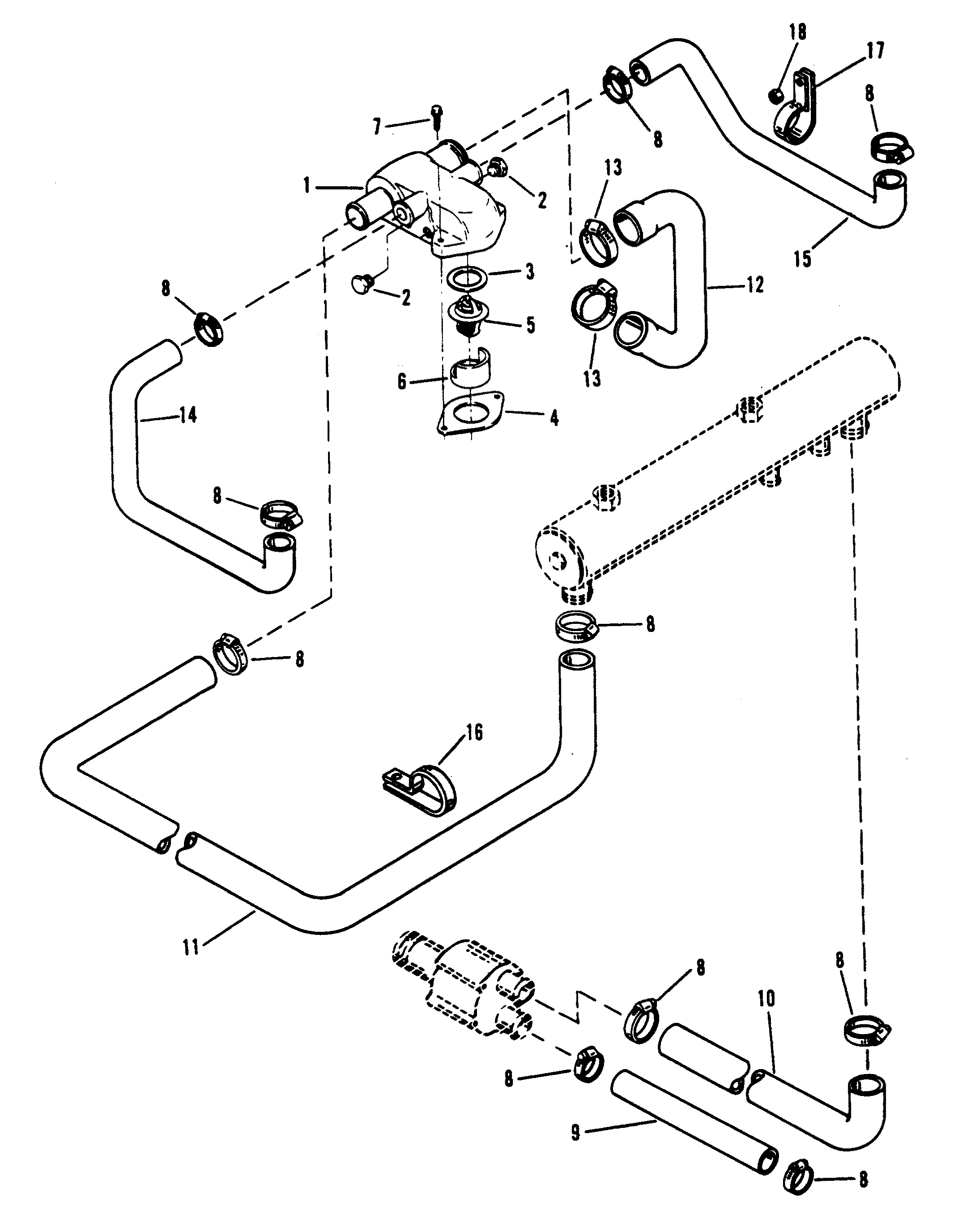

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # SEI # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806235A1



THERMOSTAT HOUSING ASSEMBLY 1

2 22-32803

700-21894
PIPE PLUG 2

3 27-806871



GASKET 1
1
4 27-530451



GASKET 1
1
5 807252T2



THERMOSTAT 1 8052732
6 23-806922



SLEEVE 1

7 10-98794 602-98-102-35 676-9-78129 700-28300 525-10-98794 SCREW 2

8 54-815504220



CLAMP AR

9 32-865672079



HOSE-SEA PUMP TO DRIVE UNIT 1 32-1743579
10 32-821418



HOSE-OIL COOLER TO SEA PUMP 1

11 32-160111



HOSE-OIL COOLER TO THERMOSTAT HOUSING 1

12 32-897183



HOSE-THERMOSTAT HOUSING TO WATER PUMP 1

13 54-815504232



CLAMP 2

14 32-897491



HOSE-THERMOSTAT HOUSING (PORT) 1

15 32-807201



HOSE-THERMOSTAT HOUSING (STARBOARD) 1

16 54-47715



CLIP 1
17 54-806616



CLAMP 1
18 11-22024



NUT 1
