454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Audio Warning System

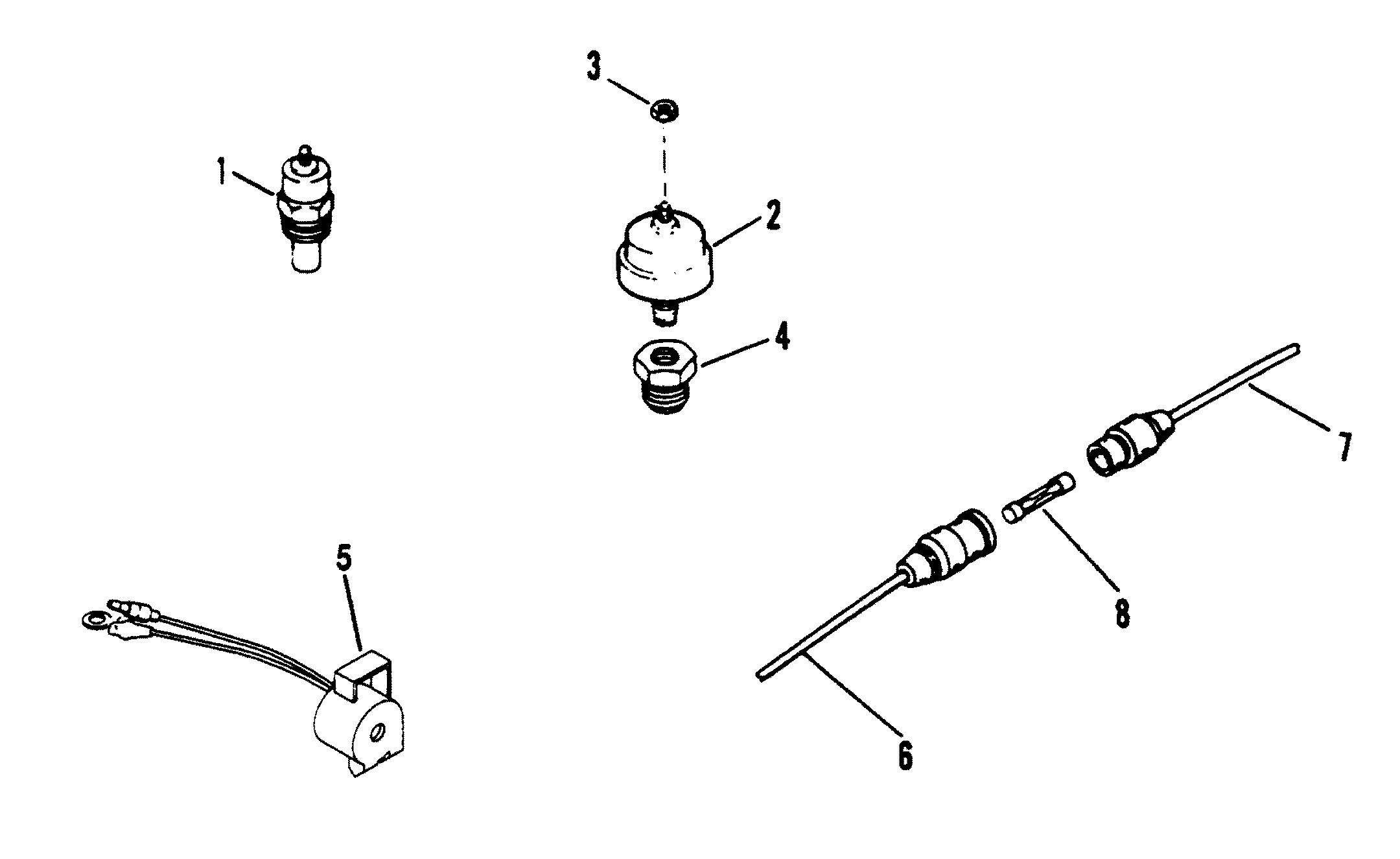

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | WATER TEMPERATURE SWITCH | 1 | 87-806951 | |||||
| 2 | 87-805605A1 | PRESSURE SWITCH | 1 | ||||||
| 3 | 11-45076 | NUT (10-32) | 1 | ||||||
| 4 | 22-64013 | REDUCER | 1 | ||||||
| 5 | 816492A6 | ALARM SYSTEM KIT | 1 | ||||||
| 6 | 84-95084A9 | WIRE ASSEMBLY | 1 | ||||||
| 7 | 84-95084A10 | WIRE ASSEMBLY | 1 | ||||||
| 8 | 88-79091 | FUSE | 1 |
