454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Starter And Alternator

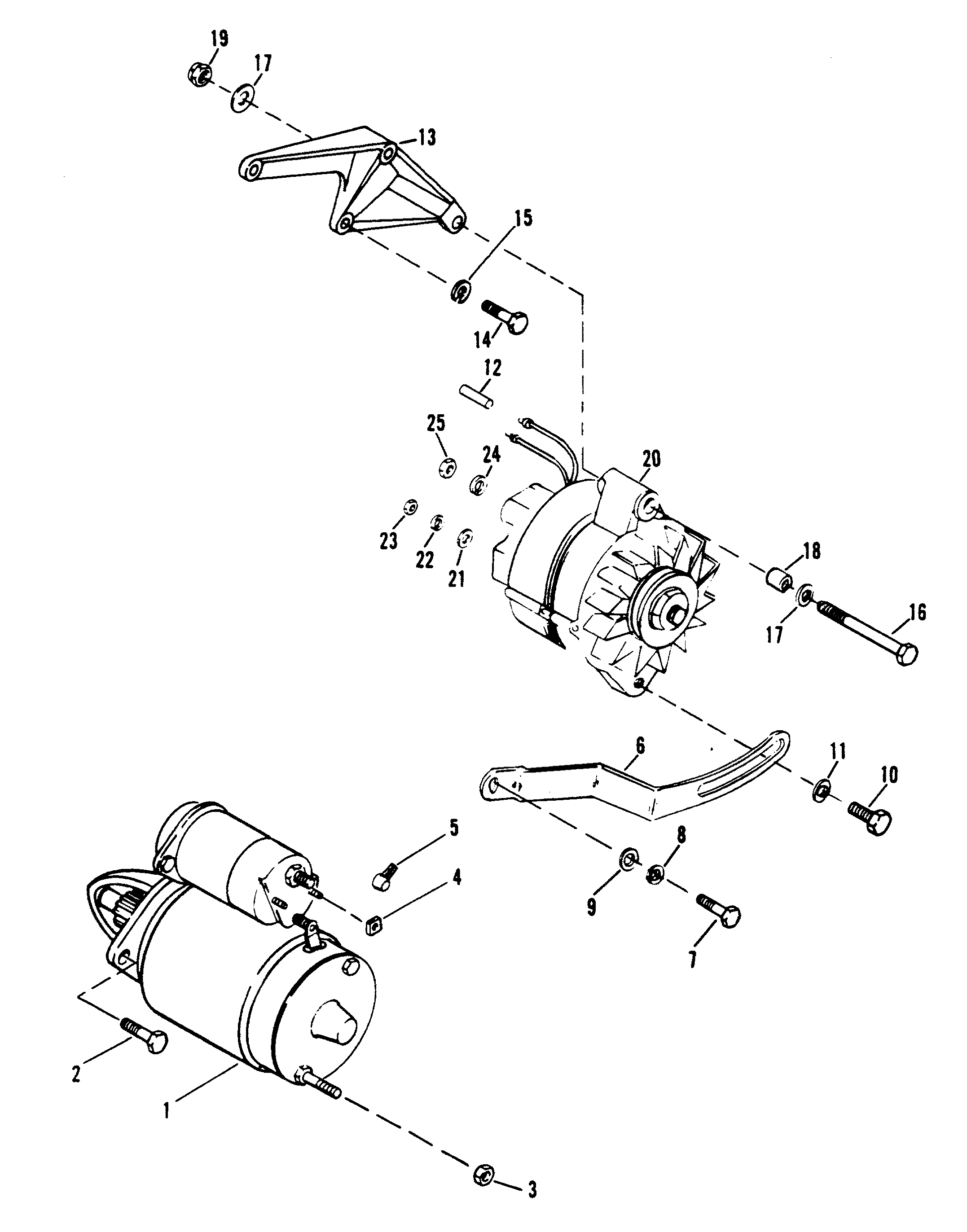

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | 620-5399M | 676-9-15907 | 602-10099MD | 602-10099HD | STARTER MOTOR | 1 | 50-806964A2 | ||
| 2 | 10-8053432 | SCREW | 2 | |||||||
| 3 | 11-806949 | NUT (8MM) | 1 | |||||||
| 4 | 11-400211 | NUT (5MM) | 1 | |||||||
| 5 | 85-79695T | BOOT | 1 | 85-79695 | ||||||
| 6 | 85013T | BRACE | 1 | |||||||
| 7 | 10-47462 | SCREW | 1 | |||||||
| 8 | 13-32993 | LOCKWASHER | 1 | |||||||
| 9 | 12-31263 | WASHER | 1 | |||||||
| 10 | 10-29198 | SCREW (7/8") | 1 | |||||||
| 11 | 12-26168 | WASHER | 1 | |||||||
| 12 | 5790811 | TUBING | 2 | |||||||
| 13 | 806394A1 | BRACKET | 1 | This Part is No Longer Available | ||||||
| 14 | 10-47462 | SCREW (1-1/4") | 1 | |||||||
| 14 | 10-47651 | SCREW (1-1/2") | 2 | |||||||
| 15 | 12-22248 | LOCKWASHER | 3 | |||||||
| 16 | 10-48308 | SCREW (3-3/4") | 1 | |||||||
| 17 | 12-20553 | 700-21675 | WASHER | 2 | ||||||
| 18 | 23-33186 | BUSHING | 1 | |||||||
| 19 | 11-23161 | NUT | 1 | |||||||
| 20 | 817119A4 | 620-3186M | 676-9-19101 | 602-20054 | ALTERNATOR | 1 | ||||
| 21 | 12-96457 | PHENOLIC WASHER | 1 | |||||||
| 22 | 13-26996 | LOCKWASHER | 1 | |||||||
| 23 | 11-79989 | NUT (10-24) | 1 | |||||||
| 24 | 13-26992 | LOCKWASHER | 1 | |||||||
| 25 | 11-94330 | NUT (1/4-20) | 1 |
