454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Exhaust Manifold And Exhaust Elbow

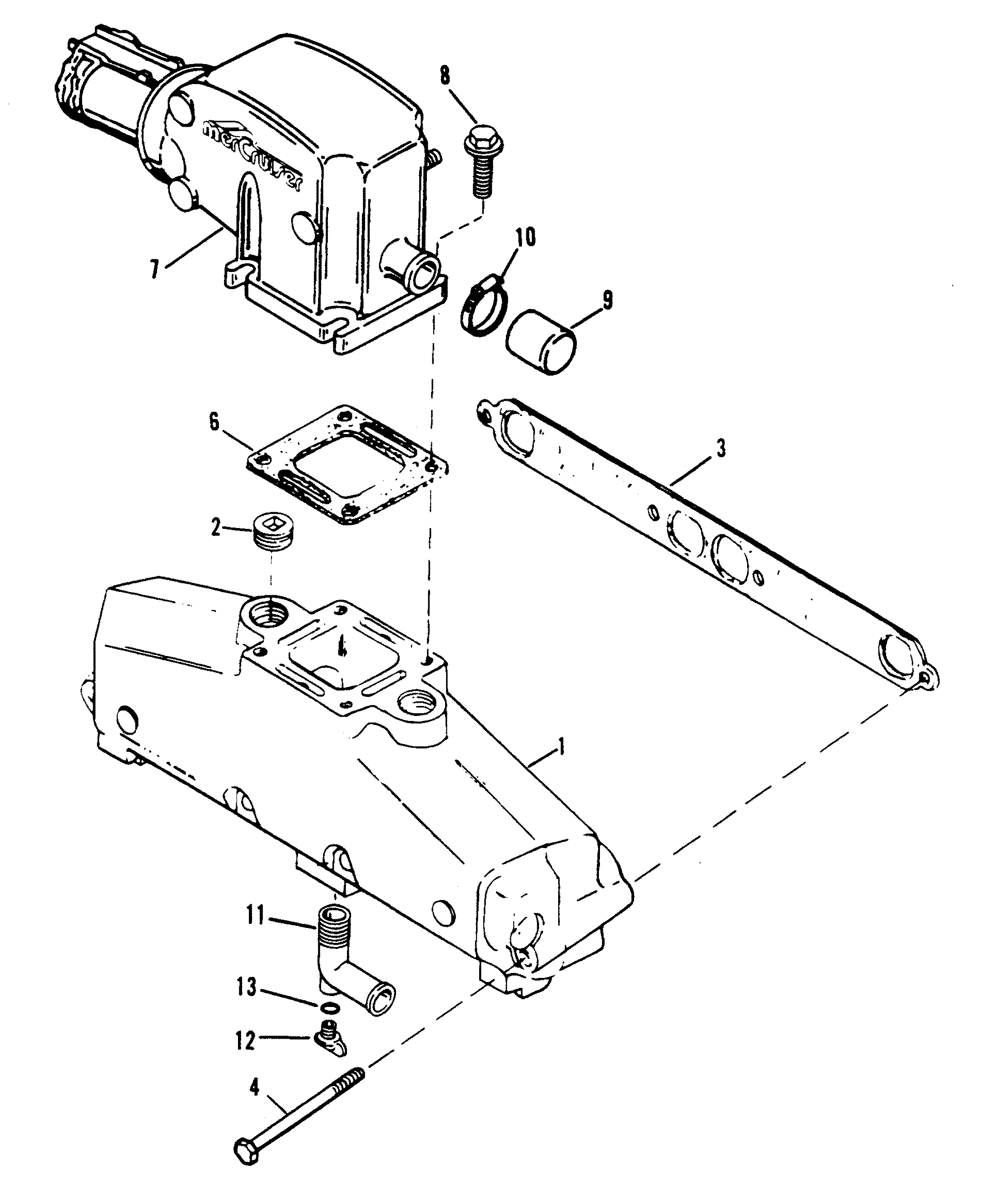

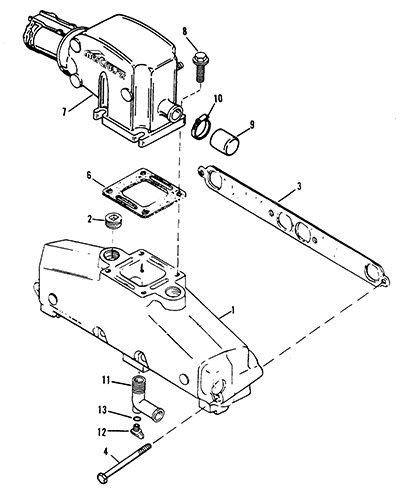

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807078T10 | EXHAUST MANIFOLD ASSEMBLY | 2 | 89011A8 | |||||
| 2 | 22-41622 | 676-9-41205 | 700-21892 | PLUG | 8 | 22-33198A1 | |||
| 3 | 27-46820 | 676-9-61400 | 700-33760 | GASKET | 2 | 1 | |||
| 4 | 10-37612 | SCREW (1-1/4") | 16 | ||||||
| 6 | 27-863724 | GASKET | 2 | 27-41813 | 1 | ||||
| 7 | 816900A5 | EXHAUST ELBOW ASSEMBLY (PORT) | 1 | This Part is No Longer Available | |||||
| 7 | 816900A9 | EXHAUST ELBOW ASSEMBLY (STARBOARD) | 1 | This Part is No Longer Available | |||||
| 8 | 10-865982005 | SCREW (1") | 6 | 10-12244 | |||||
| 8 | 10-98534 | SCREW (2-1/2") | 2 | ||||||
| 9 | 19-805727001 | RUBBER CAP | 2 | 19-805727 | |||||
| 10 | 54-815504220 | CLAMP | 2 | ||||||
| 11 | 22-862210A01 | 676-9-41206 | 700-13991 | DRAIN ELBOW | 2 | 22-806926A1 | |||
| 12 | 22-806608A02 | DRAIN PLUG | 2 | 22-806608A1 | |||||
| 13 | 25-32509 | QUAD RING | 2 | 25-806609 | |||||
| - | 807476A7 | RISER KIT (3") | 1 | 93320A7 | EACH KIT CONTAINS 2 RISERS | ||||
| - | 807477A5 | RISER KIT (6") | 1 | 93322A5 | EACH KIT CONTAINS 2 RISERS |
