4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Exhaust System (Use With 2 Piece Manifold))

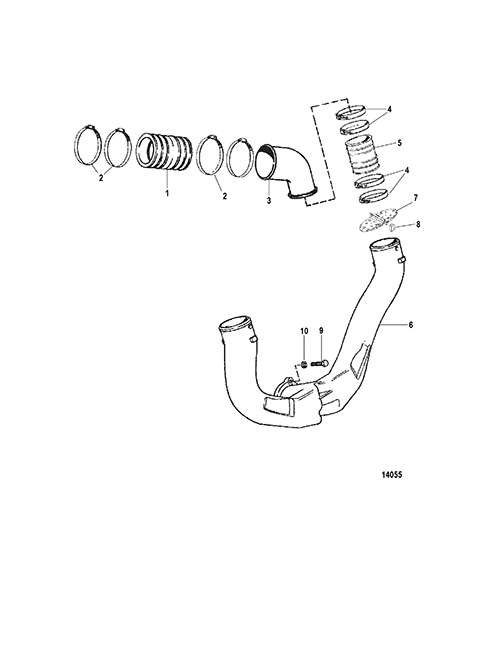

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0032 44348T TUBE Exhaust   2
2 0054 OEM: 525-54-815504272 CLAMP Worm Gear   8
3 0000 14478T ELBOW Exhaust   2
3 0000 14865A1 ELBOW KIT Exhaust (USE WITH 3 IN. & 6 IN. RISER KITS) 1
4 0054 OEM: 525-54-815504272 CLAMP Worm Gear   8
5 0032 14358T TUBE   2
6 0000 807130A4 PIPE   1
7 0000 OEM: 530-807166A1 SHUTTER ASSEMBLY Water   2
8 0025 OEM: 525-25-807167 GROMMET   4
9 0010 OEM: 525-10-58640 SCREW (.375-16 x 1.25)   4
10 0013 OEM: 525-13-41471 LOCKWASHER (.375)   4
NS 0019 8079923 COVER Hose Clamp End   AR
