4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Alternator and Brackets (Mando)

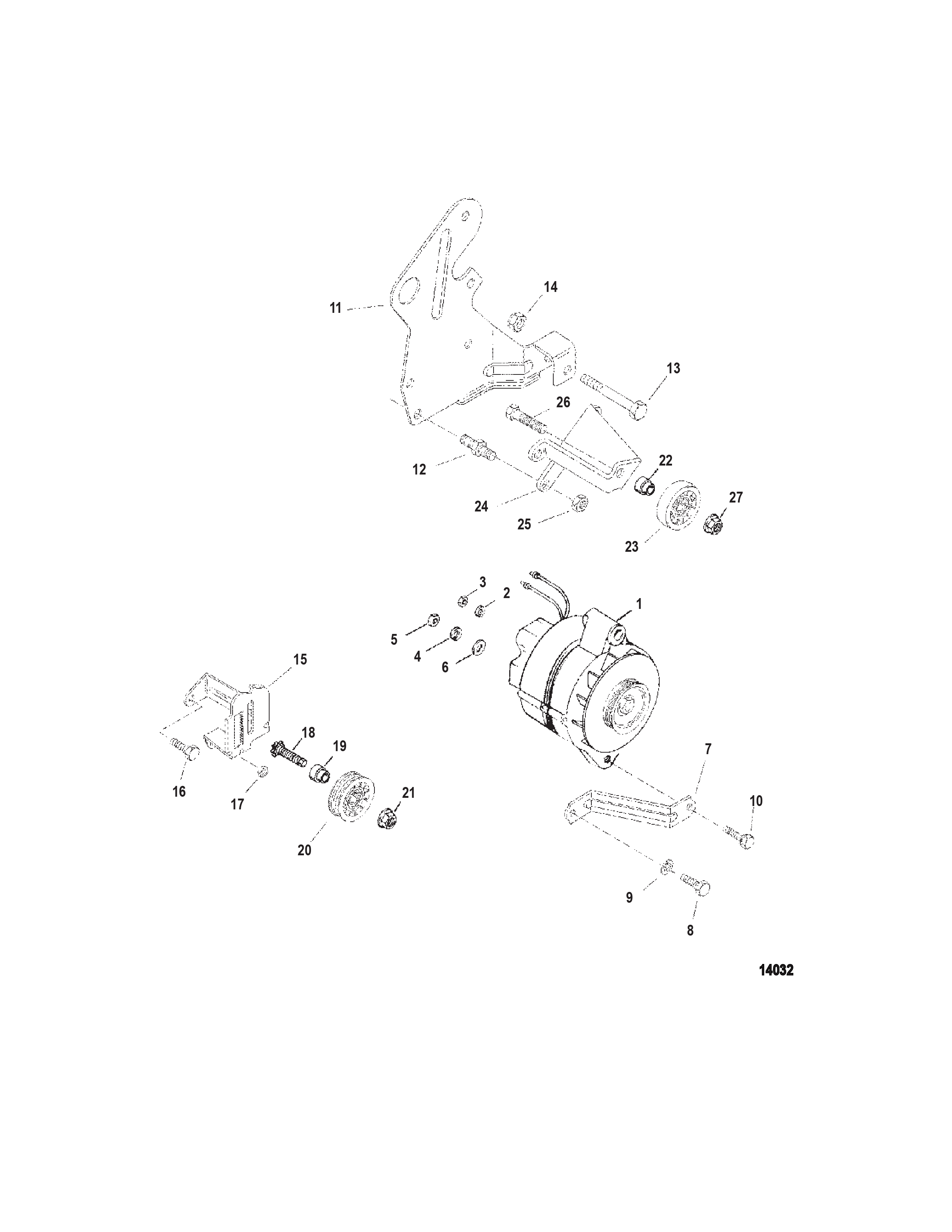

Section Drawing: (Hover or click to view larger)



Ref #Part ClassPart NumberDescriptionCommentsQtyNote
10000OEM: 525-807653T, Sierra: 676-18-5960ALTERNATOR ASSEMBLY (65 AMP) 1[1]
20013OEM: 525-13-26996LOCKWASHER (#10) Stainless Steel 1
30011OEM: 525-11-79989NUT (#10-24) Stainless Steel 1
40013OEM: 525-13-26992LOCKWASHER (.250) Stainless Steel 1
50011OEM: 525-11-94330NUT (.250-20) Brass 1
60012OEM: 525-12-96457WASHER Phenolic (.27 x .81 x .062) 1
70000OEM: 525-807750TBRACE 1
80010OEM: 525-10-98261SCREW (.375-16 x .750) 1
90013OEM: 525-13-35048, GLM: 700-21493LOCKWASHER (.375) 1
100010OEM: 525-10-29198SCREW AND LOCKWASHER (.312- 18 x .875) 1
110000OEM: 525-860370TBRACKET Alternator/Power Steering 1
120016OEM: 525-16-860102STUD (.375-16 x 1.730) 3
130010OEM: 525-10-56743SCREW (.375-24 x 3.125) 1
140011OEM: 525-11-23161NUT (.375-24) 1
150000OEM: 525-807767TBRACKET Idler Adjustment 1
160010OEM: 525-10-98261SCREW (.375-16 x .750) 1
170011OEM: 525-11-29250NUT (.312-24) 1
180043OEM: 525-43-8183812PINION STUD (.437-20) Stainless Steel 1
190000818380TBUSHING 1
200000OEM: 530-807757T, Sierra: 676-18-6457PULLEY ASSEMBLY Idler - Black 1
210011817618NUT (.437-20) 2
220000818380TBUSHING(CLSD COOLING/HYD STEERING)1
230000818382PULLEY(CLSD COOLING/HYD STEERING)1
230000OEM: 530-807757T, Sierra: 676-18-6457PULLEY ASSEMBLY Idler - Black(CLSD COOLING/HYD STEERING)1
240000OEM: 525-807753T1BRACKET(CLSD COOLING/HYD STEERING)1
250011OEM: 525-11-32219NUT (.375-16)(CLSD COOLING/HYD STEERING)3
260010OEM: 525-10-816601, Sierra: 676-18-3230, GLM: 700-28430SCREW (.437-20 x 1.500)(CLSD COOLING/HYD STEERING)1
270011817618NUT (.437-20) 1

PART NOTES:

[1] - Alternate part numbers:

807653R01Reman

807653TQS
