4.3L EFI (GEN+) TBI GM 262 V-6 - 0L012009 THRU 0L618999 - Distributor (S-N-0L012009 - 0L359999)

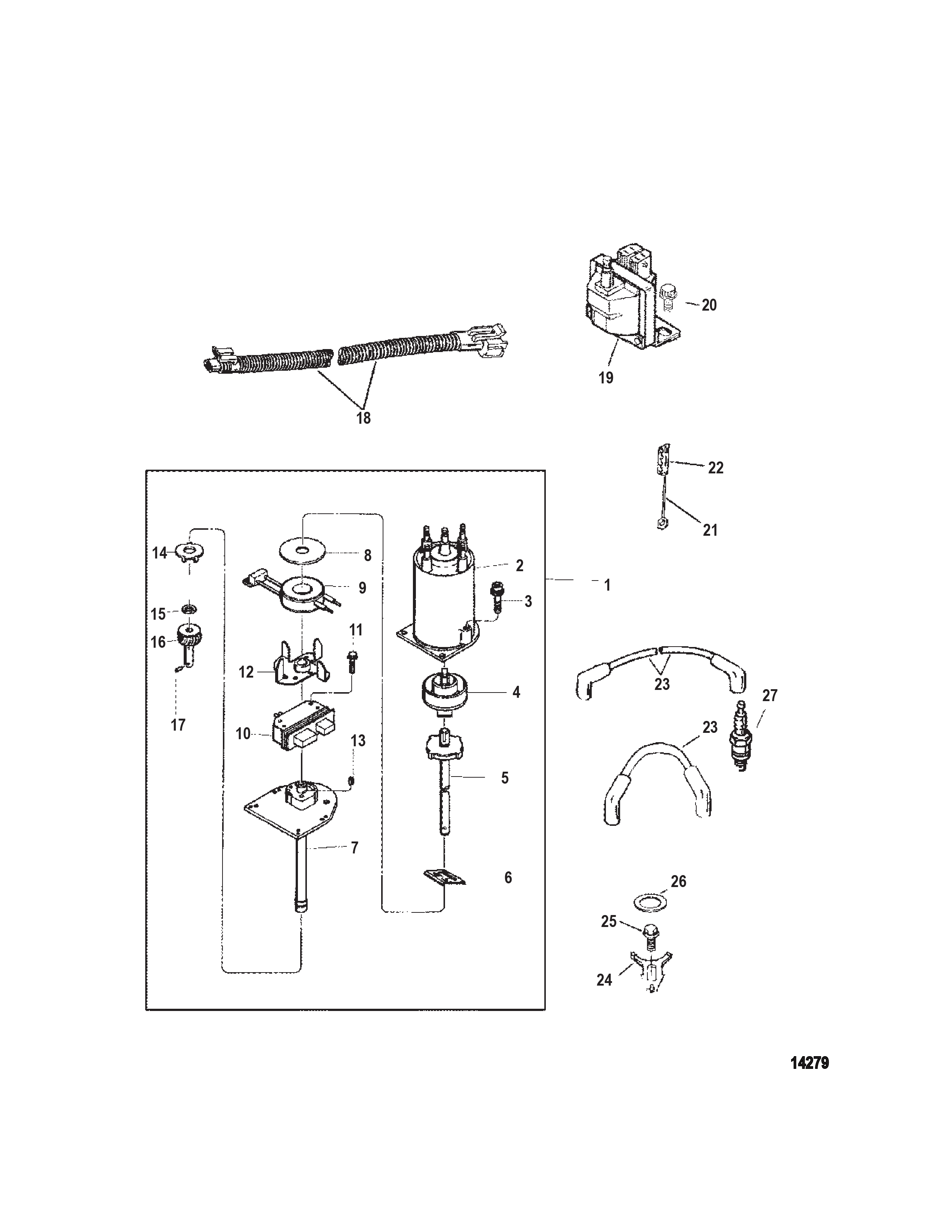

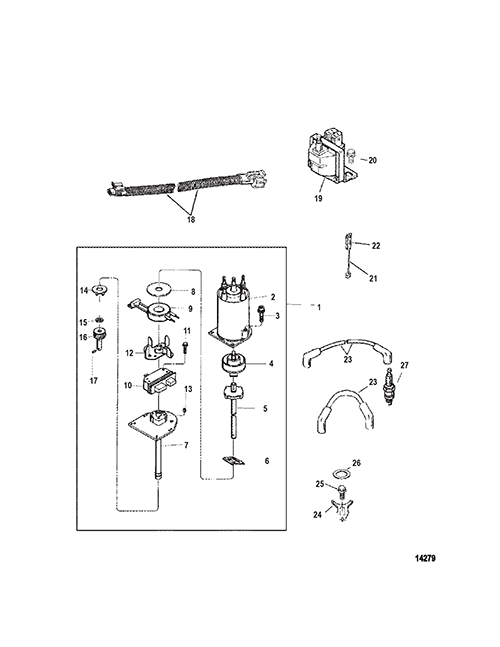

Section Drawing: (Hover or click to view larger)



Ref #Part ClassPart NumberDescriptionCommentsQtyNote
10000OEM: 525-807964A1, Sierra: 676-18-5476DISTRIBUTOR ASSEMBLY 1
20000850484TCAP 1[1]
30010808491SCREW 2
40000850485ROTOR 1[2]
50000850486SHAFT ASSEMBLY Main 1
60000850491RETAINER 1
70000850488HOUSING 1
80000850490SHIELD 1
90000OEM: 525-811639T, Sierra: 676-18-5108, GLM: 700-72130COIL 1
100000811637TMODULE 1
110010850494SCREW 2
120000850492POLE PIECE 1
130017808488PIN 1
14001246350WASHER 1
150012OEM: 525-12-808489WASHER 1
160043850493GEAR Drive 1
17001734109PIN 1
180084817376THARNESS ASSEMBLY Distributor Module to Ignition Coil 1
190000817378COIL 1
200010OEM: 525-10-805189SCREW (.375-16 x .750) 2
210016OEM: 525-16-90096A1STUD ASSEMBLY (#10-32 x Special) 2
220054OEM: 525-54-72821RETAINER 2
230084816608A82CABLE KIT Ignition (SPARK PLUGS & COIL) 1
240000OEM: 525-52185CLAMP 1
250010OEM: 525-10-805559SCREW (.375-16 x .875) Stainless Steel 1
260027OEM: 525-27-344863, Sierra: 676-18-0874GASKET 1[3]
270033816336SPARK PLUG 6
-0027OEM: 525-27-807756A96GASKET SET Engine Overhaul 1

PART NOTES:

[1] - Alternate part numbers:

850484TService Part

850484T 3Kit


[2] - Alternate part numbers:

850484T 3Kit

850485Service Part


[3] - COMPONENT OF ENGINE OVERHAUL GASKET SET 807756A96
