225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Throttle Lever And Shift Shaft (S/N-0T818235 & Up)

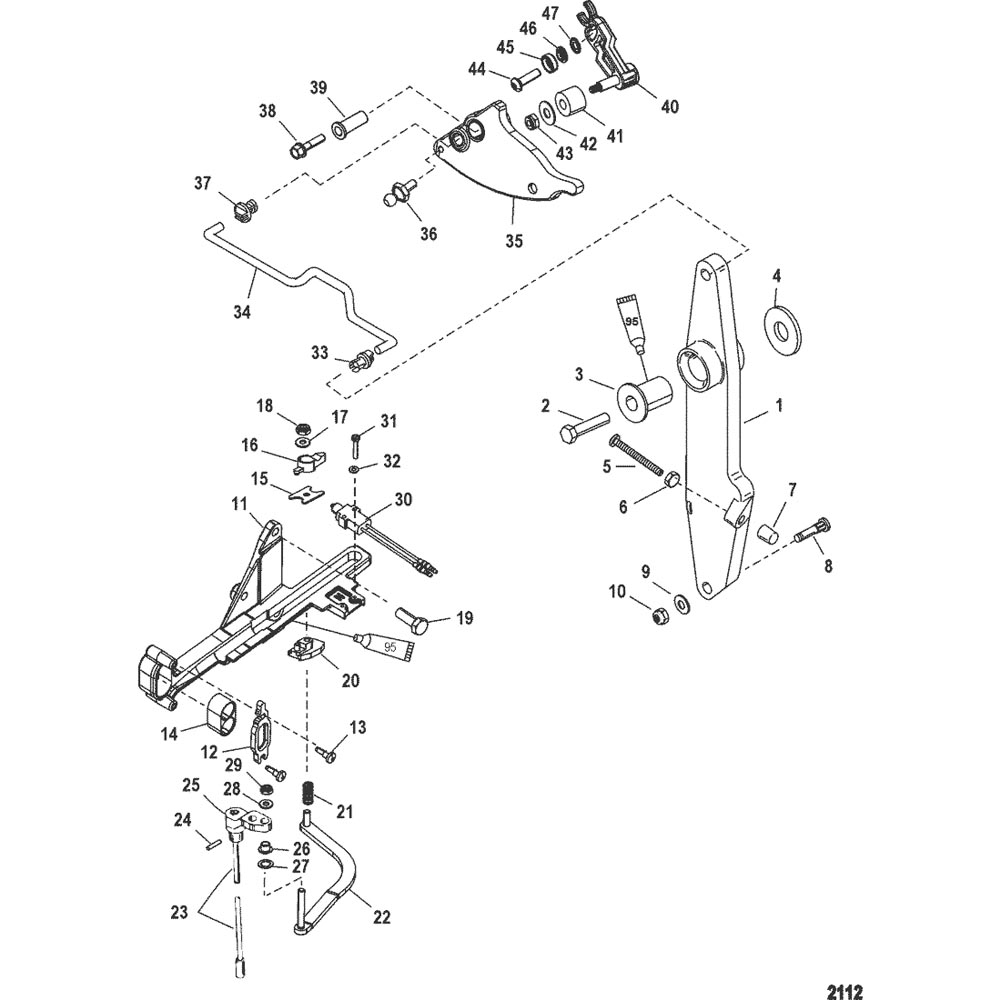

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0040990 | LEVER, Throttle Control | 1 | 8503891 | |||||
| 2 | 10-818165 | SCREW, (.375-16 x 1.75) | 1 | ||||||
| 3 | 23-55164 | BUSHING | 1 | ||||||
| 4 | 23-858959 | SPACER | 1 | ||||||
| 5 | 10-64022 | SCREW, (.250-20 x 2.125) | 1 | ||||||
| 6 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 7 | 26852 | CAP, Nylon | 1 | ||||||
| 8 | 42927 | INSERT | 1 | ||||||
| 9 | 12-35459 | WASHER | 1 | ||||||
| 10 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 11 | 814283T6 | BRACKET ASSEMBLY, Anchor | 1 | ||||||
| 12 | 98889 | LATCH | 1 | ||||||
| 13 | 10-42975 | DRIVE SCREW | 2 | ||||||
| 14 | 39519 | CUP | 1 | ||||||
| 15 | 52100 | WEAR PLATE | 1 | ||||||
| 16 | 8M0036768 | LATCH | 1 | 38279 | |||||
| 17 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | ||||||
| 18 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 19 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 3 | ||||||
| 20 | 814284 | GUIDE BLOCK | 1 | ||||||
| 21 | 24-20099 | SPRING | 1 | ||||||
| 22 | 67073A1 | LINK ROD ASSEMBLY | 1 | ||||||
| 23 | 79932A18 | SHIFT SHAFT ASSEMBLY | 1 | ||||||
| 23 | 79932A16 | SHIFT SHAFT ASSEMBLY | 1 | ||||||
| 24 | NSS | Roll Pin | 1 | Not Sold Separate | |||||
| 25 | NSS | Shift Shaft Lever - Upper | 1 | Not Sold Separate | |||||
| 26 | 23-26856 | BUSHING | 1 | ||||||
| 27 | 13-29720 | WAVE WASHER | 1 | ||||||
| 28 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | ||||||
| 29 | 11-826709109 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 30 | 87-889514T02 | SWITCH | 1 | 889514A02 | |||||
| 31 | 10-77478 | SCREW, (#6-32 x .875) | 2 | ||||||
| 32 | 12-27882 | WASHER | 2 | ||||||
| 33 | 23-932481 | BUSHING | 1 | ||||||
| 34 | 8508152 | ROD | 1 | ||||||
| 35 | 858847A2 | CAM | 1 | ||||||
| 36 | 8235694 | BALL, Threaded | 1 | ||||||
| 37 | 23-932481 | BUSHING | 1 | ||||||
| 38 | 10-81893440 | SCREW, (M8 x 40) | 1 | ||||||
| 39 | 23-856895 | BUSHING | 1 | ||||||
| 40 | 850286A03 | LEVER/ROLLER KIT, Throttle | 1 | ||||||
| 41 | 8M0072162 | ROLLER | 1 | 889610 | |||||
| 42 | 12-56681 | WASHER, (.203 x .500 x .032) | 1 | ||||||
| 43 | 11-826709104 | NUT, (#8-32) Stainless Steel | 1 | ||||||
| 44 | 10-889354 | SCREW, Special | 1 | ||||||
| 45 | 12-881991 | WASHER, Cupped | 1 | ||||||
| 46 | 12-881992 | WASHER, Spool | 1 | No Longer Available | |||||
| 47 | 13-69432 | LOCKWASHER, External (#10) | 1 | ||||||
| - | 809430T02 | POWERHEAD ASSEMBLY | 1 |
