225X EFI PROMAX - Serial 0T430254 Thru 0T819605 - Fuel System

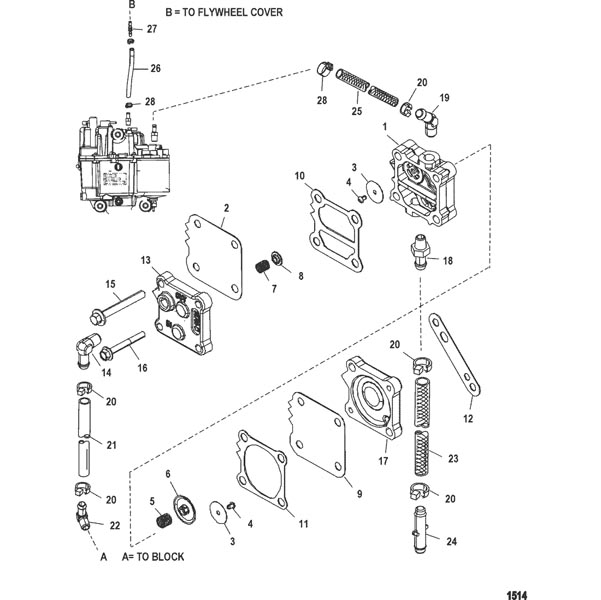

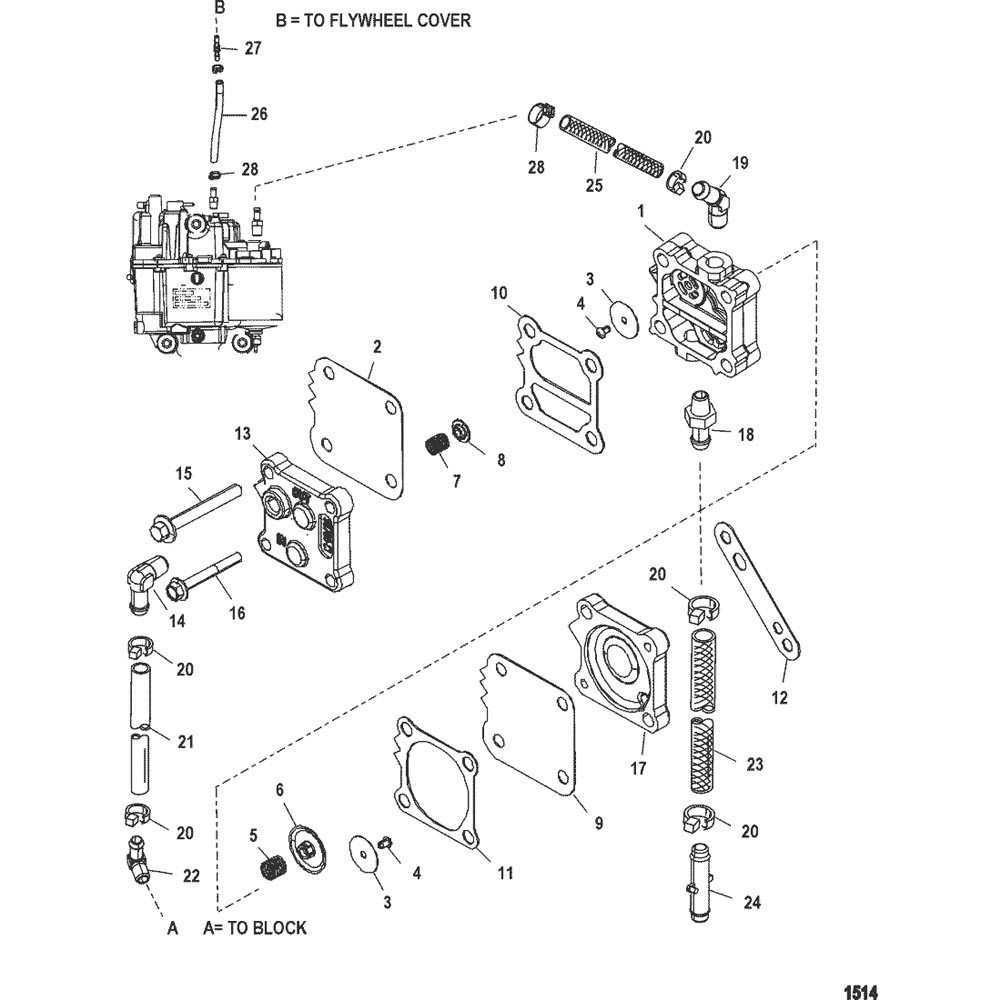

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Handler
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Drive Shaft Housing And Exhaust Tube
- Electrical Plate Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel/Alternator
- Fuel System
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Driveshaft-Standard/Counter-SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation/Accessories
- Key Switch Assembly
- Oil System
- Power Trim Components
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm(Long)
- Swivel Bracket And Steering Arm(Short)
- Throttle Lever And Shift Shaft (S/N-0T818234 & Below)
- Throttle Lever And Shift Shaft (S/N-0T818235 & Up)
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets (Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 14360T75 | PUMP ASSEMBLY, Fuel | 1 | ||||||
| 1 | NSS | Fuel Pump Body | 1 | Not Sold Separate | |||||
| 2 | 21-857005A1 | DIAPHRAGM KIT | 1 | ||||||
| 3 | NSS | Check Valve | 2 | Not Sold Separate | |||||
| 4 | NSS | Retainer | 2 | Not Sold Separate | |||||
| 5 | NSS | Spring | 1 | Not Sold Separate | |||||
| 6 | NSS | Cap | 1 | Not Sold Separate | |||||
| 7 | NSS | Spring | 1 | Not Sold Separate | |||||
| 8 | NSS | Cap | 1 | Not Sold Separate | |||||
| 9 | NSS | Diaphragm | 1 | Not Sold Separate | |||||
| 10 | NSS | Gasket - Boost | 1 | Not Sold Separate | |||||
| 11 | NSS | Gasket - Pulse | 1 | Not Sold Separate | |||||
| 12 | 27-987691 | GASKET | 1 | ||||||
| 13 | 987752 | PLATE | 1 | ||||||
| 14 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| 15 | 10-82104540 | SCREW, (M5 x 40), Fuel Pump | 2 | ||||||
| 16 | 10-82130050 | SCREW, (M6 x 50), Pump to Crankcase | 2 | ||||||
| 17 | 144303 | BASE | 1 | ||||||
| 18 | 22-291112 | FITTING | 1 | ||||||
| 19 | 22-782792 | FITTING, Elbow45 Degree (1.25) | 1 | ||||||
| 20 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 21 | 32-8M0108349 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 6.00 Inch Length) | 1 | 830757130 | |||||
| 22 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| 23 | 32-8M0043979 | HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) | 1 | 856822A2 | |||||
| 24 | 22-822769 | CONNECTOR | 1 | ||||||
| 25 | 32-8M0064784 | TUBING | 1 | 856822A1 | |||||
| 26 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 7.50 Inch Length) | 1 | 830756109 | |||||
| 27 | 22-858955 | CONNECTOR | 1 | ||||||
| 28 | 54-856880 | CLAMP, Hose (15.3) | AR | ||||||
| - | 27-813859A02 | GASKET SET | 1 | ||||||
| - | 809430T02 | POWERHEAD ASSEMBLY | 1 |
