600 SCi - Serial 0M952908 Thru 0M962885 - Intake Components (Intercooler And Manifold)

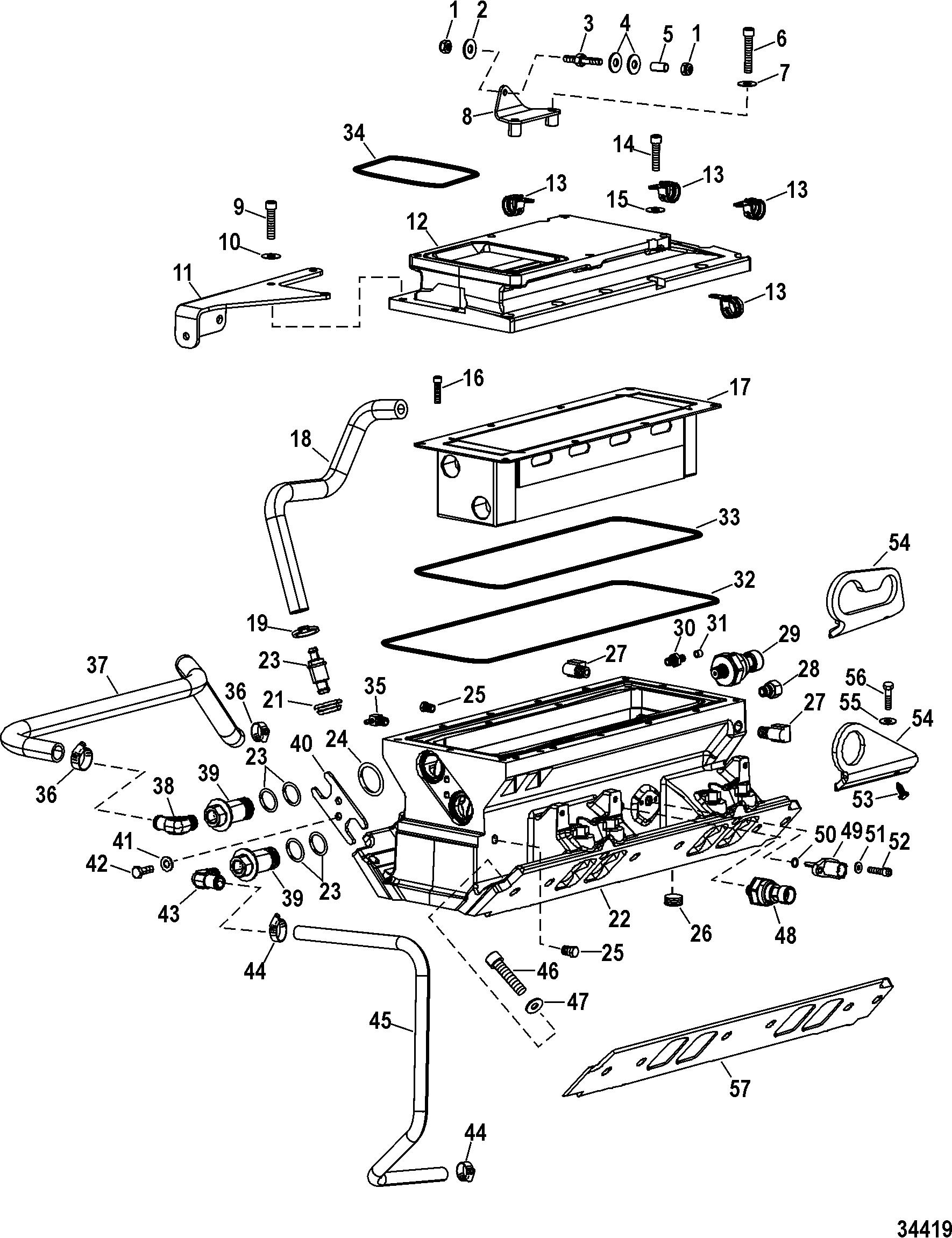

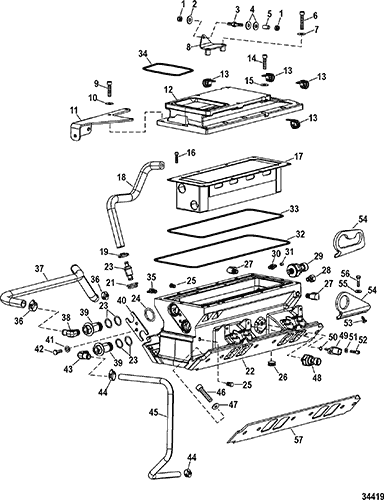

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 11-826709109 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 2 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 1 | ||||||
| 3 | 16-96112 | STUD, (.250-28 x 2.00) | 1 | ||||||
| 4 | 12-69056 | WASHER, (.255 x .625 x .0312) | 2 | 12-21631 | |||||
| 5 | 23-31866 | SPACER, (.256 x .313 x .625) | 1 | ||||||
| 6 | 10-30559 | SCREW, (.312-18 x 1.750) Stainless Steel | 2 | SN# 0M952908 THRU 0M955080 | |||||
| 6 | 10-821281 | SCREW, (.312-18 x 2.500) Stainless Steel | 2 | SN# 0M955081 & Up | |||||
| 7 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | ||||||
| 8 | 843941 | BRACKET, Cable Atachment | 1 | ||||||
| 9 | 10-79436 | SCREW, (.312-18 x 1.250) Stainless Steel | 3 | SN# 0M952908 THRU 0M955080 | |||||
| 9 | 10-8M0000148 | SCREW, (.312-18 x 2.120) Stainless Steel | 3 | SN# 0M955081 & Up | |||||
| 10 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 3 | ||||||
| 11 | 842509 | BRACKET, Support - Black | 1 | NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number | |||||
| 12 | 8M8000300 | MANIFOLD, Supercharger - Blue | 1 | 842470001 | NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number SN# 0M952908 THRU 0M955080 | ||||
| 12 | 8M8000300 | MANIFOLD, Supercharger - Blue | 1 | NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number SN# 0M955081 & Up | |||||
| 13 | 54-843943 | J CLIP | 4 | ||||||
| 14 | 10-90073 | SCREW, (.312-18 x 1.00) Stainless Steel | 10 | SN# 0M952908 THRU 0M955080 | |||||
| 14 | 10-30559 | SCREW, (.312-18 x 1.750) Stainless Steel | 10 | SN# 0M955081 & Up | |||||
| 15 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 10 | ||||||
| 16 | 10-861846 | SCREW, (.312-18 x .750) Stainless Steel | 8 | ||||||
| 17 | 8M0047379 | INTERCOOLER | 1 | 842472 | |||||
| 18 | 32-8M0001453 | HOSE, Molded, Valve To Throttle Body | 1 | 32-843087 | SN# 0M952908 THRU 0M955080 | ||||
| 18 | 32-8M0001453 | HOSE, Molded, Valve To Throttle Body | 1 | SN# 0M955081 & Up | |||||
| 19 | 54-848763 | CLAMP, (19.8 mm) | 1 | ||||||
| 20 | 848578 | VALVE ASSEMBLY, Crankcase Vent | 1 | ||||||
| 21 | 25-811553 | GROMMET | 1 | 2,5 | |||||
| 22 | 842469A05 | MANIFOLD ASSEMBLY, Intake - Blue | 1 | 5 | |||||
| 22 | 842469A08 | MANIFOLD ASSEMBLY, Intake - Black | 1 | 5 | |||||
| 23 | 25-21836 | 676-9-76565 | O-RING, (.796 x .139) | 4 | 2,5 | ||||
| 24 | 25-35480 | O-RING, (1.237 x .103) | 2 | 2,5 | |||||
| 25 | 22-328022 | PLUG, Pipe (.125-27) Brass | 2 | 5 | |||||
| 26 | 22-823465 | PLUG, Pipe (1.00-11) Brass | 1 | 5 | |||||
| 27 | 22-93385 | FITTING, (90 Degree) | 2 | 5 | |||||
| 28 | 22-33821 | CONNECTOR | 1 | 5 | |||||
| 29 | 881879T11 | SENSOR, Pressure (0 - 100 PSI) | 1 | 881879011 | |||||
| 30 | 22-840971A1 | VALVE ASSEMBLY, Shrader | 1 | 5 | |||||
| 31 | 22-805515 | CAP, Shrader Valve - Brass | 1 | 5 | |||||
| 32 | 25-843089 | O-RING, (14.205 x .103) | 1 | 2,5 | |||||
| 33 | 25-843088 | O-RING, (12.570 x .103) | 1 | 2,5 | |||||
| 34 | 25-843092 | O-RING, (6.080 x .103) | 1 | 2,5 | |||||
| 35 | 22-993211 | FITTING | 1 | 5 | |||||
| 36 | 54-180761 | CLAMP, Worm Gear | 2 | ||||||
| 37 | 32-842260 | HOSE, Molded | 1 | ||||||
| 38 | 22-842491 | FITTING, (.375-18) 90 Degree | 1 | ||||||
| 39 | 843090 | COUPLER, Intercooler | 2 | ||||||
| 40 | 843091 | RETAINER, Intercooler Coupler | 1 | ||||||
| 41 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | |||||
| 42 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 2 | ||||||
| 43 | 22-842501 | FITTING, 90 Degree | 1 | ||||||
| 44 | 54-180761 | CLAMP, Worm Gear | 2 | ||||||
| 45 | 32-842259 | HOSE, (38.00 Inches) | 1 | SN# 0M952908 THRU 0M955080 | |||||
| 45 | 32-8M0007846 | HOSE, (38.00 Inches) | 1 | SN# 0M955081 & Up | |||||
| 46 | 10-848160 | SCREW, (.375-16 x 1.375) Stainless Steel | 16 | 5 | |||||
| 47 | 12-842504 | WASHER, (.410 x .720 x .093) Stainless Steel | 16 | 5 | |||||
| 48 | 8M6000628 | SENSOR ASSEMBLY, Pressure (0 - 30 PSI) | 1 | 8818798 | |||||
| 49 | 891663001 | SENSOR ASSEMBLY, Temperature, Air Charge | 1 | 5 | |||||
| 50 | 25-892317001 | O-RING | 1 | 2,5 | |||||
| 51 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | 5 | |||||
| 52 | 10-90188 | SCREW, (#10-24 x .500) Stainless Steel | 2 | 5 | |||||
| 53 | 54-828991T | CLIP | 1 | 54-828991 | 5 | ||||
| 54 | 8M8000050 | BRACKET, Lift | 1 | 842460 | Design I - Single Hole Lift 5 | ||||
| 54 | 8M8000050 | BRACKET, Lift | 1 | Design II - Dual Hole Lift 5 | |||||
| 55 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | 5 | ||||
| 56 | 10-37562 | SCREW, (.312-18 x 1.00) Stainless Steel | 2 | 5 | |||||
| 57 | 27-843073 | GASKET, Intake Manifold Mount | 2 | 2,5 | |||||
| - | 27-843073A05 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 844200A08 | PARTIAL ENGINE ASSEMBLY | 1 |
