500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Carburetor And Linkage

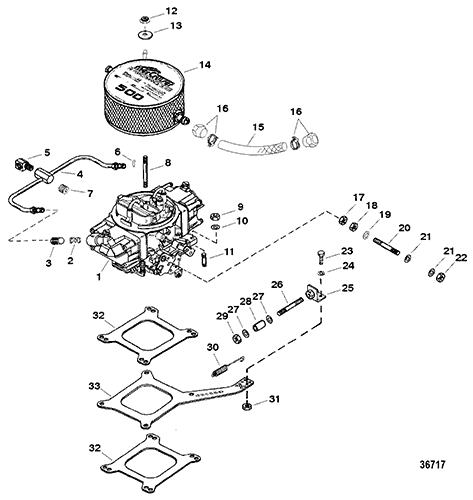

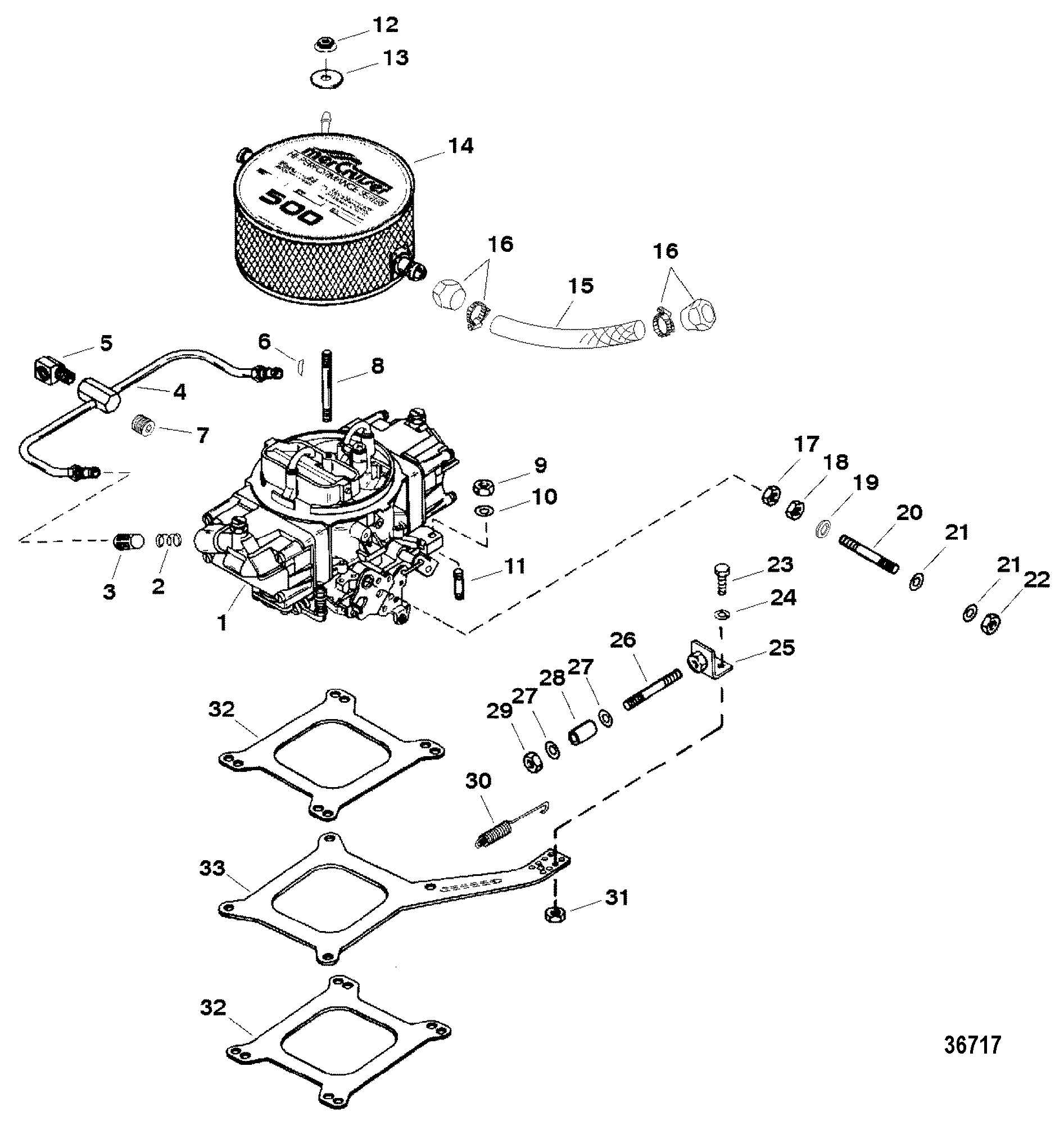

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 13549T21 | CARBURETOR ASSEMBLY (Blue) | 1 | This Part is No Longer Available | |||||
| 2 | 24-48143 | SPRING, Filter | 2 | ||||||
| 3 | 35-93568 | 676-9-37825 | FILTER | 2 | |||||
| 4 | 32-8485911 | LINE ASSEMBLY, Fuel Inlet | 1 | ||||||
| 5 | 22-93385 | FITTING, (90 Degree), Fuel Inlet Tube | 1 | ||||||
| 6 | 27-848438 | GASKET, Flair (Copper) | 2 | ||||||
| NS | 13220 | 700-76110 | REBUILD KIT, Carburetor Overhaul | 1 | |||||
| NS | 27-42270A1 | GASKET SET, Carburetor | 1 | ||||||
| NS | 848243 | POWERVALVE | 1 | ||||||
| NS | 816827 | PUMP KIT, Accelerator | 2 | This Part is No Longer Available | |||||
| NS | 42268 | CHOKE KIT, Electric | 1 | This Part is No Longer Available | |||||
| NS | 848750 | VALVE, Umbrella | 2 | ||||||
| NS | 848751 | BAFFLE, Vent | 2 | ||||||
| NS | 25-848752 | O-RING | 2 | (Body Of The Needle And Seat) | |||||
| NS | 848755 | DIAPHRAM, Accelerator Pump | 2 | ||||||
| NS | 848749 | FLOAT, Carburetor | 2 | (Black - Solid Plastic) | |||||
| NS | 27-848742A1 | GASKET SET, Float Adjust | 2 | This Part is No Longer Available | |||||
| NS | 1399-650875 | JET, Main | 1 | This Part is No Longer Available (.082) (Starboard Primary) | |||||
| NS | 1399-650893 | JET, Main | 1 | (.105) (Starboard Secondary) | |||||
| NS | 1399-650889 | JET, Main | 1 | (.104) (Port Secondary) | |||||
| NS | 1399-650881 | JET, Main | 1 | (.093) (Port Primary) | |||||
| 7 | 22-47945 | PLUG, Pipe | 1 | ||||||
| 8 | 16-848176 | STUD, (.250-20 x 4.310) | 1 | ||||||
| 9 | 11-82670911 | NUT, (.312-24) Stainless Steel | 4 | 11-35814 | |||||
| 10 | 12-848136 | WASHER, (.328 x .680 x .190) | 4 | ||||||
| 11 | 16-46857 | STUD (.312 x 1.875) | 4 | ||||||
| 12 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 1 | ||||
| 13 | 12-86400 | WASHER | 1 | ||||||
| 14 | 849706 | ARRESTOR, Flame | 1 | This Part is No Longer Available | |||||
| 15 | 32-821284A21 | HOSE ASSEMBLY, Vent (8.750 Inches) | 2 | This Part is No Longer Available | |||||
| 16 | 54-84763012 | COVER, Clamp End, Vent Hose | 4 | This Part is No Longer Available | |||||
| 17 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 1 | ||||
| 18 | 12-28426 | WASHER | 1 | ||||||
| 19 | 23-818894 | BUSHING, Throttle Cable Stud | 1 | ||||||
| 20 | 16-96112 | STUD, (.250-28 x 2.00) | 1 | (Thottle Cable To Carburetor) | |||||
| 21 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 22 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 1 | ||||
| 23 | 10-78291 | SCREW, (.190-24 x .500) | 2 | ||||||
| 24 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 25 | 15017 | BRACKET, Throttle | 1 | ||||||
| 26 | 16-728091 | STUD, (.250-20/.250-28 x 1.620) | 1 | 16-72809 | |||||
| 27 | 12-69056 | WASHER, (.255 x .625 x .0312) | 2 | 12-21631 | |||||
| 28 | 23-31866 | SPACER, (.256 x .313 x .625), Cable Stud | 1 | ||||||
| 29 | 11-826709109 | 525-11-826709109 | NUT, (.250-28) | 1 | 11-35045 | ||||
| 30 | 24-897454 | SPRING, Throttle Return | 1 | 24-32817 | |||||
| 31 | 11-79989 | NUT, (#10-24) Stainless Steel | 2 | ||||||
| 32 | 27-41610 | 676-9-61001 | GASKET, Spacer | 2 | 2 | ||||
| 33 | 940701 | BRACKET, Throttle | 1 | ||||||
| - | 27-818572A98 | GASKET SET, Engine Overhaul | 1 |
