500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Oil Cooler - Oil Filter - Oil Adaptor

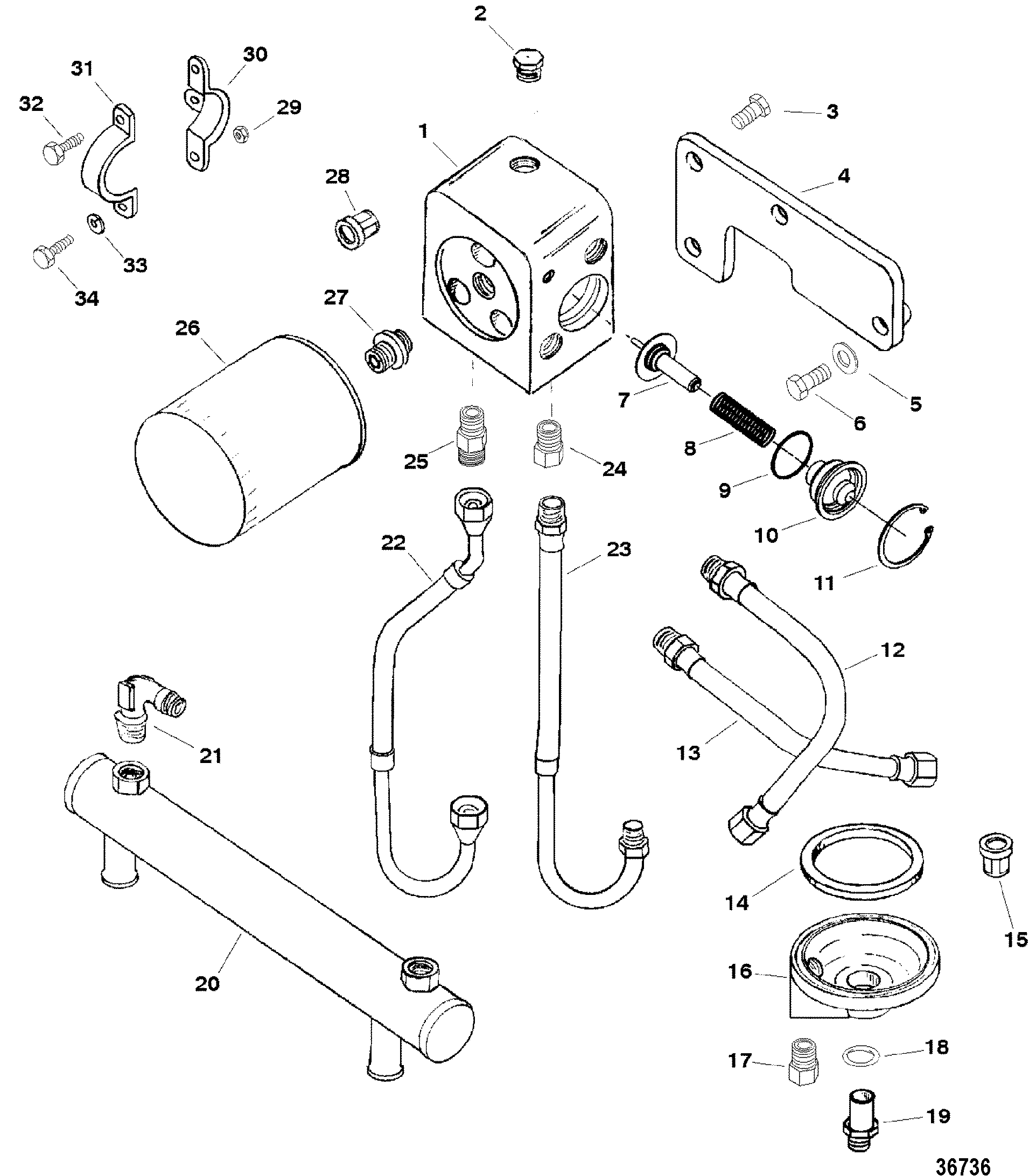

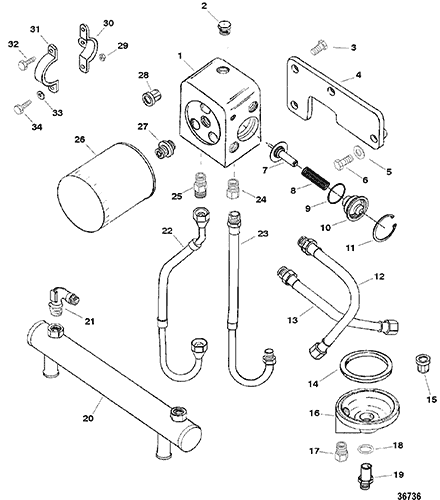

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 848555T | ADAPTOR, Oil Filter | 1 | ||||||
| 2 | 22-32804 | PLUG, (.500-14) | 1 | ||||||
| 3 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 2 | ||||||
| 4 | 8485562 | BRACKET, Oil Adaptor | 1 | ||||||
| 5 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | |||||
| 6 | 10-825427 | SCREW, (.437-14 x 1.250) Stainless Steel | 2 | ||||||
| 7 | 816163 | THERMOSTAT | 1 | ||||||
| 8 | 24-816162 | SPRING | 1 | ||||||
| 9 | 25-864701 | O-RING, (1.112 x .103) | 1 | 25-47632 | |||||
| 10 | 8161651 | COVER, Oil Thermostat | 1 | ||||||
| 11 | 53-848571 | RING, Retaining, Snap | 1 | ||||||
| 12 | 32-8485742 | HOSE ASSEMBLY (14.500 Inches) | 1 | ||||||
| 13 | 32-8485741 | HOSE ASSEMBLY (13.380 Inches) | 1 | This Part is No Longer Available | |||||
| 14 | 27-91892 | 700-32390 | GASKET | 1 | 2 | ||||
| 15 | VALVE, Relief, By Pass | 1 | (Cylinder Block) | ||||||
| 16 | 35-818400A1 | ADAPTOR | 1 | ||||||
| 17 | 22-805563 | CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) | 1 | ||||||
| 18 | 26-42077 | SEAL, Swivel Tube | 1 | ||||||
| 19 | 22-806121 | FITTING | 1 | ||||||
| 20 | 848192T | 542-848192-T | COOLER, Oil | 1 | |||||
| 21 | 22-706811 | ELBOW, 90 Degree | 2 | ||||||
| 22 | 32-848573 | HOSE ASSEMBLY | 1 | (Remote Oil To Adaptor) | |||||
| 23 | 32-848572 | HOSE ASSEMBLY | 1 | (Remote Oil To Adaptor) | |||||
| 24 | 22-805563 | CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) | 1 | ||||||
| 25 | 22-806186 | FITTING | 1 | ||||||
| 26 | 35-16595Q | 676-9-57811 | FILTER, Oil | 1 | 35-16595T | ||||
| 27 | 22-805632 | CONNECTOR, Oil Fitler | 1 | ||||||
| 28 | 99889 | VALVE, By Pass | 1 | (Oil Adaptor) | |||||
| 29 | 11-30506 | NUT, (.250-28) | 4 | (Driveline Models) | |||||
| 30 | 8161951 | BRACKET, Oil Cooler | 2 | This Part is No Longer Available (Plug In Models) | |||||
| 30 | 12820 | BRACKET, Oil Cooler | 2 | (Driveline Models) | |||||
| 31 | 56328A1 | BRACKET, Oil Cooler | 2 | (All Models) | |||||
| 32 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 2 | ||||||
| 33 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 34 | 10-49668 | SCREW, (.250-20 x .750) | 4 | ||||||
| 34 | 10-69028 | SCREW, (.250-28 x .750) Stainless Steel | 4 | (Driveline Models) | |||||
| - | 27-818572A98 | GASKET SET, Engine Overhaul | 1 |
