Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Trim Cylinders And Hydraulic Hoses

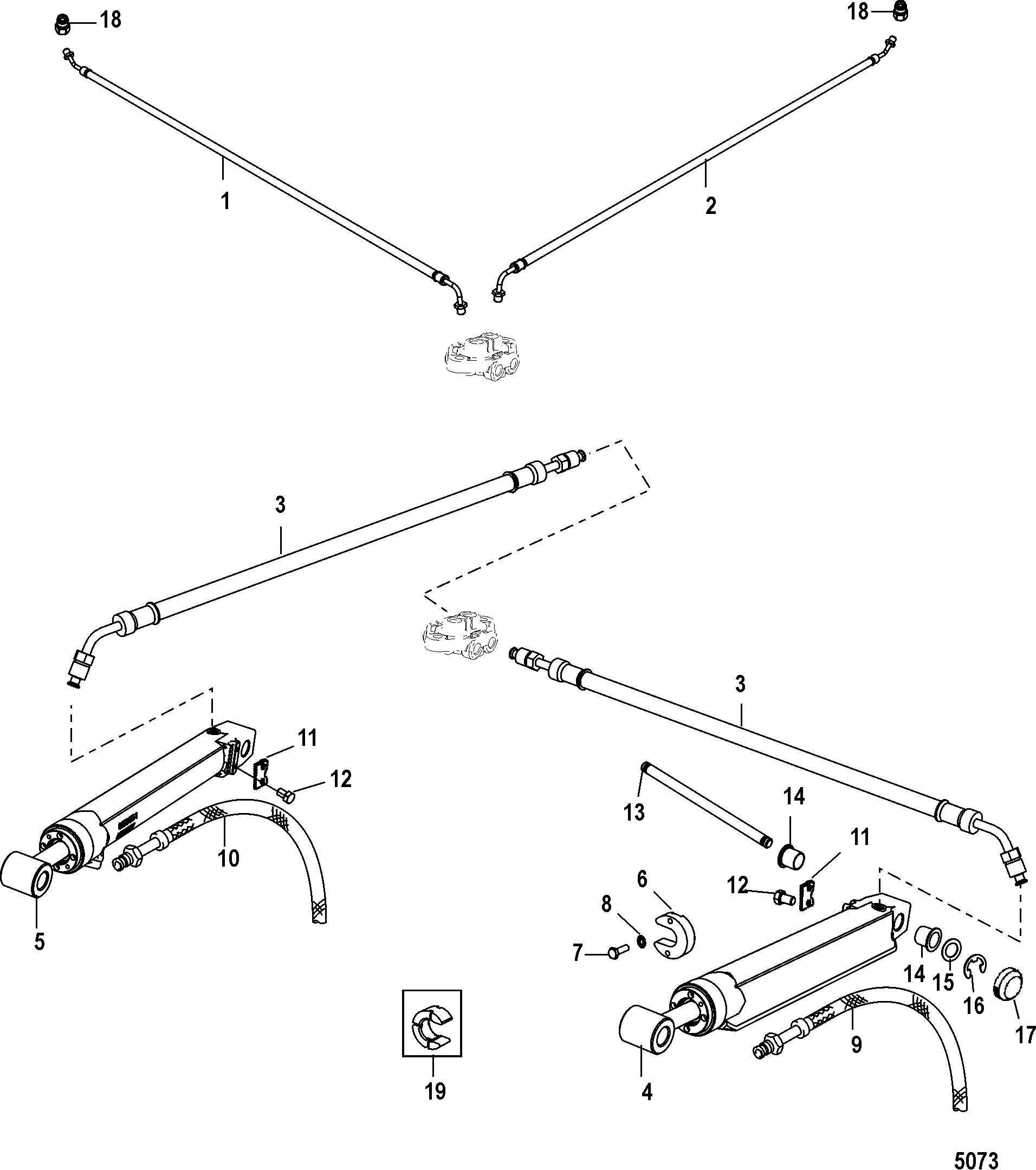

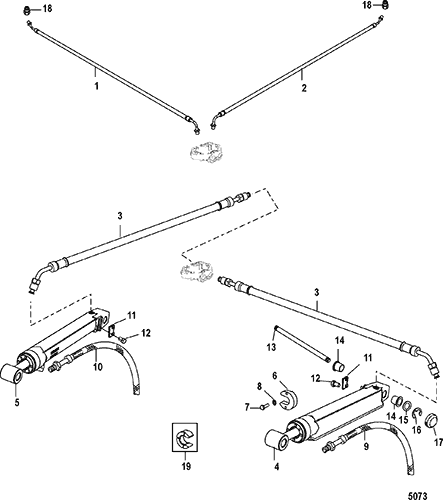

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart(Counter Rotation)
- Gear Housing Chart(Standard Rotation)
- Gear Housing(Driveshaft)(Counter Rotation)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mt Reservoir)(Design I-14336A8)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Pump-Motor (Top Mt Reservoir)(Design I-14336A20)
- Pump-Motor (Top Mt Reservoir)(Design II-14336A25)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Counter Rotation)
- Special Tools-Gear Housing (Standard Rotation)
- Special Tools-Transom
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-861127 | 676-9-71516 | HOSE, Black, Transom Manifold To Pump | 1 | (BLACK) | ||||
| 2 | 32-861128 | 676-9-71512 | HOSE, Gray, Transom Manifold To Pump | 1 | (GRAY) | ||||
| 3 | 32-99904Q | HOSE, Trim Cylinder To Manifold Assembbly | 2 | 32-99904 | |||||
| 4 | 815954A7 | 700-26520 | TRIM CYLINDER ASSEMBLY | 1 | (STARBOARD) 23 | ||||
| 5 | 815935A7 | 700-26530 | TRIM CYLINDER ASSEMBLY | 1 | (PORT) 23 | ||||
| - | 87399A3 | OVERHAUL KIT | 2 | ||||||
| - | 25-87400A2 | SEAL KIT | 2 | ||||||
| 6 | 806189Q1 | 700-12703 | ANODE ASSEMBLY | 2 | 806189A1 | ||||
| 7 | 10-806290 | 700-12832 | 525-10-806290 | SCREW, (#10-32 x .625) | 4 | ||||
| 8 | 13-69432 | 700-21491 | 525-13-69432 | LOCKWASHER, External (#10) | 4 | ||||
| 9 | 32-864960 | 676-9-71508 | HOSE, Trim Cylinder | 1 | 32-999021 | (STARBOARD) | |||
| 10 | 32-864959 | 676-9-71509 | HOSE, Trim Cylinder | 1 | 32-999031 | (PORT) | |||
| 11 | 85060 | PLATE | 2 | ||||||
| 12 | 10-85486 | SCREW, (.250-20 x .380) Stainless Steel | 4 | ||||||
| 13 | 17-815953A01 | PIN | 2 | 17-815953 | |||||
| 14 | 23-8159501 | BUSHING | 8 | 23-815950 | |||||
| 15 | 12-815952 | 700-21672 | WASHER | 4 | |||||
| 16 | 53-815949 | 700-21771 | E RING | 4 | |||||
| 17 | 19-815951 | 676-9-77201 | 700-26490 | CAP | 4 | ||||
| 18 | 22-808727 | CONNECTOR, (.437 UNF To .250 Inverted Flare) | 2 | ||||||
| 18 | 22-865590 | CONNECTOR, (.50 UNF To .25 Inverted Flare) | 2 | ||||||
| 19 | 15768A3 | SPACER KIT (UP) | 1 |
