Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Driveshaft Housing And Drive Gears

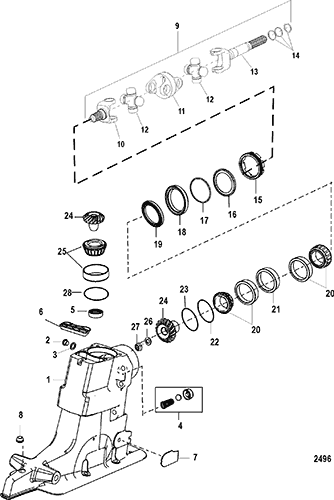

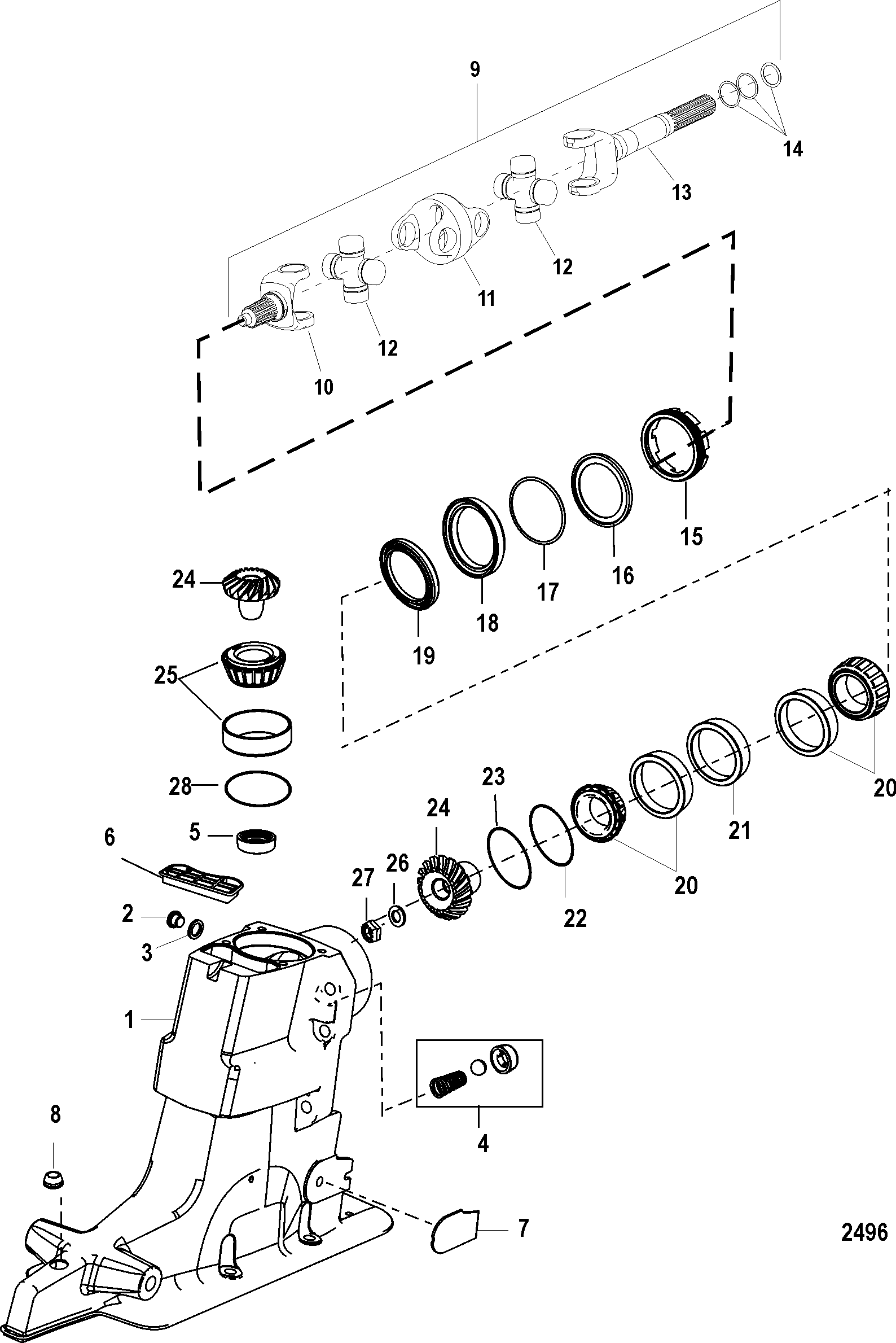

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart(Counter Rotation)
- Gear Housing Chart(Standard Rotation)
- Gear Housing(Driveshaft)(Counter Rotation)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mt Reservoir)(Design I-14336A8)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Pump-Motor (Top Mt Reservoir)(Design I-14336A20)
- Pump-Motor (Top Mt Reservoir)(Design II-14336A25)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Counter Rotation)
- Special Tools-Gear Housing (Standard Rotation)
- Special Tools-Transom
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1547-861063A4 | HOUSING ASSEMBLY, Driveshaft | 1 | ||||||
| 2 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) , Drain | 1 | 10-79953A2 | |||||
| 3 | 12-191833 | 525-12-191833 | WASHER, Fiber | 1 | 12-19183 | 17 | |||
| 4 | 24-17997A1 | 700-12930 | SPRING KIT | 1 | |||||
| 5 | 26-66302 | 700-85011 | SEAL, Oil | 2 | SN# 0M400410 & Below 15,18 | ||||
| 5 | 26-864319 | SEAL, Oil | 1 | SN# 0M400412 & Up 17 | |||||
| 6 | 861738 | PLUG | 1 | 821564 | No longer made, limited availability | ||||
| 7 | 8M2015937 | WEAR PAD | 1 | 814386 | (PORT) | ||||
| 7 | 879346T30 | WEAR PAD | 1 | 814387 | (STARBOARD) | ||||
| 8 | 19-824928001 | 525-19-824928001 | PLUG, Rubber | 1 | 19-824928 | ||||
| 9 | 864281A2 | 676-9-72408 | UNIVERSAL JOINT | 1 | 814819A7 | (Gray) Meritor Assembly | |||
| 9 | 864281A2 | 676-9-72408 | UNIVERSAL JOINT | 1 | (Black) GKN Assembly | ||||
| 10 | 853635 | 676-9-72407 | 700-28312 | YOKE, Gear End | 1 | (Gray) Meritor Assembly | |||
| 10 | 864282T | YOKE, Gear End | 1 | (Black) GKN Assembly | |||||
| 11 | 393831 | SOCKET, Center | 1 | 39383T | (Gray) Meritor Assembly | ||||
| 11 | 865503T | SOCKET, Center | 1 | (Black) GKN Assembly | |||||
| 12 | 805536A2 | 676-9-72406 | CROSS AND BEARING | 2 | (Gray) Meritor Assembly | ||||
| 12 | 865496A02 | 676-9-72413 | CROSS AND BEARING | 2 | 865493A01 | (Black) GKN Assembly | |||
| 13 | 814819A3 | 676-9-72401 | YOKE, Coupler End | 1 | (Gray) Meritor Assembly | ||||
| 13 | 864281A01 | YOKE, Coupler End | 1 | 865491A01 | (Black) GKN Assembly | ||||
| 14 | 25-29845 | 525-25-29845 | O-RING, (.924 x .103) | 2 | 17 | ||||
| 14 | 25-35027 | 676-9-76507 | 700-81180 | 525-25-35027 | O-RING, (1.046) | 1 | 17 | ||
| 15 | 8168112 | 676-9-72154 | RETAINER | 1 | 8168111 | ||||
| 16 | 35983 | 676-9-78105 | 700-28390 | RING | 1 | ||||
| 17 | 25-70937 | 676-9-76551 | 700-82380 | O-RING | 1 | 17 | |||
| 18 | 66081A2 | 700-28370 | CARRIER ASSEMBLY | 1 | |||||
| 19 | 26-823894 | 676-9-76102 | SEAL, Oil | 1 | 17 | ||||
| 20 | 31-30894A5 | 700-21522 | BEARING KIT, Roller | 1 | |||||
| 21 | 23-853649A1 | SPACER, Bearing Cup | 1 | 23-853649 | |||||
| 22 | 15-35980A1 | 700-23280 | SHIM SET | AR | |||||
| 23 | 15-71013 | 700-28380 | SHIM, Spacer | 1 | |||||
| 24 | 43-853641A2 | 700-11214 | GEAR KIT, (20-22 GEARS) | 1 | (1.47:1 RATIO) | ||||
| 24 | 43-853640A2 | 700-11222 | GEAR KIT, (24-24 GEARS) | 1 | (1.62:1 AND 2.00:1 RATIO) | ||||
| 24 | 43-853643A2 | 700-11233 | GEAR KIT, (17-19 GEARS) | 1 | (1.81:1 RATIO) | ||||
| 24 | 43-853642A2 | 700-11244 | GEAR KIT, (20-24 GEARS) | 1 | (1.94:1 AND 2.40:1 RATIO) | ||||
| 25 | 31-35990A1 | 676-9-75122 | BEARING ASSEMBLY, Roller | 1 | |||||
| 25 | 31-32573A1 | 700-21560 | BEARING ASSEMBLY, Roller | 1 | (1.47:1 RATIO ONLY) | ||||
| 26 | 12-45810 | 676-9-78107 | 700-28330 | WASHER | 1 | ||||
| 27 | 11-22339 | 700-28360 | 525-11-22339 | NUT, (.625-18) | 1 | ||||
| 28 | 15-36178A02 | SHIM SET | AR | 15-36178A1 | |||||
| - | 26-88397A1 | 700-87501 | SEAL KIT, Driveshaft Housing | - |
