Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Gear Housing (Prop Shaft)(Counter Rotation)

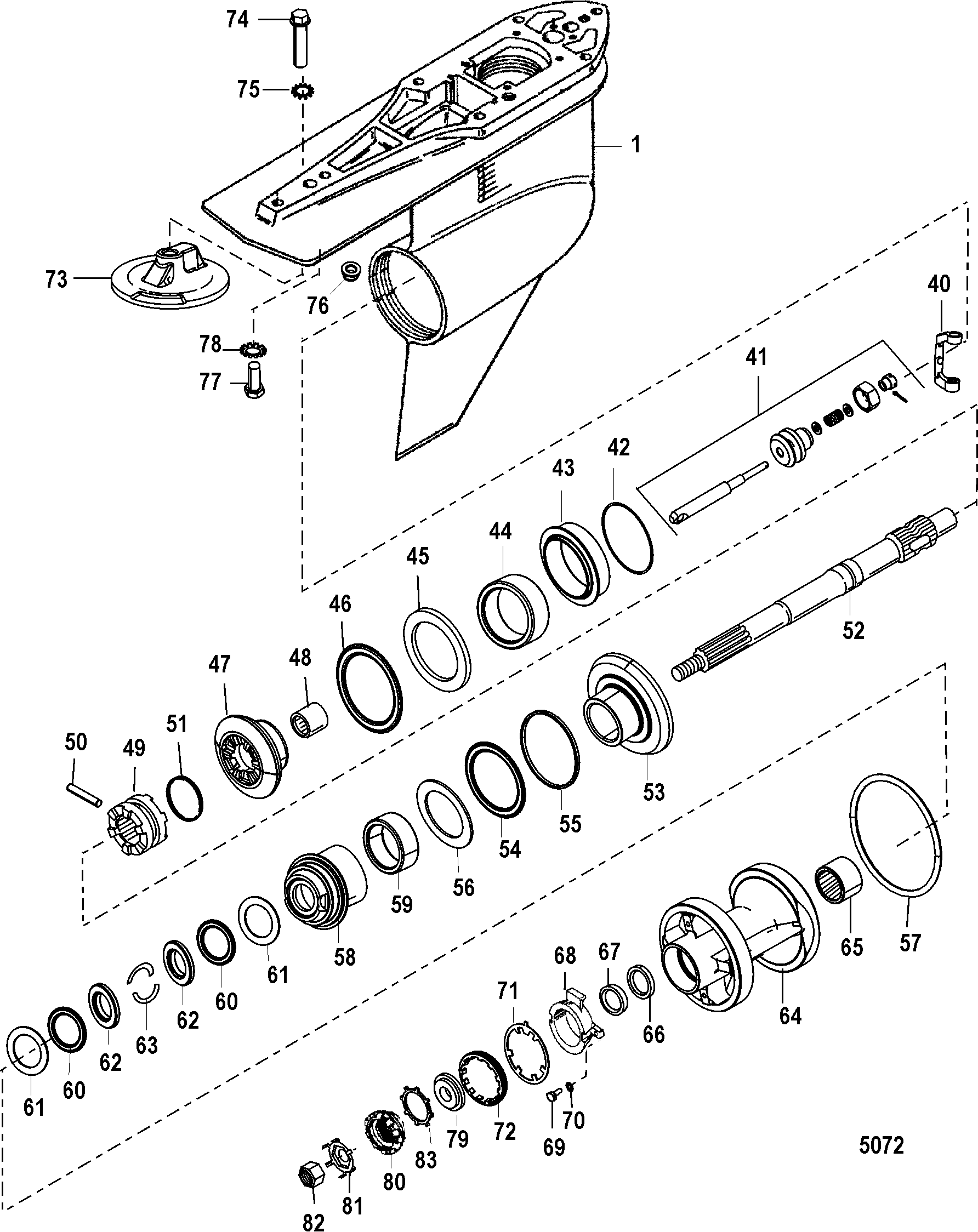

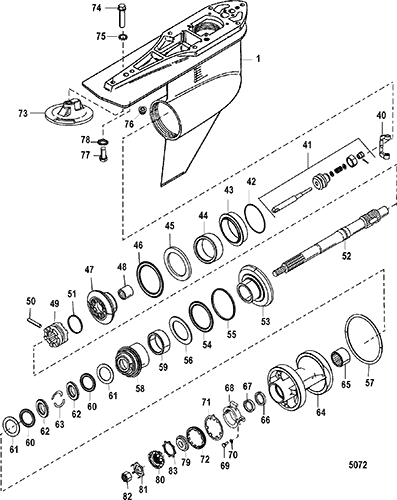

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1623-815822A47



GEAR HOUSING ASSEMBLY, Counter Rotation (Complete) 1
(1.47:1 - 1.62:1 - 1.81:1 - 1.94:1 RATIO)
- 1623-815822A52



GEAR HOUSING ASSEMBLY, Counter Rotation (Complete) 1
(2.00:1 Ratio)
1 1623-815822A36



GEAR HOUSING ASSEMBLY (Basic) 1

40 76865
676-9-78132 700-11040
CRANK, Shift, Shift 1

41 818349T1
676-9-78133 700-11030
SPOOL KIT, Shift 1 818349A1
42 15-44491A1

700-23221
SHIM SET AR

43 828830A2



ADAPTOR ASSEMBLY, Bearing 1

44 31-814653T



BEARING ASSEMBLY, Needle Rollers 1 31-814653
45 12-815481



THRUST WASHER 1

46 31-815480



BEARING, Thrust 1

47 43-828290T2



GEAR, Reverse 1 43-828290A2 (1.47:1 - 1.62:1 - 1.81:1 - 1.94:1 RATIO)
47 43-855652T1



GEAR, Reverse 1 43-855652A1 (2.00:1 RATIO)
48 31-15844

700-22770
BEARING ASSEMBLY, Roller 1

49 52-853594T
676-9-73474 700-11060
CLUTCH 1 52-853594
50 17-30632
676-9-78111 700-21131
PIN, Cross 1
No longer made, limited availability
51 24-30893
676-9-78135 700-11050
SPRING 1

52 44-824111



PROPELLER SHAFT 1

53 43-828289A1



GEAR SET, Forward -With Pinion 1
(1.47:1 - 1.62:1 - 1.81:1 - 1.94:1 RATIO)
53 43-855651A1



GEAR SET, Forward/Pinion, Forward -With Pinion 1
(2.00:1 RATIO)
54 31-815480



BEARING, Thrust 1

55 23-1761514



SPACER SHIM , (.206) AR

55 23-1761515



SPACER SHIM , (.208) AR

55 23-1761516



SPACER SHIM, (.210) AR

55 23-1761517



SPACER SHIM, (.212) AR

55 23-1761518



SPACER SHIM, (.214) AR

55 23-1761519



SPACER SHIM, (.216) AR

55 23-1761520



SPACER SHIM, (.218) AR

55 23-1761521



SPACER SHIM, (.220) AR

55 23-1761522



SPACER SHIM, (.222) AR

55 23-1761523



SPACER SHIM, (.224) AR

55 23-1761524



SPACER SHIM, (.226) AR

55 23-1761525



SPACER SHIM, (.228) AR

55 23-1761526



SPACER SHIM, (.230) AR

56 12-815481



THRUST WASHER 1

57 25-31534
676-9-76544
525-25-31534 O-RING 1
15
58 828831A3



ADAPTOR ASSEMBLY, Bearing 1

59 31-814653T



BEARING ASSEMBLY, Needle Rollers 1 31-814653
60 31-15842



BEARING, Thrust 2

61 12-18448



THRUST WASHER 2

62 8182911



RACE, Thrust 2

63 814605



KEEPER 2

64 818290A6



CARRIER ASSEMBLY, Bearing 1

65 31-30956T
676-9-75112 700-11410
BEARING, Needle 1 31-30956
66 26-14077
676-9-76119 700-85130
SEAL, Oil (Inside) 1
15
67 26-12224
676-9-76101 700-85700
SEAL, Oil (Outside) 1
15
68 806105Q1

700-11405
ANODE ASSEMBLY 1 806105A1
69 10-806290

700-12832 525-10-806290 SCREW, (#10-32 x .625) 2

70 13-69432

700-21491 525-13-69432 LOCKWASHER, External (#10) 2

71 14-18323
676-9-72640
525-14-18323 TAB WASHER 1

72 8M2011027

700-21120 525-8M2011027 RETAINER 1 79448
73 76214Q5

700-12710 525-76214Q5 ANODE KIT 1 76214A5
73 31640Q4

700-12670
TRIM TAB 1 316404 (1.94:1 RATIO ONLY)
74 10-806327

700-21741 525-10-806327 SCREW, (.437-14 x 1.750) 1

75 13-806210


525-13-806210 LOCKWASHER, (.437) 1

76 11-859135
676-9-78116

NUT, (.437-20) 4 11-817618
77 10-65210


525-10-65210 SCREW, (.375-16 x 1.00) 1

78 13-35479


525-13-35479 LOCKWASHER, (.375) 1

79 12-835467Q01

700-21301
THRUST HUB 1 12-8354671
80 12-31211Q03

700-21360
WASHER, Splined 1 12-31211A2
81 14-816629Q

700-21200
TAB WASHER 1 14-816629
82 11-52707Q1

700-21230
PROP NUT 1 11-827614
83 13-423511



LOCKWASHER, Toothed 1

-- 26-816575A3
676-9-74206 700-87511
SEAL KIT, Gear Housing --

- 888756Q01



ANODE KIT, Aluminium AR 888756A1
- 888755Q03



ANODE KIT, Magnesium AR 888755A1
