Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Gear Housing (Driveshaft)(Standard Rotation)

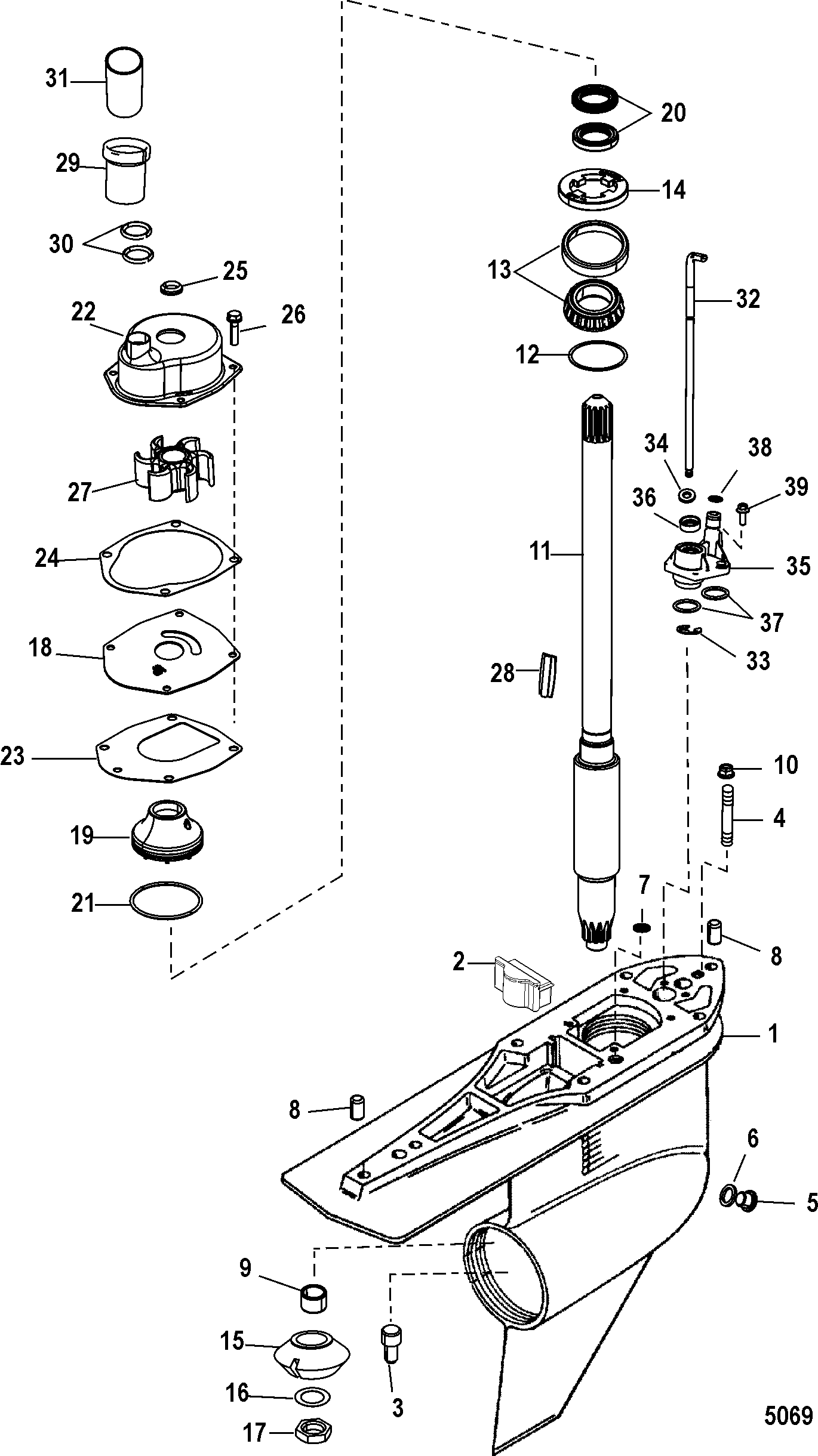

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1623-815822A47



GEAR HOUSING ASSEMBLY, Counter Rotation (COMPLETE) 1
(1.47:1 - 1.62:1 - 1.81:1 - 1.94:1 RATIO)
- 1623-815822A52



GEAR HOUSING ASSEMBLY, Counter Rotation (COMPLETE) 1
(2.00:1 RATIO)
1 1623-815822A36



GEAR HOUSING ASSEMBLY 1

2 821526001



FILLER BLOCK 1 821526
3 17-379721



PIN 1

4 16-57984



STUD, (.437-14/.437-20 x 2.380) 1

4 10-806327

700-21741 525-10-806327 SCREW, (.437-14 x 1.750) 1

5 22-8M0058389

700-21731 525-22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain 1 22-67892A1
6 12-191833


525-12-191833 WASHER, Fiber 1 12-19183 15,18
7 26-455771

525-26-455771
SEAL 1
15,17,18
8 17-43044



PIN, Dowel - Without Hole (.375 x .625) 2

9 31-42647A1
676-9-75121 700-21610
BEARING ASSEMBLY, Roller 1

10 11-859135
676-9-78116

NUT, (.437-20) 1 11-817618
11 45-853648
676-9-72463 700-11140
DRIVESHAFT 1
(1.47:1 AND 1.62:1 RATIO)
11 45-853648



DRIVESHAFT 1 45-853647 (1.81:1 - 1.94:1 AND 2.00:1 RATIO)
12 15-8M0063267



SHIM SET AR 15-42637A1
13 31-33138A1
676-9-75125 700-21584
BEARING ASSEMBLY, Tappered Roller 1

14 853651



RETAINER 1

15 NSS



NOT SOLD SEPARATE, GEAR-Pinion 1
This Part is not sold separately (SEE FORWARD GEAR ASSEMBLY)
16 12-92721
676-9-78108 700-32800
WASHER 1

17 11-35921
676-9-78103 700-11190
NUT, (.625-18) 1

18 8172761



FACEPLATE 1
18
19 807929A1
676-9-72642 700-12341
CARRIER ASSEMBLY 1 821759A4 18
20 26-66302

700-85011
SEAL, Oil 2
SN# 0M400411 & Below 15,18
20 26-864319



SEAL, Oil 1
SN# 0M400412 & Up 17
21 25-896523

700-81395
O-RING, (2.175 x .175) 1 25-90011 15,18
22 817275A1
676-9-48314 700-12415
HOUSING KIT, Water Pump 1
impeller not included 18
23 27-430331



GASKET 1
15,17
24 27-8172771



GASKET 1 27-817277 15,18
25 26-816575A2
676-9-43628 700-85590
SEAL KIT 1
seal tool not included 15,18
26 10-816928
676-9-78128 700-12834
SCREW, (M6 x 16) 4

27 47-43026T2
676-9-45307 700-89630
IMPELLER 1 47-430262 18
28 28-8M0032833



KEY 1 28-43037 18
29 816597A1
676-9-78110 700-12824
COUPLING ASSEMBLY 1

30 25-21836
676-9-76565

O-RING, (.796 x .139) 2
15,17,18
31 23-816583

700-12825
SLEEVE 1

32 815919A1
676-9-72477 700-21031
SHIFT SHAFT, Lower 1

33 53-29641
676-9-78109 700-21136
E RING 1

34 12-77674

700-30030
WASHER 1

35 23-815921A20

700-21017
BUSHING ASSEMBLY 1 23-815921A13
36 26-892361



SEAL, Oil 1 26-89236 15
37 25-36318
676-9-76574

O-RING, (.799) 2
15
38 25-62702

700-12065
O-RING, (.301 x .070) 1
15
39 10-816928
676-9-78128 700-12834
SCREW, (M6 x 16) 2

-- 26-816575A3
676-9-74206 700-87511
SEAL KIT, Gear Housing AR

-- 817275Q05



REBUILD KIT, Water Pump AR 817275A4
-- 26-88397A1

700-87501
SEAL KIT, Driveshaft Housing AR
