Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Power Trim Cylinder Repair Kits

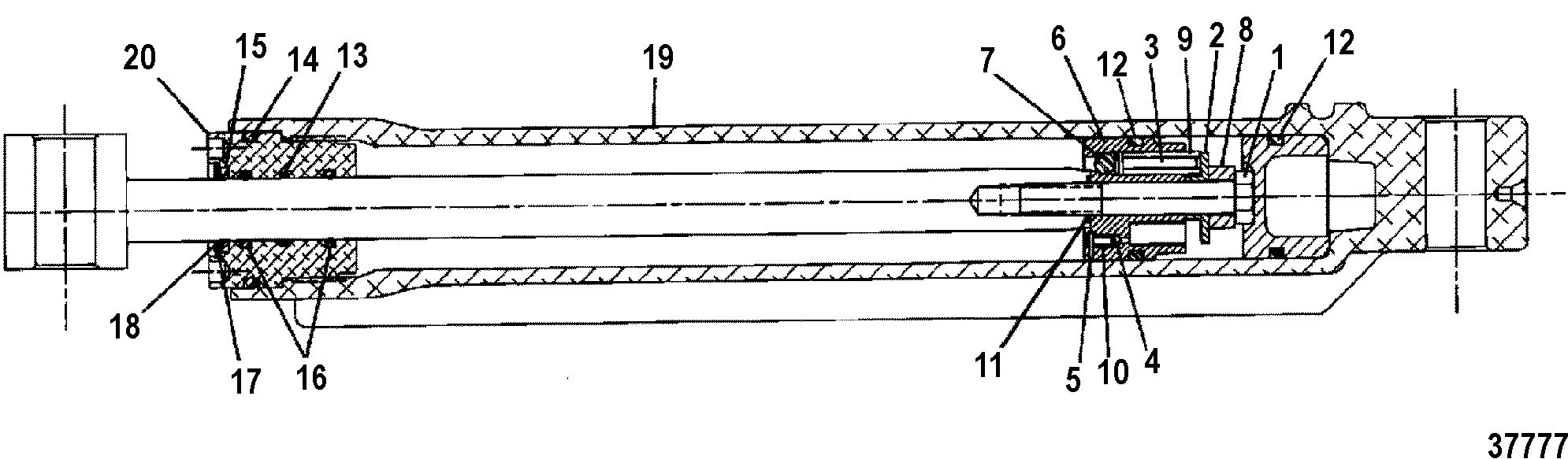

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: DO NOT SUBSTITUTE O RINGS AS THESE ARE OF SPECIAL MANUFACTURED MATERIAL. | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 87399A3 | OVERHAUL KIT | 1 | ||||||
| 1 | NSS | Not Sold Separate, SCREW | 1 | This part is not sold separately 2 | |||||
| 2 | NSS | Not Sold Separate, SPRING SEAT | 1 | This part is not sold separately 2 | |||||
| 3 | NSS | Not Sold Separate, VALVE SEAT | 3 | This part is not sold separately 2 | |||||
| 4 | NSS | Not Sold Separate, STEEL BALL (.109 DIA.) | 1 | This part is not sold separately 2 | |||||
| 5 | NSS | Not Sold Separate, SPRING PIN | 1 | This part is not sold separately 2 | |||||
| 6 | NSS | Not Sold Separate, SHOCK PISTON | 1 | This part is not sold separately 2 | |||||
| 7 | NSS | Not Sold Separate, STEEL BALL (.250 DIA.) | 3 | This part is not sold separately 2 | |||||
| 8 | NSS | Not Sold Separate, SPACER | 1 | This part is not sold separately 2 | |||||
| 9 | NSS | Not Sold Separate, COMPRESSION SPRING | 3 | This part is not sold separately 2 | |||||
| 10 | NSS | Not Sold Separate, SPRING | 1 | This part is not sold separately 2 | |||||
| - | 25-87400A2 | SEAL KIT | 1 | ||||||
| 11 | NSS | Not Sold Separate, O-RING | 1 | This part is not sold separately 2 | |||||
| 12 | NSS | Not Sold Separate, O-RING | 2 | This part is not sold separately 2 | |||||
| 13 | NSS | Not Sold Separate, SPRING | 2 | This part is not sold separately 2 | |||||
| 14 | NSS | Not Sold Separate, O-RING | 1 | This part is not sold separately 2 | |||||
| 15 | NSS | Not Sold Separate, SCRAPER ROD | 1 | This part is not sold separately 2 | |||||
| 16 | NSS | Not Sold Separate, O-RING | 2 | This part is not sold separately 2 | |||||
| 17 | NSS | Not Sold Separate, WASHER | 1 | This part is not sold separately 2 | |||||
| 18 | NSS | Not Sold Separate, RETAINING RING | 1 | This part is not sold separately 2 | |||||
| 19 | 815935T | TUBE | 1 | (PORT CYLINDER) | |||||
| 19 | 815954T | TUBE | 1 | (STARBOARD CYLINDER) | |||||
| 20 | 806191T | CAP | 2 | ||||||
