Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Gear Housing (Driveshaft)(Standard Rotation)

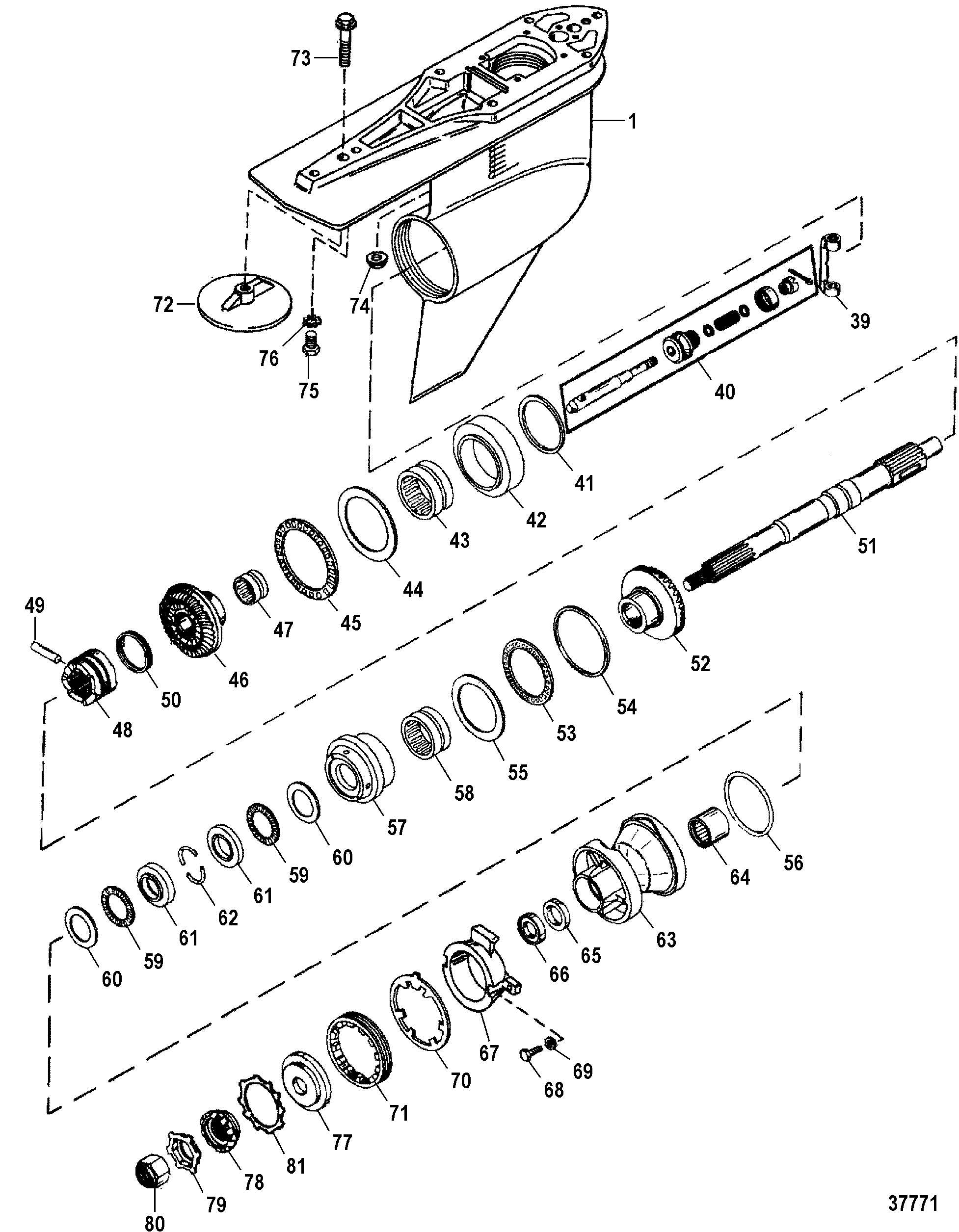

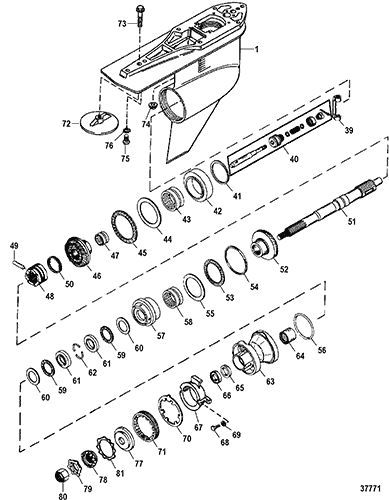

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1623-815822A47



GEAR HOUSING ASSEMBLY 1 1623-815822A33 (COMPLETE)
1 1623-815822A36



GEAR HOUSING ASSEMBLY 1

39 76865
676-9-78132 700-11040
CRANK, Shift 1

40 818349T1
676-9-78133 700-11030
SPOOL KIT 1 818349A1
41 15-44491A1

700-23221
SHIM SET AR
3
42 828830A2



ADAPTOR ASSEMBLY, Bearing 1

43 31-814653T



BEARING ASSEMBLY, Needle Rollers 1 31-814653
44 12-815481



THRUST WASHER 1

45 31-815480



BEARING, Thrust 1

46 43-828290T2



GEAR 1 43-828290A2
47 31-15844

700-22770
BEARING ASSEMBLY, Roller 1

48 52-853594T
676-9-73474 700-11060
SLIDING CLUTCH 1 52-824112
49 17-30632
676-9-78111 700-21131
PIN, Cross 1
No longer made, limited availability
50 24-30893
676-9-78135 700-11050
SPRING 1

51 44-824111



PROPELLER SHAFT 1

52 NSS



NOT SOLD SEPARATE, GEAR, FORWARD (SEE GEAR HOUSING (DRIVESHAFT)(COUNTER ROTATION) - REF. #15) 1
This Part is not sold separately 2
53 31-815480



BEARING, Thrust 1

54 23-1761514



SPACER SHIM , (.206) AR
3
54 23-1761515



SPACER SHIM , (.208) AR
3
54 23-1761516



SPACER SHIM, (.210) AR
3
54 23-1761517



SPACER SHIM, (.212) AR
3
54 23-1761518



SPACER SHIM, (.214) AR
3
54 23-1761519



SPACER SHIM, (.216) AR
3
54 23-1761520



SPACER SHIM, (.218) AR
3
54 23-1761521



SPACER SHIM, (.220) AR
3
54 23-1761522



SPACER SHIM, (.222) AR
3
54 23-1761523



SPACER SHIM, (.224) AR
3
54 23-1761524



SPACER SHIM, (.226) AR
3
54 23-1761525



SPACER SHIM, (.228) AR
3
54 23-1761526



SPACER SHIM, (.230) AR
3
55 12-815481



THRUST WASHER 1

56 25-31534
676-9-76544
525-25-31534 O-RING 1
5
57 828831A3



ADAPTOR ASSEMBLY, Bearing 1

58 31-814653T



BEARING ASSEMBLY, Needle Rollers 1 31-814653
59 31-15842



BEARING, Thrust 2

60 12-18448



THRUST WASHER 2

61 8182911



RACE, Thrust 2

62 814605



KEEPER 2

63 818290A6



CARRIER ASSEMBLY, Bearing 1

64 31-30956T
676-9-75112 700-11410
BEARING, Needle 1 31-30956
65 26-14077
676-9-76119 700-85130
SEAL, Oil 1
(INSIDE) 5
66 26-12224
676-9-76101 700-85700
SEAL, Oil 1
(OUTSIDE) 5
67 806105Q1

700-12702
ANODE ASSEMBLY 1 806105A1
68 10-806290

700-12832 525-10-806290 SCREW, (#10-32 x .625) 2

69 13-69432

700-21491 525-13-69432 LOCKWASHER, External (#10) 2

70 14-18323
676-9-72640
525-14-18323 TAB WASHER 1

71 8M2011027

700-21120 525-8M2011027 RETAINER 1 79448
72 76214Q5

700-12710 525-76214Q5 ANODE KIT 1 76214A5
72 31640Q4

700-12670
TRIM TAB 1 316404 (1.94:1 RATIO ONLY)
73 10-806327

700-21741 525-10-806327 SCREW, (.437-14 x 1.750) 1

74 11-859135
676-9-78116

NUT, (.437-20) 4 11-817618
75 10-65210


525-10-65210 SCREW, (.375-16 x 1.00) 1

76 13-35479


525-13-35479 LOCKWASHER, (.375) 1

77 12-835467Q01

700-21301
THRUST HUB 1 12-835467
78 12-31211Q03

700-21360
WASHER, Splined 1 12-31211A2
79 14-816629Q

700-21200
TAB WASHER 1 14-816629
80 11-52707Q1

700-21230
PROP NUT 1 11-827614
81 13-423511



LOCKWASHER, Toothed 1
- 26-816575A3
676-9-74206 700-87511
SEAL KIT, Gear Housing -
