Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Hydraulic Pump

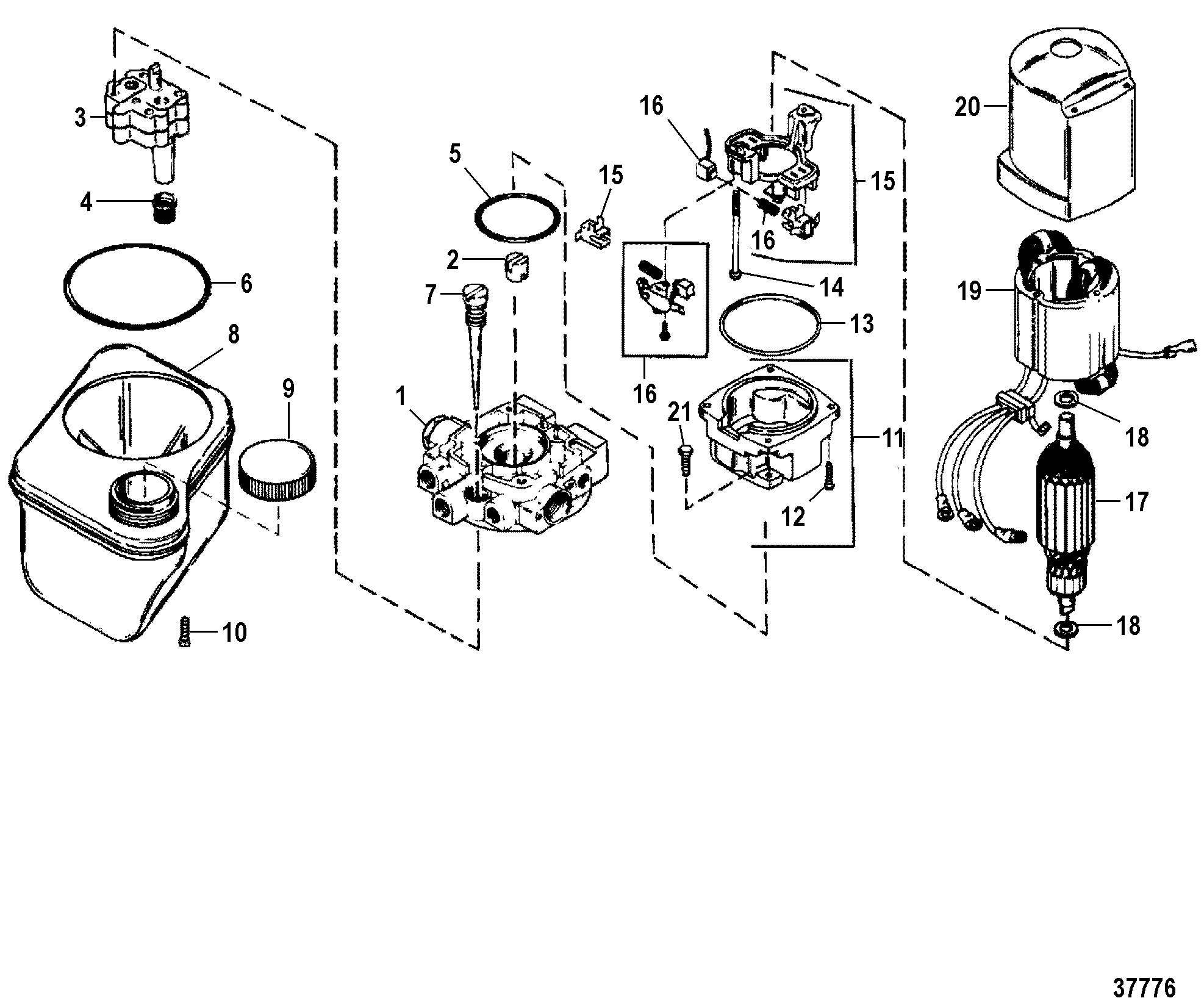

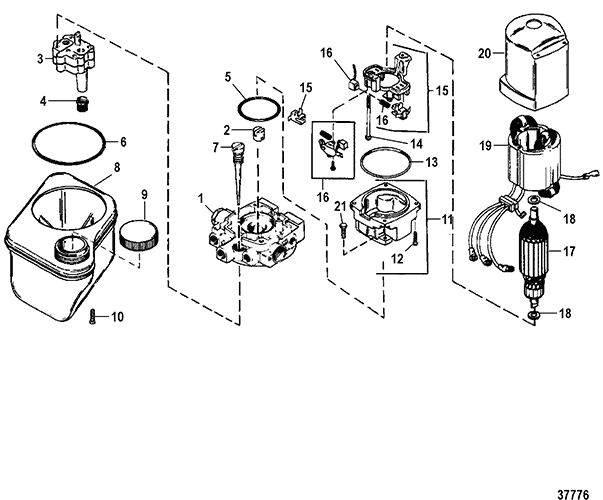

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 865380A13 | PUMP/MOTOR ASSEMBLY | 1 | 14336A8 | |||||
| 1 | 808728T | ADAPTOR | 1 | 808728 | |||||
| 2 | 803852 | COUPLING | 1 | 89493 | |||||
| 3 | 18529 | PUMP ASSEMBLY (INCLUDES SCREWS) | 1 | Does not include filters | |||||
| 4 | 35-89496 | FILTER | 1 | ||||||
| 5 | 25-89498 | O-RING | 1 | ||||||
| 6 | 25-17645 | O-RING | 1 | ||||||
| 7 | 41218 | DIPSTICK | 1 | This Part is No Longer Available | |||||
| 8 | 18525A1 | RESERVOIR | 1 | This Part is No Longer Available | |||||
| 9 | 36-865448A01 | CAP, Oil Reservoir (WITH VENT HOLE) | 1 | 36-18526 | |||||
| 10 | 10-18527 | SCREW (INCLUDES O-RING) | 1 | ||||||
| - | 891736T | 676-9-18207 | MOTOR | 1 | 17649 | ||||
| 11 | 891736T | END CAP ASSEMBLY | 1 | 17632 | |||||
| 12 | 891736T | SCREW | 4 | 10-17626 | |||||
| 13 | 891736T | O-RING | 1 | 25-17625 | |||||
| 14 | 891736T | SCREW | 2 | 10-17621 | |||||
| 15 | 17633 | HOLDER KIT | 1 | No longer made, limited availability | |||||
| 16 | 891736T | BRUSH KIT | 1 | 17631A1 | |||||
| 17 | 17623 | ARMATURE | 1 | ||||||
| 18 | 891736T | WASHER | 2 | 12-17653 | |||||
| 19 | 17624 | FIELD AND FRAME ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 20 | 891736T | COVER ASSEMBLY | 1 | 17622 | |||||
| 21 | 10-823444 | SCREW | 2 | ||||||
| - | 812498A1 | VALVE KIT, Relief | 1 | REPAIR KITS | |||||
| - | 95353A1 | VALVE KIT, Relief | 1 | REPAIR KITS | |||||
| - | 812499A1 | VALVE KIT, Relief | 1 | REPAIR KITS | |||||
| - | 18545A1 | REPAIR KIT | 1 |
