Alpha One (Gen. II) 1996-1997 - Serial 0F680000 Thru 0K999999 - Oil Reservoir Components

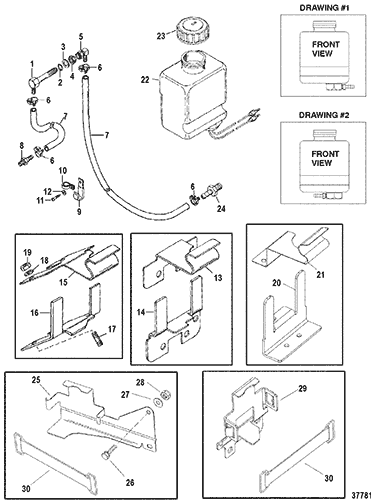

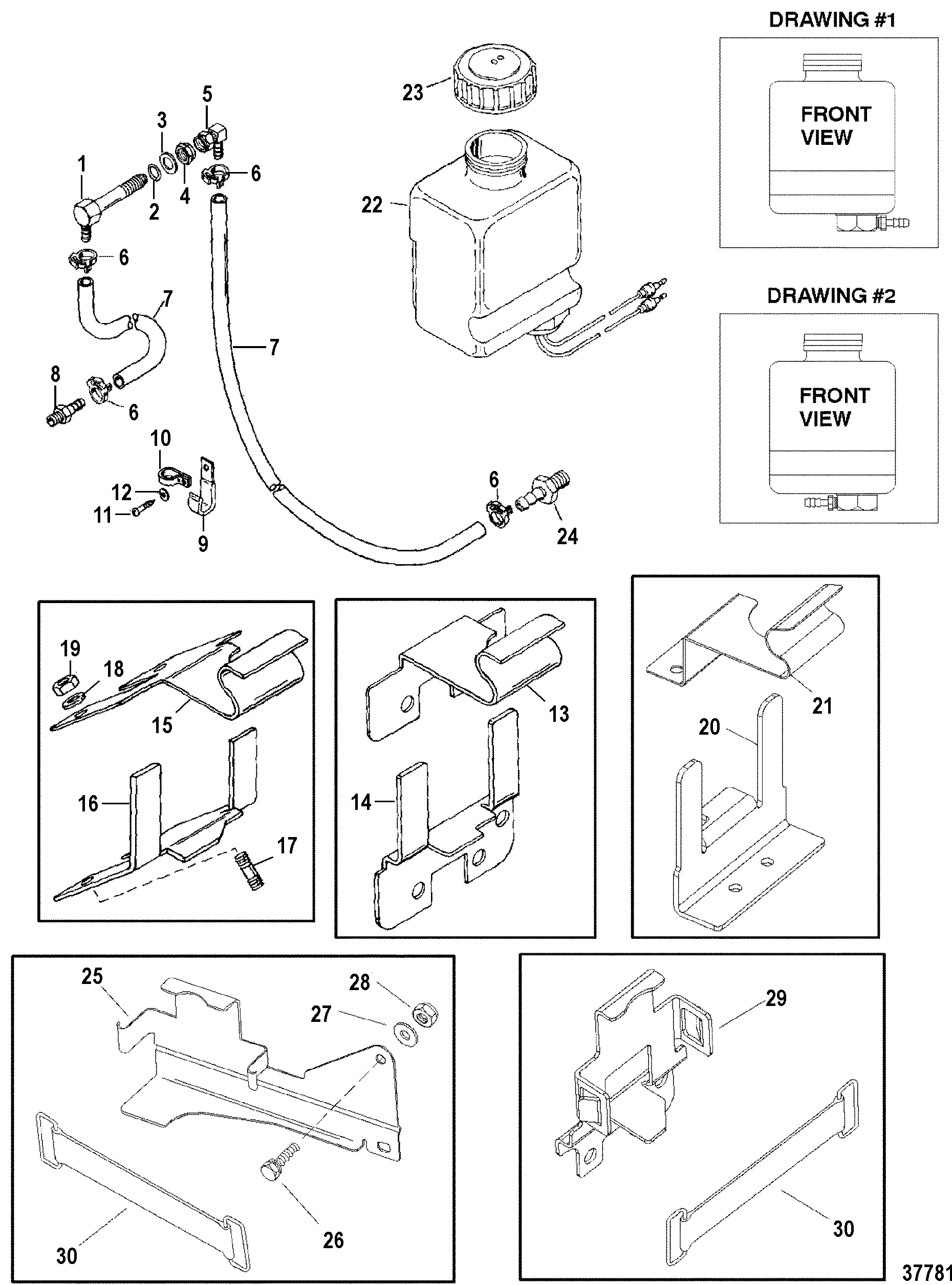

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Counter Rotation)
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Seal Kit, Driveshaft Housing
- Seal Kit, Gear Housing
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-18922 | CONNECTOR | 1 | ||||||
| 2 | 25-201951 | O-RING | 1 | 25-20195 | |||||
| 3 | 12-861854 | WASHER | 1 | 12-91964 | |||||
| 4 | 11-35053 | NUT, (.437-20) | 1 | ||||||
| 5 | 22-18923 | FITTING | 1 | ||||||
| 6 | 54-415825 | CLAMP, Nylon | 4 | ||||||
| 7 | 32-8M0062600 | HOSE, (54.00 Inches Bulk) | 2 | 32-1940971 | |||||
| 8 | 22-16739 | CONNECTOR | 1 | ||||||
| 9 | 54-642351 | J CLIP | 1 | ||||||
| 10 | 54-23567 | CLIP | 1 | ||||||
| 11 | 10-60605 | SCREW, (#10-16 x .750) | 1 | ||||||
| 12 | 69205 | C WASHER | 1 | ||||||
| 13 | 806293T | BRACKET, Clip | 1 | 3.0LX | |||||
| 14 | 860065A1 | BRACKET | 1 | 807024T | 3.0LX | ||||
| 15 | 806292T1 | BRACKET | 1 | 806292T | 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM | ||||
| 16 | 807025T | BRACKET | 1 | 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM | |||||
| 17 | 16-805357 | STUD, (.375-16 x 2.130) | 2 | 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM | |||||
| 18 | 12-20553 | WASHER, (.406 x .734 x .063) | 2 | 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM | |||||
| 19 | 11-32219 | NUT, (.375-16) | 2 | 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM | |||||
| 20 | 806649T | BRACKET | 1 | 5.7L (TBI)/5.7LX (TBI) | |||||
| 21 | 806650T | BRACKET | 1 | This Part is No Longer Available 350 MAG. (TBI)(GEN+)/262 MAG. (TBI)(GEN+) | |||||
| 22 | 806193A51 | RESERVOIR ASSEMBLY, Oil | 1 | 806193A3 | (FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1) | ||||
| 22 | 806193A46 | RESERVOIR | 1 | 806193A13 | (FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2) | ||||
| 23 | 36-8067271 | CAP, Drive Lube Monitor | 1 | 36-808625 | |||||
| 24 | 22-808624 | CONNECTOR | 1 | ||||||
| 25 | 807839T1 | BRACKET | 1 | 807839T | This Part is No Longer Available 4.3LX/4.3LXH/262 MAG. EFI | ||||
| 26 | 10-657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | 1 | 4.3LX/4.3LXH/262 MAG. EFI | |||||
| 27 | 12-69057 | WASHER, (.281 x .734 x .063) | 1 | 4.3LX/4.3LXH/262 MAG. EFI | |||||
| 28 | 11-8267088 | NUT, (.250-20) | 1 | 11-72008 | 4.3LX/4.3LXH/262 MAG. EFI | ||||
| 29 | 860065A1 | BRACKET KIT, Oil Bottle | 1 | 3.0LX/5.7L/LX & 350 MAGNUM (CARB & EFI) | |||||
| 30 | 808023T | STRAP, Bracket | 1 |
