R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Hydraulic Pump And Bracket Pretolite Pump

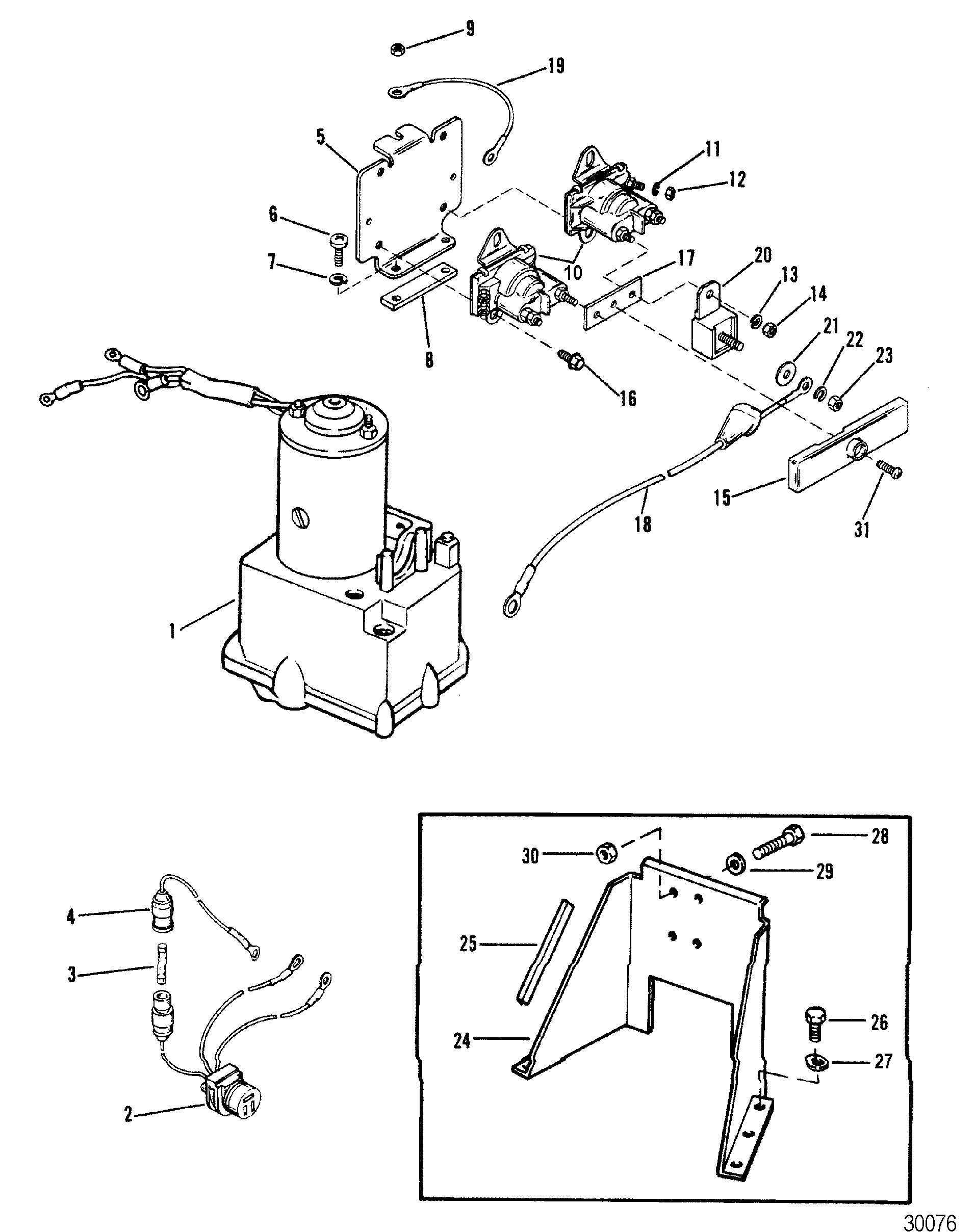

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865380A25         PUMP ASSEMBLY, Trim (PLASTIC RESERVOIR) 1 14336A17
2 84-79147A3         HARNESS ASSEMBLY 1

3 88-79091         FUSE, 20 Ampere 1

4 84-95084A2         CABLE ASSEMBLY, FUSE 1

5 94279         BRACKET, MOUNTING - STARTER SOLENOID 1   This Part is No Longer Available
6 10-48060         SCREW, (.250-14 x .625), MOUNTING BRACKET TO HYDRAULIC PUMP 2   This Part is No Longer Available
7 13-26992         LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW 2

8 23-96784         SPACER, MOUNTING BRACKET SCREW 1   This Part is No Longer Available
9 11-24656         NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT 1   This Part is No Longer Available
10 89-96158T 620-3387M 676-9-15112 700-72400   SOLENOID, TRIM PUMP 2

11 13-26995         LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL 4

12 11-26419         NUT, (#8-32) Brass, SOLENOID TERMINAL 4

13 13-26992         LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL 4

14 11-94330         NUT, (.250-20) Brass, SOLENOID TERMINAL 4

15 85-861680         INSULATOR, STARTER SOLENOID TERMINAL 1

16 10-41508         SCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOID TO MOUNTING BRACKET 4

17 94275         LINK, SOLENOID TO SOLENOID 1

18 84-79139A12         CABLE ASSEMBLY, Red-Positive 1

18 84-79138A1         CABLE ASSEMBLY (NEGATIVE) 1   This Part is No Longer Available
19 84-86322A15         CABLE ASSEMBLY, (5.50 Inches) Black, STARTER SOLENOID 2

20 79023T10         FUSE ASSEMBLY, 110 Ampere 1 88-79023A10
21 12-96457         WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL 1

22 13-26992         LOCKWASHER, (.250) Stainless Steel, FUSE TERMINAL 1

23 11-21825         NUT, (.250-28), FUSE TERMINAL 1

24 862548A1         BRACKET KIT, MOUNTING - HYD. PUMP 1
(FLOOR MOUNTED)
25 58491         CHANNEL, Rubber (4.00 Inches), PUMP MOUNTING BRACKET 2
26 10-59784         SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (1 inch) 6
27 12-29245     700-21490   WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET SCREW 6
28 10-35386         SCREW, (.312-18 x 1.00), HYDRAULIC PUMP TO MOUNTING BRACKET 4
29 13-39107     700-21496   LOCKWASHER, (.312-24), HYDRAULIC PUMP SCREW 4
30 11-21908         NUT, (.312-18) Cad Plated, HYDRAULIC PUMP SCREW 4
31 10-48409         SCREW, (#10-16 x .625) Stainless Steel, BOOT ATTACHING 1
