R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Gear Housing (Driveshaft) - R

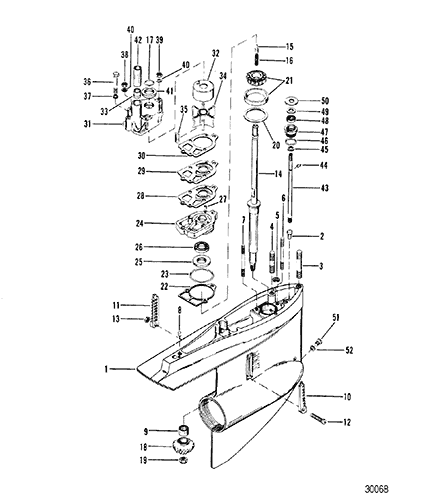

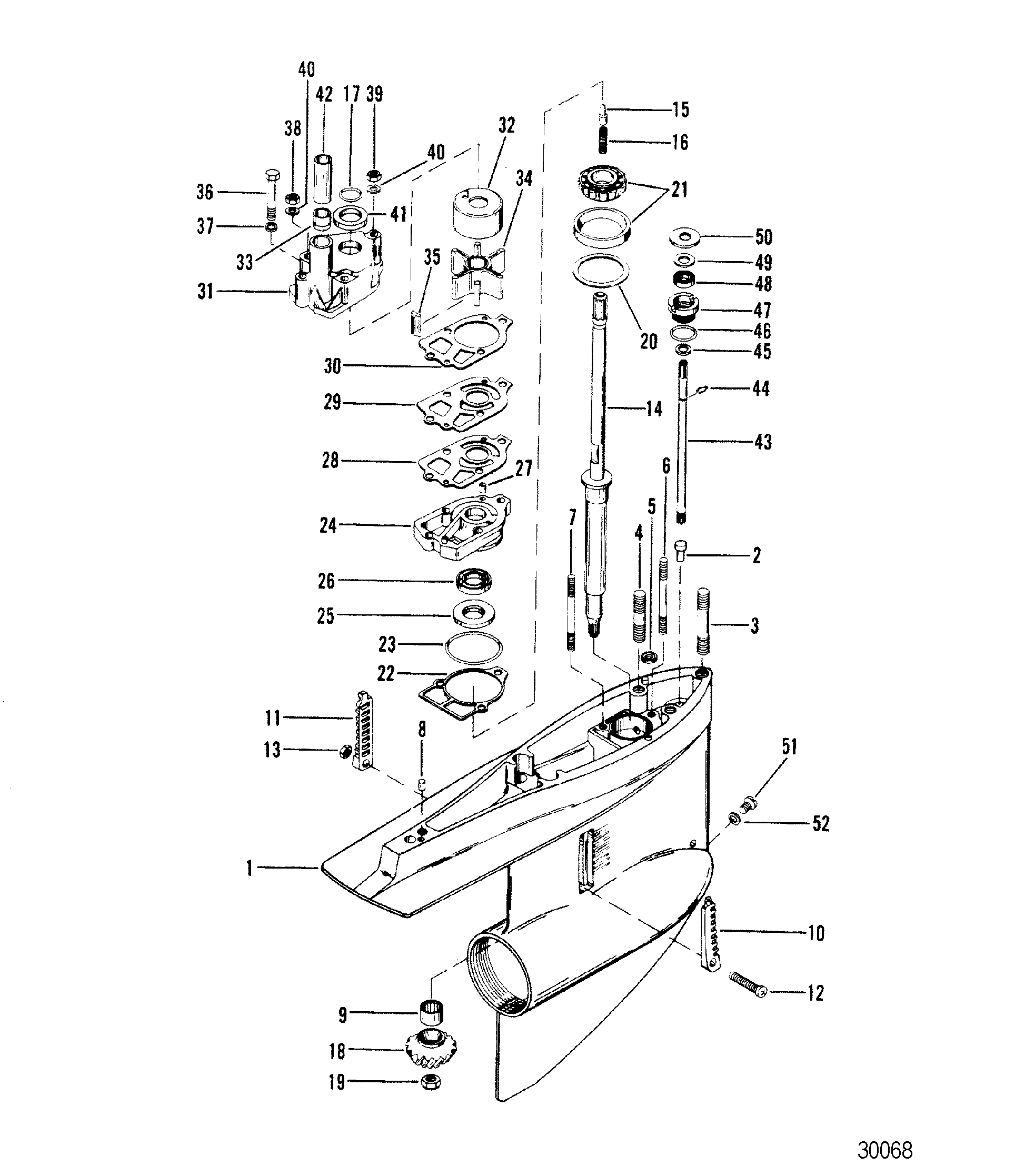

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| -- | 1623-8951A43 | GEAR HOUSING ASSEMBLY, COMPLETE | 1 | |||||||
| 1 | 1623-5356A4 | GEAR HOUSING ASSEMBLY | 1 | |||||||
| 2 | 17-379721 | PIN, SHIFT CRANK - GEAR HOUSING | 1 | |||||||
| 3 | 16-46911 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-3/16 inch) | 1 | |||||||
| 4 | 16-56298 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1-31/32 inch) | 2 | |||||||
| 5 | 26-455771 | SEAL, GEAR HOUSING | 1 | (Component of Driveshaft Housing Seal Kit 26-32511A1) (Component of Gear Repair Kits No. 1-5) 3,14,16,17 | ||||||
| 6 | 16-8M0034463 | STUD, (.312-18/.324-24 x 3.380), WATER PUMP GEAR HOUSING | 1 | 16-562972 | ||||||
| 7 | 16-69501 | STUD, WATER PUMP GEAR HOUSING (3-1/4 inch) | 2 | |||||||
| 8 | 17-35973 | PIN, Dowel, GEAR HOUSING TO DRIVE SHAFT HOUSING | 2 | |||||||
| 9 | 31-92366A1 | BEARING ASSEMBLY, Roller, DRIVE SHAFT | 1 | 2,16 | ||||||
| 10 | 66885 | INSERT, WATER PICKUP (STARBOARD SIDE) | 1 | |||||||
| 11 | 66884 | INSERT, WATER PICKUP (PORT SIDE) | 1 | |||||||
| 12 | 10-76156 | SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING | 1 | |||||||
| 13 | 11-859124 | NUT, (#10-32) Stainless Steel, INSERT SCREW | 1 | 11-45812 | ||||||
| 14 | 45-41939F1 | DRIVESHAFT ASSEMBLY | 1 | |||||||
| 15 | 17-30545 | PIN, DRIVESHAFT | 1 | |||||||
| 16 | 24-34576 | SPRING, COMPRESSION - DRIVESHAFT | 1 | |||||||
| 17 | 25-30613 | O-RING, UPPER - DRIVESHAFT | 1 | 3,16,17,22 | ||||||
| 18 | 43-96084A7 | GEAR SET (INCLUDES PINION AND FORWARD GEARS) | 1 | 17 | ||||||
| 19 | 11-35921 | 676-9-78103 | 700-11190 | NUT, (.625-18), PINION GEAR TO DRIVESHAFT | 1 | 16,17 | ||||
| 20 | 15-57007A1 | SHIM, DRIVESHAFT BEARING | AR | 16,17 | ||||||
| 21 | 31-53079A1 | BEARING ASSEMBLY, Tapered Roller, DRIVESHAFT | 1 | 16,17 | ||||||
| 22 | 27-856704 | GASKET, WATER PUMP TO GEAR HOUSING | 1 | 3,16,17 | ||||||
| 23 | 25-33145 | 676-9-76547 | 700-82260 | O-RING, (1.984 x .139), WATER PUMP | 1 | 3,16,17 | ||||
| 24 | 46-57234A1 | BASE ASSEMBLY, Water Pump | 1 | |||||||
| 25 | 26-89238 | SEAL, Oil, WATER PUMP | 1 | 3,16,17 | ||||||
| 26 | 26-16977 | SEAL, Oil, WATER PUMP | 1 | 3 | ||||||
| 27 | 17-35973 | PIN, Dowel, WATER PUMP | 2 | |||||||
| 28 | 27-856081 | GASKET, LOWER - WATER PUMP | 1 | (Component of Lower Seal Kit | 26-33144A2) 16,17,22,2 | |||||
| 29 | 324351 | FACE PLATE | 1 | 32435 | 22 | |||||
| 30 | 27-858524 | GASKET, UPPER - WATER PUMP | 1 | 3,16,17,22 | ||||||
| 31 | 46-96148T1 | BODY ASSEMBLY, Water Pump | 1 | |||||||
| 32 | 48752T | INSERT, WATER PUMP | 1 | |||||||
| 33 | 26-38970 | SEAL, RUBBER - WATER INLET TUBE | 1 | 19 | ||||||
| 34 | 47-89984T4 | IMPELLER, WATER PUMP | 1 | 22 | ||||||
| 35 | 8M0032834 | KEY, IMPELLER DRIVE | 1 | 28-56654 | 22 | |||||
| 36 | 10-30720 | SCREW, (.250-20 x 2.25), WATER PUMP TO GEAR HOUSING | 1 | No longer made, limited availability | ||||||
| 37 | 12-36001 | WASHER, WATER PUMP SCREW | 1 | |||||||
| 38 | 11-8267089 | NUT, (.250-28), WATER PUMP STUDS | 2 | |||||||
| 39 | 11-826709111 | NUT, (.312-24), WATER PUMP STUDS | 1 | 11-45592 | ||||||
| 40 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUD | 3 | |||||||
| 41 | 25-30271 | RING, Rubber, DRIVESHAFT | 1 | 22 | ||||||
| 42 | 23-29804T | SLEEVE, GUIDE - WATER INLET TUBE | 1 | 22 | ||||||
| 43 | 774811 | SHIFT SHAFT, LOWER | 1 | |||||||
| 44 | 53-29641 | 700-21136 | E RING, SHIFT SHAFT | 1 | ||||||
| 45 | 12-27880 | WASHER, LOWER SHIFT SHAFT AND CRANK | 1 | |||||||
| 46 | 25-25439 | O-RING, (.862 x .103), SHIFT SHAFT BUSHING | 1 | 16,17 | ||||||
| 47 | 23-30617A2 | 676-9-76133 | 700-21010 | BUSHING ASSEMBLY, SHIFT SHAFT | 1 | 16,17,3 | ||||
| 48 | 26-892361 | SEAL, Oil, SHIFT SHAFT BUSHING | 1 | 3,16,17 | ||||||
| 49 | 12-31266 | 700-30010 | WASHER, RUBBER - SHIFT SHAFT BUSHING | 1 | 3,16,17 | |||||
| 50 | 12-29395 | 676-9-78137 | 700-21800 | WASHER, (.390 x 1.00 x .06), SHIFT SHAFT | 1 | |||||
| 51 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) Drain | 1 | 10-79953Q2 | ||||||
| 52 | 12-191833 | WASHER, FILL/DRAIN SCREW | 1 | 12-191832 | 16,22,19,3 | |||||
| - | 46-96148A8 | BODY ASSEMBLY, Water Pump | - | |||||||
| - | 26-32511A1 | SEAL KIT | 1 | |||||||
| - | 26-33144A2 | SEAL KIT | - | |||||||
| - | 31-803068T1 | BEARING AND SEAL KIT | 1 | |||||||
| - | 43-803079T1 | REPAIR KIT, Lower Gear | 1 | |||||||
| - | 47-89984T5 | IMPELLER KIT, Water Pump | 1 | |||||||
| - | 46-57234T1 | PUMP KIT, Water | 1 |
