R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Auto Trim Components

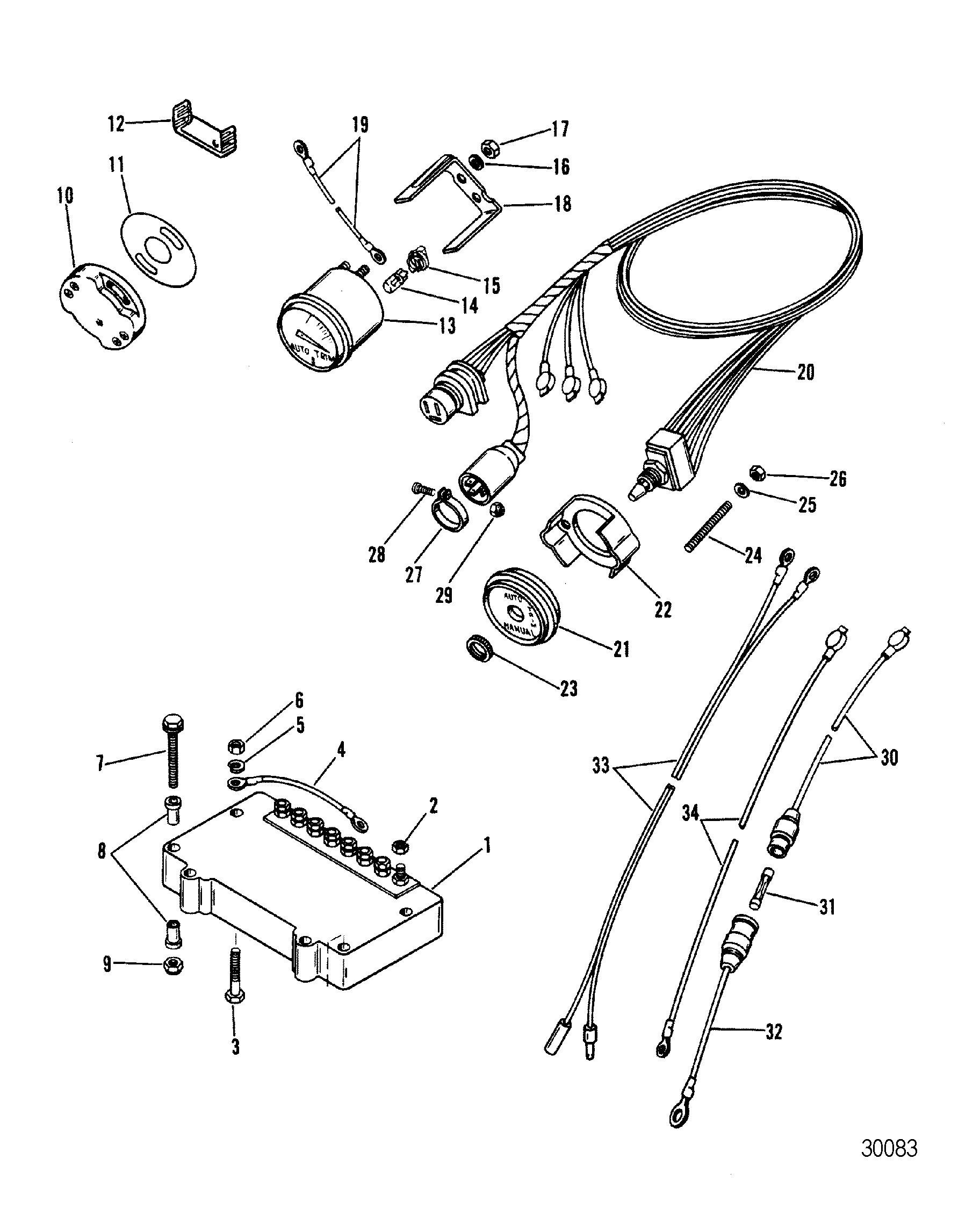

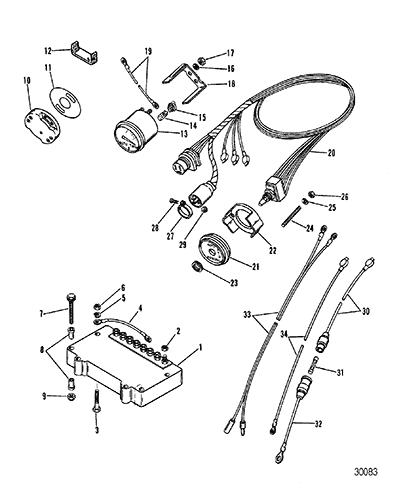

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 93732A6 | TRIM ASSEMBLY, Auto | 1 | This Part is No Longer Available | |||||
| 2 | 11-45076 | NUT, (#10-32) Brass, AUTO TRIM TERMINAL | 8 | ||||||
| 3 | 10-69067 | SCREW, (.250-20 x 1.375), BLACK WIRE TO AUTO TRIM | 1 | ||||||
| 4 | 84-86322A22 | CABLE ASSEMBLY (BLACK) | 1 | This Part is No Longer Available | |||||
| 5 | 13-78968 | 676-9-78144 | LOCKWASHER, Internal (.250), WIRE SCREW | 1 | |||||
| 6 | 11-64015 | NUT, (.250-20), WIRE SCREW | 1 | ||||||
| 7 | 10-76502 | SCREW, (.190-32 x 1.880), AUTO TRIM TO BRACKET | 3 | ||||||
| 8 | 23-42574 | BUSHING, AUTO TRIM SCREW | 6 | This Part is No Longer Available | |||||
| 9 | 11-20190 | NUT, (#10-32), AUTO TRIM SCREW | 3 | ||||||
| 10 | 805320A2 | SENDER ASSEMBLY, Trim | 1 | ||||||
| 11 | 85-63990 | INSULATOR, TRIM SENDER | 1 | ||||||
| 12 | 79146 | RETAINER | 2 | ||||||
| 13 | 79-99535A2 | GAUGE ASSEMBLY, AUTO TRIM | 1 | This Part is No Longer Available | |||||
| 14 | 88-72729 | LIGHT BULB, Wedge Base (14V - .19W) | 1 | ||||||
| 15 | 88-79888 | SOCKET, Light Bulb | 1 | ||||||
| 16 | 12-26427 | WASHER, GAUGE TERMINAL | 2 | This Part is No Longer Available | |||||
| 17 | 11-26419 | NUT, (#8-32) Brass, GAUGE TERMINAL | 5 | ||||||
| 18 | 79480 | BRACKET | 2 | ||||||
| 19 | 84-86322A3 | CABLE ASSEMBLY, (2.00 Feet) Black | 1 | ||||||
| 19 | 84-86323A2 | CABLE ASSEMBLY, (2.00 Feet) Purple | 1 | ||||||
| 20 | 84-88456A3 | HARNESS ASSEMBLY, AUTO TRIM | 1 | This Part is No Longer Available | |||||
| 21 | 85218A3 | PLATE ASSEMBLY, SWITCH MOUNTING | 1 | This Part is No Longer Available | |||||
| 22 | 76424 | BRACKET, SWITCH MOUNTING | 1 | ||||||
| 23 | 49440 | NUT, (.468-32), AUTO TRIM SWITCH | 1 | ||||||
| 24 | 16-55422 | STUD, (#10-32 x 2.00), PLATE MOUNTING | 2 | ||||||
| 25 | 12-24676 | WASHER, (.200 x .440 x .032), PLATE STUD | 2 | ||||||
| 26 | 11-68219 | NUT, (#10-32) Stainless Steel, PLATE STUD | 2 | ||||||
| 27 | 95814 | STRAP, WIRING HARNESS CONNECTOR | 1 | ||||||
| 28 | 10-29227 | SCREW, (#8-32 x 0.50), WIRING HARNESS CLAMP | 1 | ||||||
| 29 | 11-34388 | NUT, CLAMP SCREW | 1 | ||||||
| 30 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip, FUSE | 1 | ||||||
| 31 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 32 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red, FUSE | 1 | ||||||
| 33 | 84-88974A1 | WIRE ASSEMBLY (BLACK) | 1 | This Part is No Longer Available | |||||
| 34 | 84-86322A6 | CABLE ASSEMBLY (BLACK) | 1 | This Part is No Longer Available |
