R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Gimbal Housing Square-Splined Upper Swivel Shaft

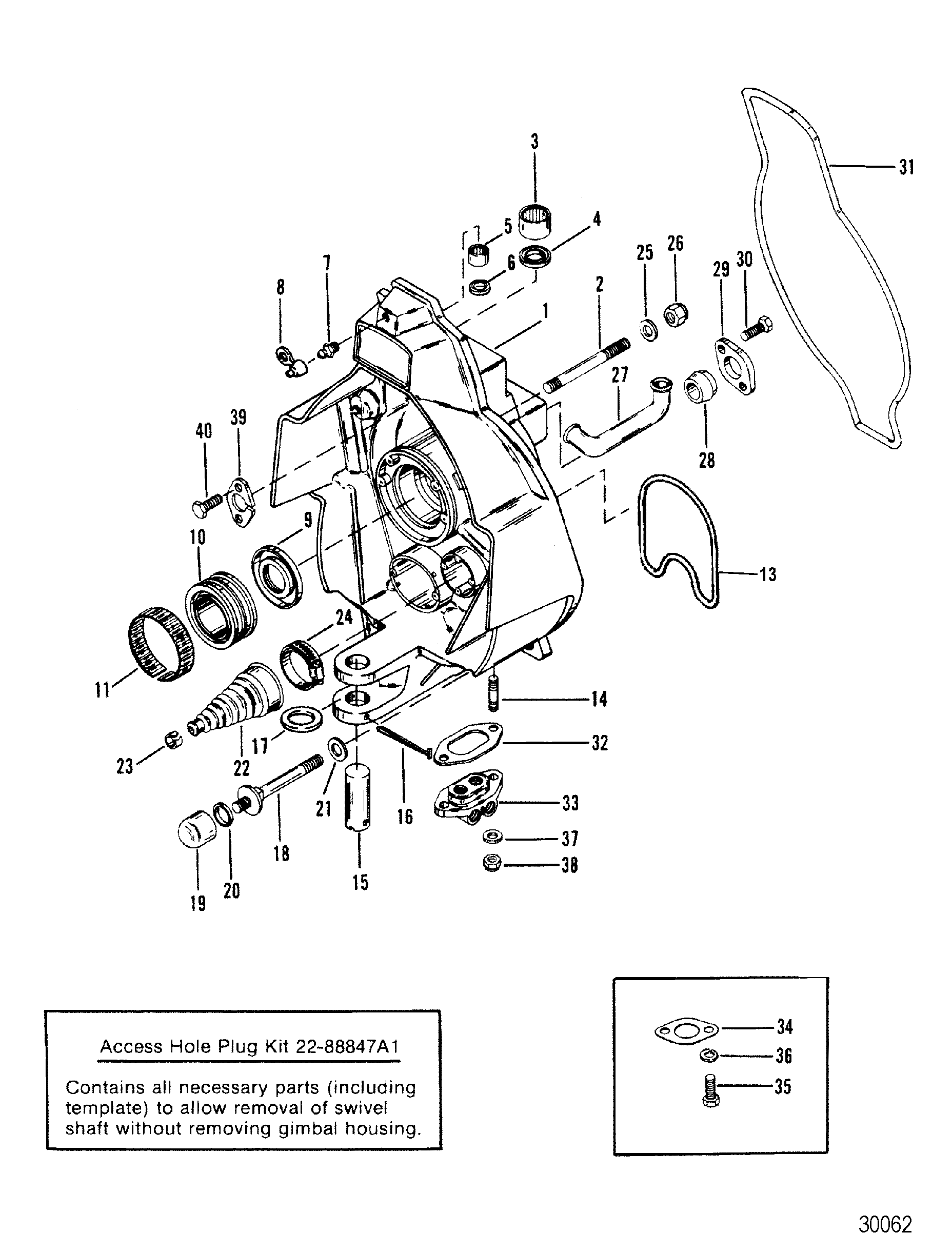

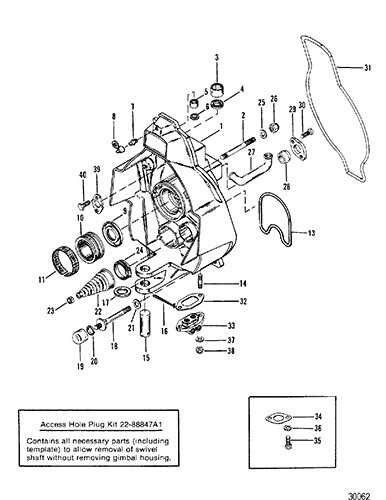

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0065152 | GIMBAL HOUSING ASSEMBLY | 1 | 94989A6 | |||||
| 2 | 16-56296 | STUD, (.437-20 x 4.750), GIMBAL HOUSING TO TRANSOM PLATE | 2 | ||||||
| 3 | 31-32536 | BEARING, GIMBAL HOUSING (LOWER) | 1 | ||||||
| 4 | 26-32911 | SEAL, Oil, LOWER GIMBAL HOUSING BEARING | 2 | ||||||
| 5 | 31-21145 | BEARING, Roller, GIMBAL HOUSING (UPPER) | 1 | ||||||
| 6 | 26-54925 | SEAL, Oil, UPPER GIMBAL HOUSING BEARING | 1 | ||||||
| 7 | 22-74036 | FITTING, Grease, GIMBAL HOUSING | 2 | (Use with greased bearing) | |||||
| 7 | 8M2015913 | PLUG, (.250-28 x .320) | 2 | (Use with non-greased bearing) | |||||
| 8 | 19-77633Q | LUBRICAP, GIMBAL HOUSING GREASE FITTING | 2 | ||||||
| 9 | 26-88416 | SEAL, Oil, GIMBAL HOUSING | 1 | ||||||
| 10 | 879194A02 | BEARING ASSEMBLY, GIMBAL HOUSING | 1 | 30-60794A4 | 12 | ||||
| 11 | 61075 | TOLERANCE RING, GIMBAL HOUSING BEARING | 1 | 12 | |||||
| 13 | 41802 | SEAL, Rubber, EXHAUST SEAL | 1 | ||||||
| 14 | 16-56766 | STUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSING | 2 | ||||||
| 15 | 17-45212 | PIN, Lower Swivel, GIMBAL HOUSING TO GIMBAL RING | 1 | ||||||
| 16 | 18-34212 | COTTER PIN, LOWER SWIVEL PIN | 1 | ||||||
| 17 | 12-32518 | WASHER, LOWER SWIVEL PIN | 1 | ||||||
| 18 | 55989A8 | BOLT ASSEMBLY, ANODIC | 2 | ||||||
| 19 | 55989Q9 | ANODE KIT, BOLT | 2 | ||||||
| 20 | 12-56085 | WASHER, ANODIC BOLT | 2 | ||||||
| 21 | 12-32620 | WASHER, GIMBAL HOUSING BOLT | 2 | ||||||
| 22 | 74639A2 | BELLOWS ASSEMBLY, SHIFT ACTUATING CABLE | 1 | 11,12 | |||||
| 23 | 54-866507 | 676-9-73115 | 700-21790 | CLAMP, ACTUATING CABLE BELLOWS | 1 | 54-38863 | 11,12 | ||
| 24 | 54-815504320 | CLAMP, Worm Gear, ACTUATING CABLE BELLOWS | 1 | 11,12 | |||||
| 25 | 12-34567 | WASHER, GIMBAL HOUSING STUD | 2 | ||||||
| 26 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUD | 2 | 11-82671015 | ||||
| 27 | 32-869071 | TUBE, WATER -5/8 inch I.D. WATER TUBE | 1 | No longer made, limited availability | |||||
| 27 | 32-416721 | TUBE, Water, WATER (3/4 inch I.D. WATER TUBE) | 1 | ||||||
| 28 | 23-28055 | BUSHING, RUBBER - WATER TUBE (5/8 inch I.D. WATER TUBE) | 1 | This Part is No Longer Available | |||||
| 28 | 23-416751 | BUSHING, RUBBER - WATER TUBE (3/4 inch I.D. WATER TUBE) | 1 | ||||||
| 29 | 32517 | COVER, WATER TUBE (5/8 inch I.D. WATER TUBE) | 1 | ||||||
| 29 | 8M0046322 | COVER, WATER TUBE (3/4 inch I.D. WATER TUBE) | 1 | 41673 | |||||
| 30 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING | 2 | ||||||
| 31 | 65533A1 | SEAL, GIMBAL HOUSING TO TRANSOM | 1 | ||||||
| 32 | 27-988231 | GASKET, HYDRAULIC CONNECTOR | 1 | ||||||
| 33 | 8M0080805 | MANIFOLD ASSEMBLY, HYDRAULIC | 1 | 98825A4 | |||||
| 34 | 27-995061 | GASKET, CONNECTOR COVER | 1 | ||||||
| 35 | 10-28636 | SCREW, (.250-20 x .750), CONNECTOR COVER | 2 | ||||||
| 36 | 13-78968 | LOCKWASHER, Internal (.250), CONNECTOR COVER | 2 | ||||||
| 37 | 13-78968 | LOCKWASHER, Internal (.250), HYDRAULIC CONNECTOR STUD | 2 | ||||||
| 38 | 11-8267119 | NUT, (.250-28), HYDRAULIC CONNECTOR STUD | 2 | ||||||
| 39 | 57322T | COVER, GIMBAL HOUSING | 1 | ||||||
| 40 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING | 2 | ||||||
| - | 865436A03 | CABLE KIT, Shift | 1 | 19543T1 | |||||
| - | 30-803097T1 | SEAL KIT, Transom (with Exhaust Bellow) | 1 | ||||||
| - | 30-803098T1 | SEAL KIT, Transom (with Exhaust Tube) | 1 |
