350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Starter Motor And Alternator

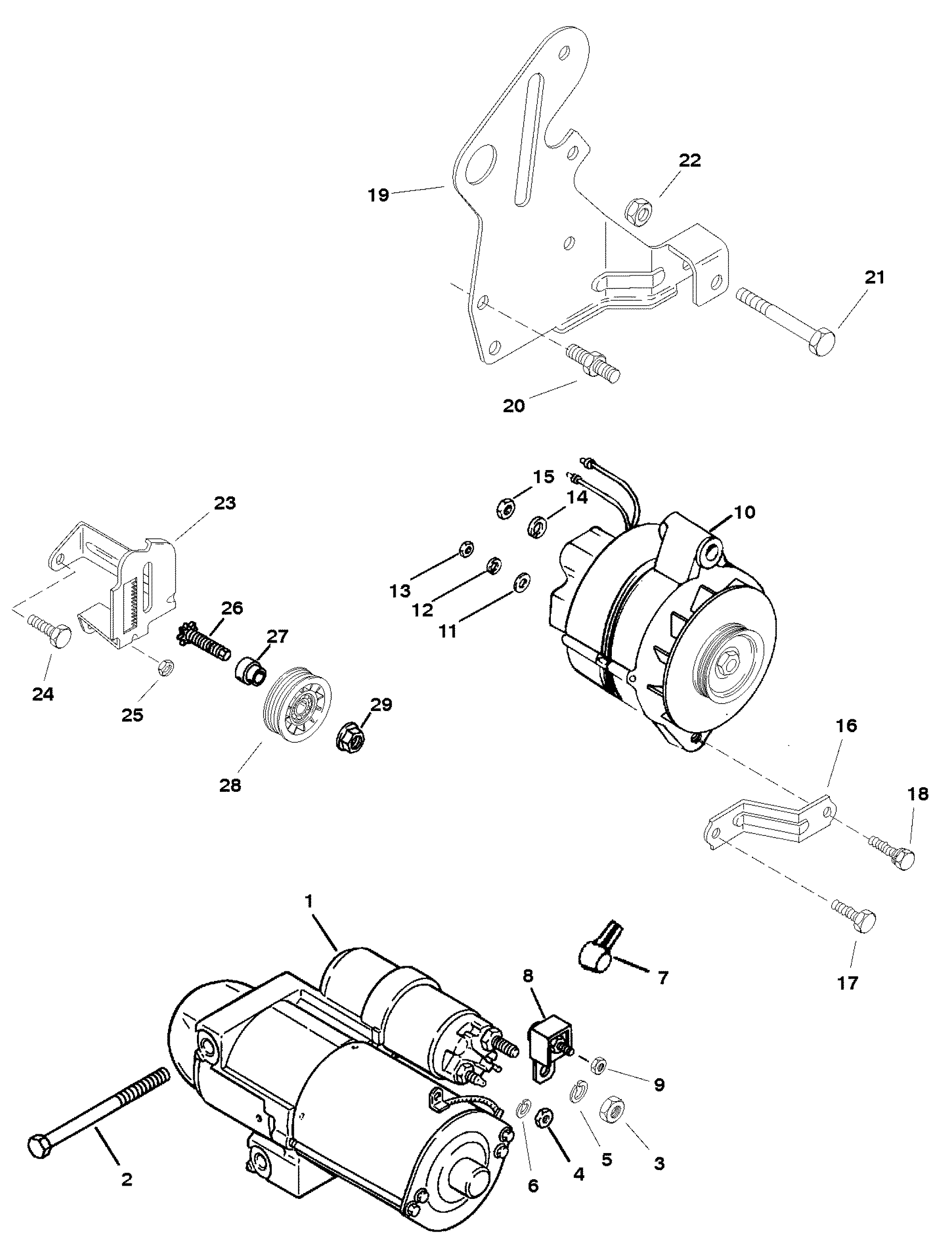

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exh. Manifold and Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Intake Manifold And Fuel Rails
- Intake Plenum And Flame Arrestor
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Standard Cooling System
- Starter Motor
- Starter Motor And Alternator
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | 620-5399M | 676-9-15907 | 602-10099MD | 602-10099HD | STARTER MOTOR ASSEMBLY | 1 | 50-806964A3 | (SEE "STARTER MOTOR" FOR BREAKDOWN) | |
| 2 | 10-8053432 | SCREW (3/8-16 X 4-3/8 IN.) | 2 | |||||||
| 3 | 11-806949 | NUT (M8-1.5) | 1 | |||||||
| 4 | 11-400211 | NUT (M5-0.8) | 1 | |||||||
| 5 | 13-39107 | 700-21496 | LOCKWASHER (5/16 IN.) | 1 | ||||||
| 6 | 13-26996 | LOCKWASHER (#10) | 1 | |||||||
| 7 | 85-79695T | BOOT-INSULATOR | 1 | 85-79695 | ||||||
| 8 | 88-79023A91 | 676-9-15510 | FUSE (90 AMP.) | 1 | ||||||
| 9 | 11-21825 | NUT (1/4-28) | 1 | |||||||
| 10 | 807653T | 676-9-19104 | 602-20057 | ALTERNATOR ASSEMBLY | 1 | (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN) | ||||
| 11 | 12-96457 | WASHER-PHENOLIC | 1 | |||||||
| 12 | 13-26996 | LOCKWASHER (#10) | 1 | |||||||
| 13 | 11-79989 | NUT (#10-24) | 1 | |||||||
| 14 | 13-26992 | LOCKWASHER (1/4 IN.) | 1 | |||||||
| 15 | 11-94330 | NUT (1/4-20) | 1 | |||||||
| 16 | 807750T | BRACE | 1 | |||||||
| 17 | 10-98261 | SCREW (3/8-16 X 3/4 IN.) | 1 | |||||||
| 18 | 10-29198 | SCREW & LOCKWASHER (5/16-18 X 7/8 IN.) | 1 | |||||||
| 19 | 860370T | BRACKET-ALTERNATOR/POWER STEERING | 1 | |||||||
| 20 | 16-860102 | STUD | 3 | |||||||
| 21 | 10-56743 | SCREW (3/8-24 X 3-1/8 IN.) | 1 | |||||||
| 22 | 11-23161 | NUT (3/8-24) | 1 | |||||||
| 23 | 807767T | IDLER BRACKET | 1 | |||||||
| 24 | 10-98261 | SCREW (3/8-16 X 3/4 IN.) | 1 | |||||||
| 25 | 11-29250 | NUT (5/16-24) | 1 | |||||||
| 26 | 43-8183812 | PINION STUD | 1 | |||||||
| 27 | 865193 | BUSHING | 1 | 818380 | ||||||
| 28 | 807757T | PULLEY | 1 | |||||||
| 29 | 11-859135 | 676-9-78116 | NUT (7/16-20) | 1 | 11-817618 |
