350 Mag Bravo MPI GM V-8 1995 - Serial 0F415189 Thru 0F601999 - Thermostat Housing (Standard Cooling)

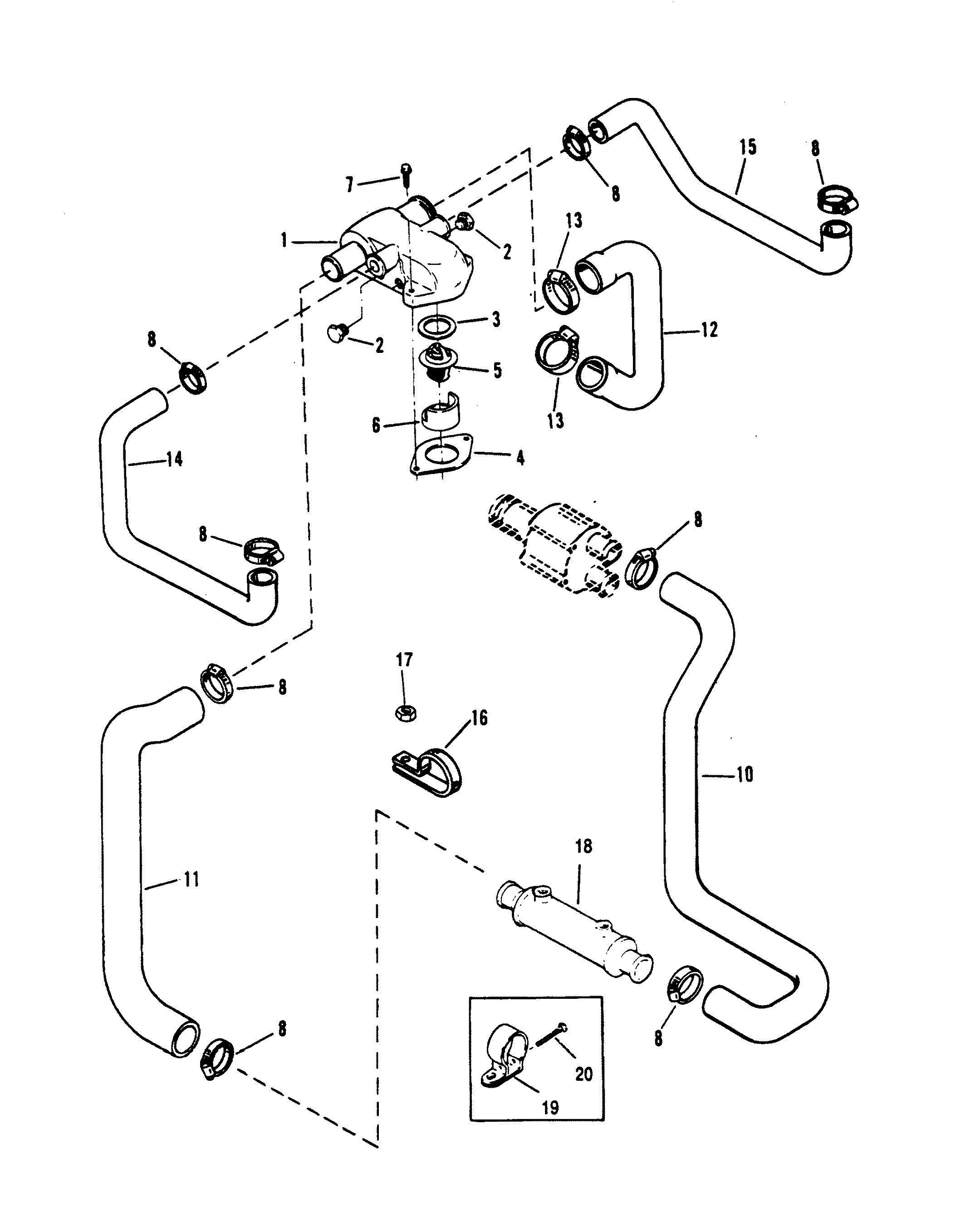

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806235A1



THERMOSTAT HOUSING ASSEMBLY 1

2 22-32803

700-21894
PIPE PLUG 2

3 27-806871



GASKET 1
1
4 27-530451



GASKET 1
1
5 807252T2



THERMOSTAT 1 8072522
6 23-806922



SLEEVE 1

7 10-98794
676-9-78129 700-28300 525-10-98794 SCREW 2

8 54-815504220



CLAMP AR

10 32-887952



HOSE-OIL COOLER TO SEA PUMP 1

11 32-806856



HOSE-OIL COOLER TO THERMOSTAT HOUSING 1

12 32-861590A05



HOSE-THERMOSTAT HOUSING TO WATER PUMP 1 32-806825
13 54-815504232



CLAMP 2

14 32-8066351



HOSE-THERMOSTAT HOUSING (PORT) 1

15 32-8066361



HOSE-THERMOSTAT HOUSING (STARBOARD) 1

16 54-47715



CLIP 1

17 11-29250



NUT 1

18 99356A2



COOLER 1

19 65970T1



BRACKET 1

20 10-41408



SCREW 1
