350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Throttle Body

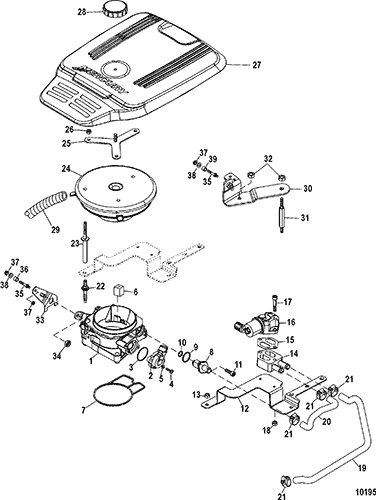

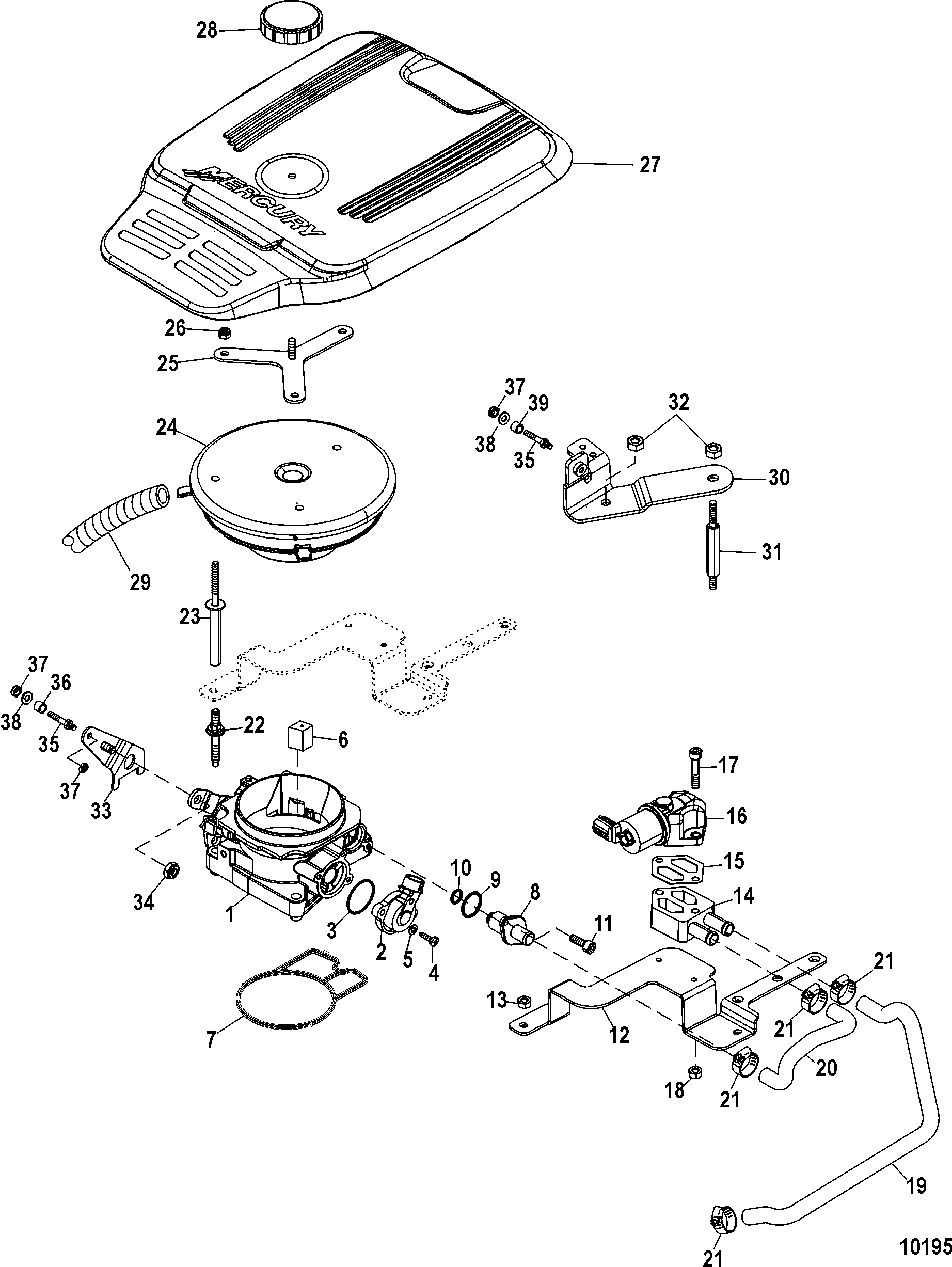

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
1 8M0069801         THROTTLE BODY ASSEMBLY 1 888770T 1
2 853678T   676-9-33702     SENSOR, TPS 1

3 NSS         NOT SOLD SEPARATE, O-Ring 1
This Part is not sold separately 22
4 10-853680         SCREW KIT 2   This Part is No Longer Available
5 NSS         NOT SOLD SEPARATE, Washer 2
This Part is not sold separately 22
6 35-863829         MUFFLER, Intake Air Control 1
1
7 27-885172         GASKET, Throttle Body 1
1
8 862999A3         PLUG KIT 1

9 25-863006         O-RING 1

10 25-808547         O-RING 1

11 10-4008612         SCREW, (M4 x 12) 2

12 863647T         BRACKET 1

13 11-401366         NUT, (M6) Stainless Steel 1

14 863419A1         VALVE ASSEMBLY, Air 1

15 27-863112         GASKET, Air Valve 1

16 862998         VALVE, Idle Air 1
1
17 10-F2192         SCREW 2

18 11-401366         NUT, (M6) Stainless Steel 2

19 32-863429         HOSE 1

20 32-863428         HOSE 1

21 54-815504210         CLAMP, Worm Gear, Hose 4

N.S. 19-8079923         COVER, Hose Clamp End 4

22 16-885171         STUD 3
1
23 16-864338         STUD, Special 3

24 863416T   676-9-31103     FLAME ARRESTOR 1 863416 1
25 863423         BRACKET, Cover Mount 1
1
26 11-401386       602-98-206-03 NUT, (M6) Stainless Steel 3

27 879288T66         COVER, Engine 1 863681
28 11-863701         KNOB, Engine Cover 1
1
29 32-1589424         HOSE, (16.50 Inches Bulk), Breather 1

30 863420T         BRACKET, Throttle Anchor 1
1
31 16-863439         STUD 1
1
32 11-401366         NUT, (M6) Stainless Steel 2

33 863417         BRACKET, Throttle 1
1
34 11-8267138         NUT, (.25-20) 1

35 16-97477A3         STUD KIT, Throttle Anchor 2

36 NSS         NOT SOLD SEPARATE, Spacer 1
This Part is not sold separately
37 11-8267139         NUT, (.250-28) 3

38 12-20533       602-98-260-49 WASHER 2

39 23-31866         SPACER, (.256 x .313 x .625) 2
39 23-11284         SPACER, (.62 Diameter) 1
40 12-86400         WASHER, Seal 1
