350 Mag MPI Alpha-Bravo - Serial 0M300000 Thru 0M599999 - Cylinder Head And Rocker Cover

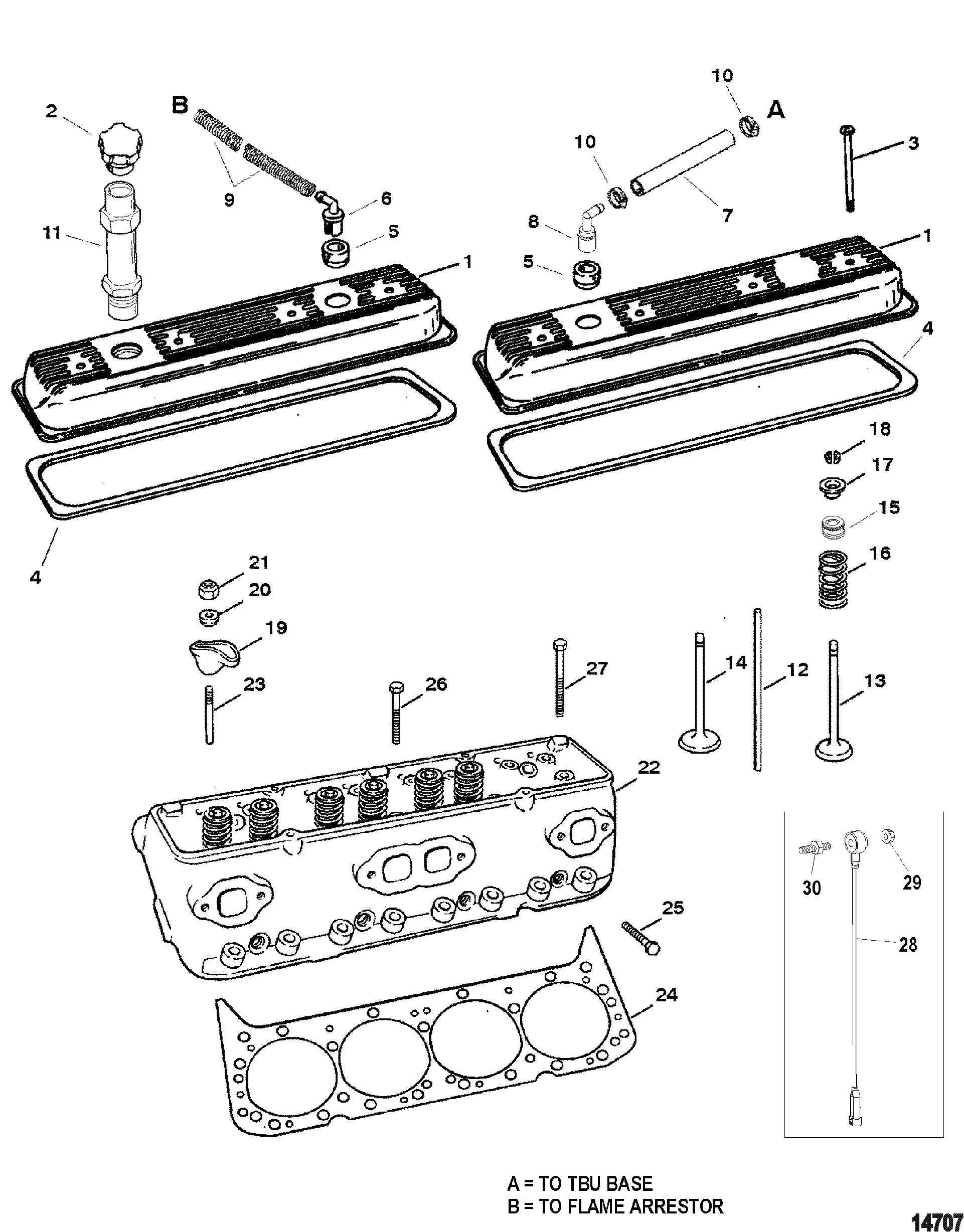

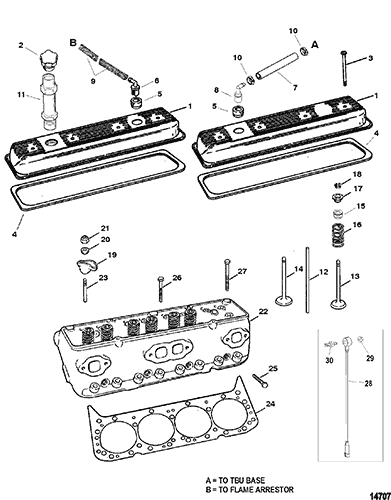

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 809995         COVER, Rocker 1
(With Oil Fill Hole) 4
1 809996         COVER, Rocker 1
(With Out Oil Fill Hole) 4
2 36-18710002         CAP, Oil Fill 1 36-187101 4
3 10-17344         SCREW 8
4
4 27-17467   676-9-61305 700-30357   GASKET, Rocker Cover 2
2,4
5 25-52188         GROMMET 2

6 97850T         ELBOW, 90 Degree 1 97850
7 32-8M0062321         HOSE, (33.00 Inches Bulk) 1 32-86197763
8 8M2017060         VALVE, PCV 1 21-861476
9 32-1589424         HOSE, (16.50 Inches Bulk), Breather 1

10 54-815504105         CLAMP, Worm Gear (11-18 mm), Hose 2

11 807688T         TUBE, Oil Fill 1

12 173391         PUSH ROD 16
4
13 8243171         VALVE 8
4
13 8243181         VALVE AR

14 802555         VALVE, Intake, Standard 8
(5.0L) 4
14 809992         VALVE 8
(5.7L) 4
15 26-976641         SEAL, Intake 8
2,4
15 26-804507         SEAL, Exhaust 8
1,2,4
16 24-483471         SPRING 16
4
17 483481         CAP 16
4
18 28-547971         KEY 32
4
19 35329         ARM KIT, Rocker 16
4
20 35331         BALL, Rocker Arm 16
4
21 v         NUT 16
4
22 938-802556T         CYLINDER HEAD ASSEMBLY, Cylinder 2 938-802556 (5.0L) 4
22 938-803860T         CYLINDER HEAD ASSEMBLY, Cylinder 2
(5.7L) 4
23 16-34522         STUD AR
4
23 16-34521         STUD AR ¬† This Part is No Longer Available¬†4
24 75611001         GASKET 2 27-756111 2,4
25 10-11968         SCREW, (.437-14 x 1.750) 16
4
26 10-119671         SCREW, (.437-14 x 3.00) 4
4
27 10-11966         SCREW, (.437-14 x 3.750) 14
4
28 878187         SENSOR ASSEMBLY, Knock 1

29 11-82670912         NUT, (.375-16) Stainless Steel 1

30 16-863414         STUD, Knock Sensor 1

- 27-861246A05         GASKET SET, Engine Overhaul 1 27-861246A98
