454 Mag Bravo (Gen 5) GM V-8 1992-1994 - Serial 0D805069 Thru 0F304999 - Carburetor And Linkage

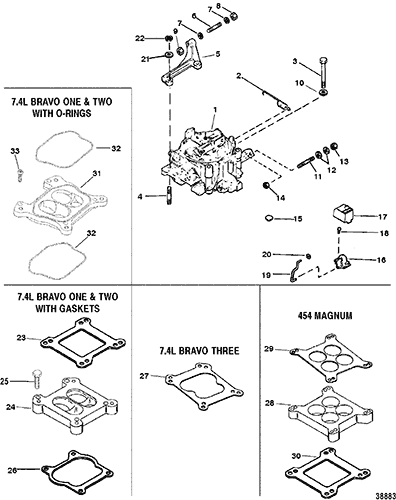

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC155603)
- Alternator (Mando AR-150)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate(454 Magnum)
- Exhaust System(7.4L Bravo)
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor (454 Magnum) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo, 454 Mag.) 0F114760 and Up
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (3-1-4 In. Diameter End Cap)
- Starter Motor (8 In. (Pg 260)2-7-8 In. Diameter End Cap)
- Thermostat Housing (Standard Cooling) 0F305000 and Up
- Thermostat Housing (Standard Cooling) 0F3519999 and Below
- Wiring Harness
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3310-806969A2 | CARBURETOR | 1 | This Part is NLA from Mercruiser. (7.4L BRAVO I & II) SN# 0D603118 THRU 0F351999 | |||||
| 1 | 3310-806969A1 | CARBURETOR | 1 | (7.4L BRAVO I & II) SN# 0F352000 & Up | |||||
| 1 | 3310-806755A2 | CARBURETOR | 1 | This Part is NLA from Mercruiser. (7.4L BRAVO III) SN# 0D838819 & Up | |||||
| 1 | 3310-806755A1 | CARBURETOR | 1 | This Part is NLA from Mercruiser. (454 MAGNUM) SN# 0D808069 THRU 0F304999 | |||||
| 1 | 3310-806755A2 | CARBURETOR | 1 | This Part is NLA from Mercruiser. (454 MAGNUM) SN# 0F305000 & Up | |||||
| 2 | 24-897454 | SPRING | 1 | 24-32817 | |||||
| 3 | 10-35385 | SCREW, (.312-18 x 1-3/4) | 2 | ||||||
| 3 | 10-35386 | SCREW, (.312-18 x 1.00) | 2 | ||||||
| 4 | 16-70237 | STUD, (.312-18/.312-24 x 2.620) | 2 | ||||||
| 4 | 16-70236 | 700-22482 | STUD, (.312 x 1.500) | 2 | |||||
| 5 | 817685T | BRACKET (CAST) | 1 | This Part is NLA from Mercruiser. | |||||
| 5 | 805359T | BRACKET (STAMPED) | 1 | ||||||
| 6 | 16-818192 | STUD | 1 | ||||||
| 7 | 12-24664 | WASHER, (M4 x 20) | 2 | ||||||
| 8 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 9 | 11-8267089 | NUT, (.250-28) | 1 | 11-20361 | |||||
| 10 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 2 | |||||
| 11 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 12 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 13 | 11-8267089 | NUT, (.250-28) | 1 | 11-20361 | |||||
| 14 | 11-826709109 | NUT, (.250-28) | 1 | 11-35045 | |||||
| 15 | 22-48358T | PLUG, (.375) | 1 | 22-48358 | |||||
| 16 | 71464A01 | CHOKE | 1 | 71464 | AUTOMATIC CHOKE | ||||
| 17 | 63922 | COVER | 1 | AUTOMATIC CHOKE | |||||
| 18 | 10-69235 | SCREW, (.190-24 x .500) | 1 | AUTOMATIC CHOKE | |||||
| 19 | 806937 | ROD, Choke | 1 | This Part is NLA from Mercruiser. (7.4L BRAVO I & II) AUTOMATIC CHOKE | |||||
| 19 | 806940 | ROD, Choke | 1 | This Part is NLA from Mercruiser. (454 MAGNUM & 7.4L BRAVO III) AUTOMATIC CHOKE | |||||
| 20 | 54-89668 | CLIP | 1 | This Part is NLA from Mercruiser. AUTOMATIC CHOKE | |||||
| 21 | 12-20084 | WASHER, (.328 x .562 x .062) | 2 | ||||||
| 22 | 11-29250 | NUT, (.312-24) | 2 | ||||||
| 23 | 27-41610 | 676-9-61001 | GASKET | 1 | 7.4L BRAVO I & II WITH GASKETS 4 | ||||
| 24 | 806177A3 | SPACER | 1 | This Part is NLA from Mercruiser. 7.4L BRAVO I & II WITH GASKETS | |||||
| 25 | 10-54523 | SCREW, (.312-18 x 1.00) | 4 | 7.4L BRAVO I & II WITH GASKETS | |||||
| 26 | 27-524572 | GASKET | 1 | 7.4L BRAVO I & II WITH GASKETS 4 | |||||
| 27 | 27-814210 | GASKET | 1 | (7.4L BRAVO III & 454 MAGNUM WITH #9773 CARBURETOR) 4 | |||||
| 28 | 889338A1 | SPACER | 1 | 806833A1 | This Part is NLA from Mercruiser. (NOT USED WITH #9773 CARBURETOR) 454 MAGNUM | ||||
| 29 | 27-41609 | 676-9-61002 | 700-30361 | GASKET | 1 | 454 MAGNUM 5 | |||
| 30 | 27-41610 | 676-9-61001 | GASKET | 1 | 454 MAGNUM 5 | ||||
| 31 | 806177A3 | SPACER | 1 | This Part is NLA from Mercruiser. 7.4L BRAVO I & II WITH O-RINGS | |||||
| 32 | 25-806237 | QUAD RING | 2 | 7.4L BRAVO I & II WITH O-RINGS | |||||
| 33 | 10-54523 | SCREW, (.312-18 x 1.00) | 4 | 7.4L BRAVO I & II WITH O-RINGS | |||||
| - | 27-811547A92 | GASKET SET, Engine | 1 | (7.4L BRAVO) | |||||
| - | 27-811572A92 | GASKET SET, Overhaul | 1 | This Part is NLA from Mercruiser. (454 MAGNUM) |
