4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Throttle Linkage

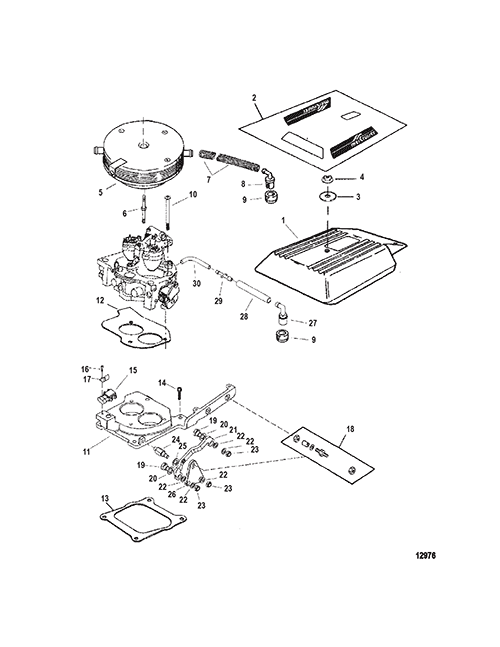

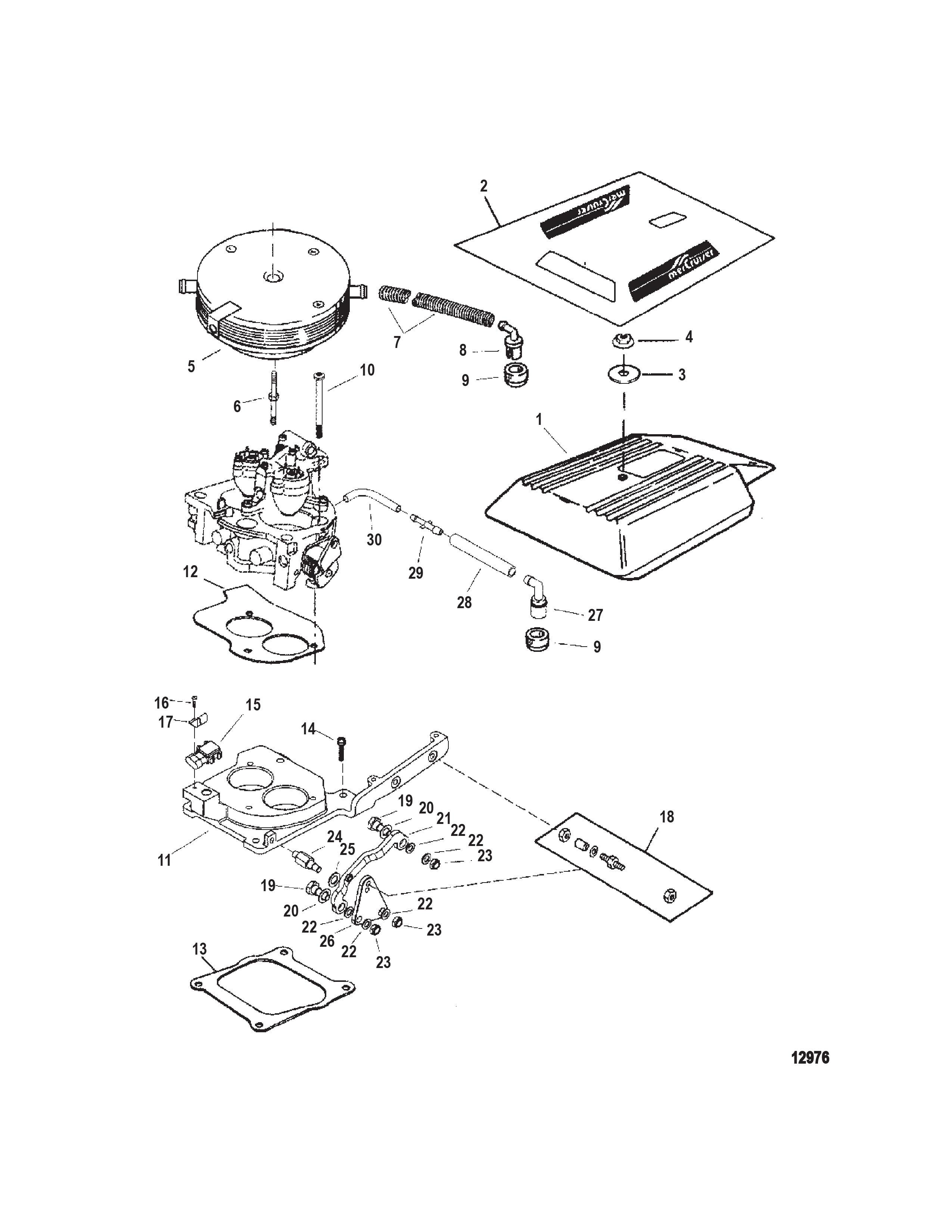

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-18484A3 COVER   1
2 0037 861314A9 DECAL SET   1
3 0012 OEM: 525-12-86400 WASHER   1
4 0011 OEM: 525-11-826709109 NUT (.250-28) Stainless Steel Nylock   1
5 0000 806637T1 FLAME ARRESTOR   1 [1]
6 0016 OEM: 525-16-806703 STUD   1
7 0032 OEM: 525-32-1589424 HOSE (16.50 Inches Bulk)   1
8 0000 97850 ELBOW 90 Degree Breather   1
9 0025 OEM: 525-25-827152 GROMMET   2
10 0010 OEM: 525-10-805390 SCREW (.312-18 x 2.250)   3
11 0000 861197A2 ADAPTOR ASSEMBLY TBI   1 [1]
12 0027 OEM: 525-27-806640 GASKET   1 [2]
13 0027 OEM: 525-27-807756 GASKET   1 [2]
14 0010 807717 SCREW (.312-18 x .750)   4
15 0000 861249A1 SENSOR ASSEMBLY Manifold Air Pressure   1 [1]
16 0010 OEM: 525-10-821579 SCREW (#10-24 x .500)   1
17 0000 OEM: 525-861198 CLIP   1 [1]
18 0016 OEM: 525-16-97477A3 STUD KIT   2
19 0010 OEM: 525-10-806946 BOLT   2
20 0012 OEM: 525-12-861854 WASHER (.453 x .750 x .032) Stainless Steel   2
21 0000 OEM: 525-807097T CONNECTOR   1
22 0012 OEM: 525-12-20084, GLM: 700-21664 WASHER (.328 x .562 x .062)   5
23 0011 45592 NUT (.312-24)   3
24 0000 806915 SHAFT   1
25 0012 OEM: 525-12-79552 WASHER (.453 x .750 x .062) Stainless Steel   1
26 0000 806916T PLATE   1
27 0021 806118 VALVE PVC   1
28 0032 86197763 HOSE (33.00 Inches Bulk) (Cut To 0.375 Inch Length) 1
29 0022 OEM: 525-22-808061 CONNECTOR Hose   1
30 0032 80804762 HOSE (.2187 x .440)   1
- 0027 OEM: 525-27-807756A96 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - Part Is New And Listed For The First Time

[2] - Component Of Engine/Powerhead Gasket Set 807756A96
