4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Closed Cooling System

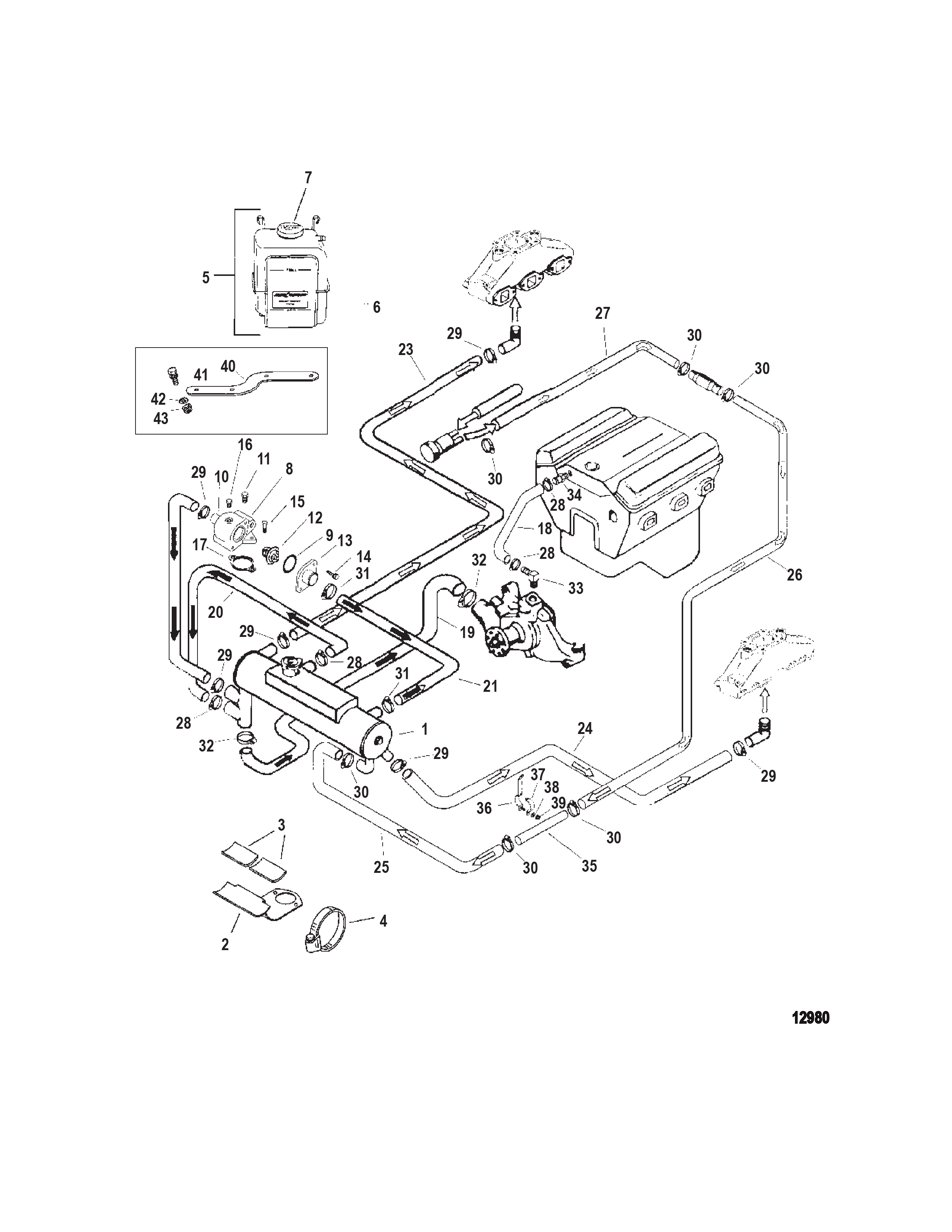

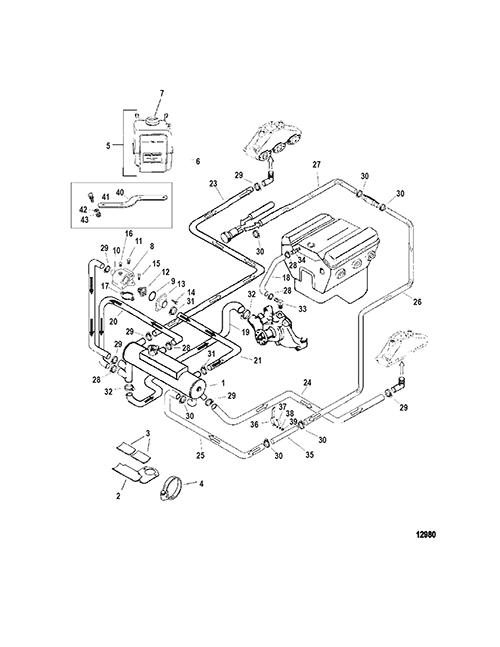

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Brackets
- Closed Cooling System
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor
- ECM And Electrical Brackets
- Electrical Components
- Engine Mounting
- Exhaust Manifold (One Piece)
- Exhaust Manifold And Exhaust Elbow (Two Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust System (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Jackshaft
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Service-Support Material
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-860234A1 | HEAT EXCHANGER | 1 | ||
| NS | 0000 | 814875 | COVER Heat Exchanger End | 2 | ||
| NS | 0027 | 803644 | GASKET | 2 | ||
| NS | 0010 | OEM: 525-10-814877 | BOLT | 2 | ||
| NS | 0025 | 814878 | O-RING Special | 2 | ||
| NS | 0036 | OEM: 525-36-8148791 | CAP | 1 | ||
| 2 | 0000 | 860326A2 | BRACKET ASSEMBLY Heat Exchanger | 1 | [1] | |
| 3 | 0000 | OEM: 525-18431 | PAD | 2 | ||
| 4 | 0054 | OEM: 525-54-815504388 | CLAMP Worm Gear | 2 | ||
| 5 | 0000 | OEM: 525-71587A10 | RECOVERY KIT Coolant | 1 | [2] | |
| NS | 0032 | OEM: 525-32-774572 | HOSE (48.00 Inches Bulk) | 1 | ||
| 6 | 0000 | OEM: 525-71587A11 | BOTTLE Plastic | 1 | ||
| 7 | 0000 | OEM: 525-72058 | CAP | 1 | ||
| 8 | 0000 | OEM: 525-861188A1, Sierra: 676-18-3531, GLM: 700-13540 | HOUSING ASSEMBLY Thermostat | 1 | [1] | |
| 9 | 0025 | OEM: 525-25-8071341, Sierra: 676-18-1508 | SEAL | 1 | [3] | |
| 10 | 0023 | 52020 | SLEEVE Hose | 1 | ||
| 11 | 0022 | OEM: 525-22-32803, Sierra: 676-18-4264, GLM: 700-21894 | PLUG Pipe (.375-18) Brass | 1 | ||
| 12 | 0000 | OEM: 530-991551 | THERMOSTAT | 1 | [4] | |
| 13 | 0000 | OEM: 525-807075A1 | COVER | 1 | ||
| 14 | 0010 | OEM: 525-10-29198 | SCREW AND LOCKWASHER (.312- 18 x .875) | 2 | ||
| 15 | 0010 | OEM: 525-10-58640 | SCREW (.375-16 x 1.25) | 2 | ||
| 16 | 0022 | OEM: 525-22-328022, Sierra: 676-18-4263 | PLUG Pipe (.125-27) Brass | 1 | ||
| 17 | 0027 | OEM: 525-27-530451, Sierra: 676-18-2917 | GASKET | 2 | [5] | |
| 18 | 0032 | OEM: 525-32-8059871 | HOSE Water Pump To Intake Manifold | 1 | ||
| 19 | 0032 | OEM: 525-32-861059 | HOSE | 1 | ||
| 20 | 0032 | 4285069 | HOSE (44.00 Inches Bulk) | 1 | ||
| 21 | 0032 | OEM: 525-32-860419 | HOSE Thermostat Housing To Heat Exchanger | 1 | ||
| 22 | 0032 | OEM: 525-32-860485 | HOSE Thermostat By-Pass | 1 | ||
| 23 | 0032 | OEM: 525-32-860327 | HOSE | (Starboard) (Two PC Manifold) | 1 | |
| 23 | 0032 | OEM: 525-32-860421 | HOSE Heat Exchanger To Exhaust Manifold | (Starboard) (One PC Manifold) | 1 | |
| 24 | 0032 | 862150 | HOSE Heat Exchange To Exhaust Manifold. | (Port) (Two PC Manifold) | 1 | |
| 24 | 0032 | OEM: 525-32-862125 | HOSE Heat Exchanger To Exhaust Manifold | (Port) (1 PC Manifold) | 1 | |
| 25 | 0032 | OEM: 525-32-860332 | HOSE | 1 | ||
| 26 | 0032 | OEM: 525-32-860206 | HOSE Fuel Cooler to Power Steering Cooler | 1 | ||
| 27 | 0032 | OEM: 525-32-860205, Sierra: 676-18-70951 | HOSE Oil Cooler to Sea Water Pump | 1 | ||
| 28 | 0054 | OEM: 525-54-815504212 | CLAMP Worm Gear | 2 | ||
| 29 | 0054 | OEM: 525-54-815504220 | CLAMP Worm Gear | 6 | ||
| 30 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) | 6 | ||
| 31 | 0054 | OEM: 525-54-815504228 | CLAMP Worm Gear | 2 | ||
| 32 | 0054 | OEM: 525-54-815504232 | CLAMP Worm Gear (2.50 Diameter) | 2 | ||
| 33 | 0022 | OEM: 525-22-860346 | FITTING Elbow (90 Degree) (.750) | 1 | ||
| 34 | 0022 | OEM: 525-22-806242 | CONNECTOR (.50-14) | 1 | ||
| 35 | 0000 | OEM: 525-860315A1 | TUBE Hose Extender | 1 | ||
| 36 | 0000 | OEM: 525-860418T | BRACKET | 1 | ||
| 37 | 0000 | OEM: 525-860417T | CLAMP | 1 | ||
| 38 | 0012 | OEM: 525-12-35462 | WASHER (.2656 x .625 x .0625) Stainless Steel | 1 | ||
| 39 | 0011 | OEM: 525-11-8267088 | NUT (.250-20) | 1 | ||
| 40 | 0000 | OEM: 525-862861 | BRACKET | 1 | [1] | |
| 41 | 0010 | OEM: 525-10-65746 | SCREW (.250-20 x .750) | 2 | ||
| 42 | 0012 | OEM: 525-12-22937 | WASHER | 2 | ||
| 43 | 0011 | OEM: 525-11-8267088 | NUT (.250-20) | 2 | ||
| NS | 0019 | 8079923 | COVER Hose Clamp End | AR | ||
| - | 0027 | OEM: 525-27-807756A96 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Part Is New And Listed For The First Time
[2] - Coolant Recovery System Is Sold As A Complete Kit. Component Parts Can Be Puchased Locally.
[3] - Component Of Engine/Powerhead Gasket Set 807756A96
[4] - Alternate part numbers:
99155 1Service Part
99155T 1Kit
[5] - Alternate part numbers:
53045 1Service Part
53045Q01QS
Component Of Engine/Powerhead Gasket Set 807756A96
