4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Fuel Pump And Fuel Cooler

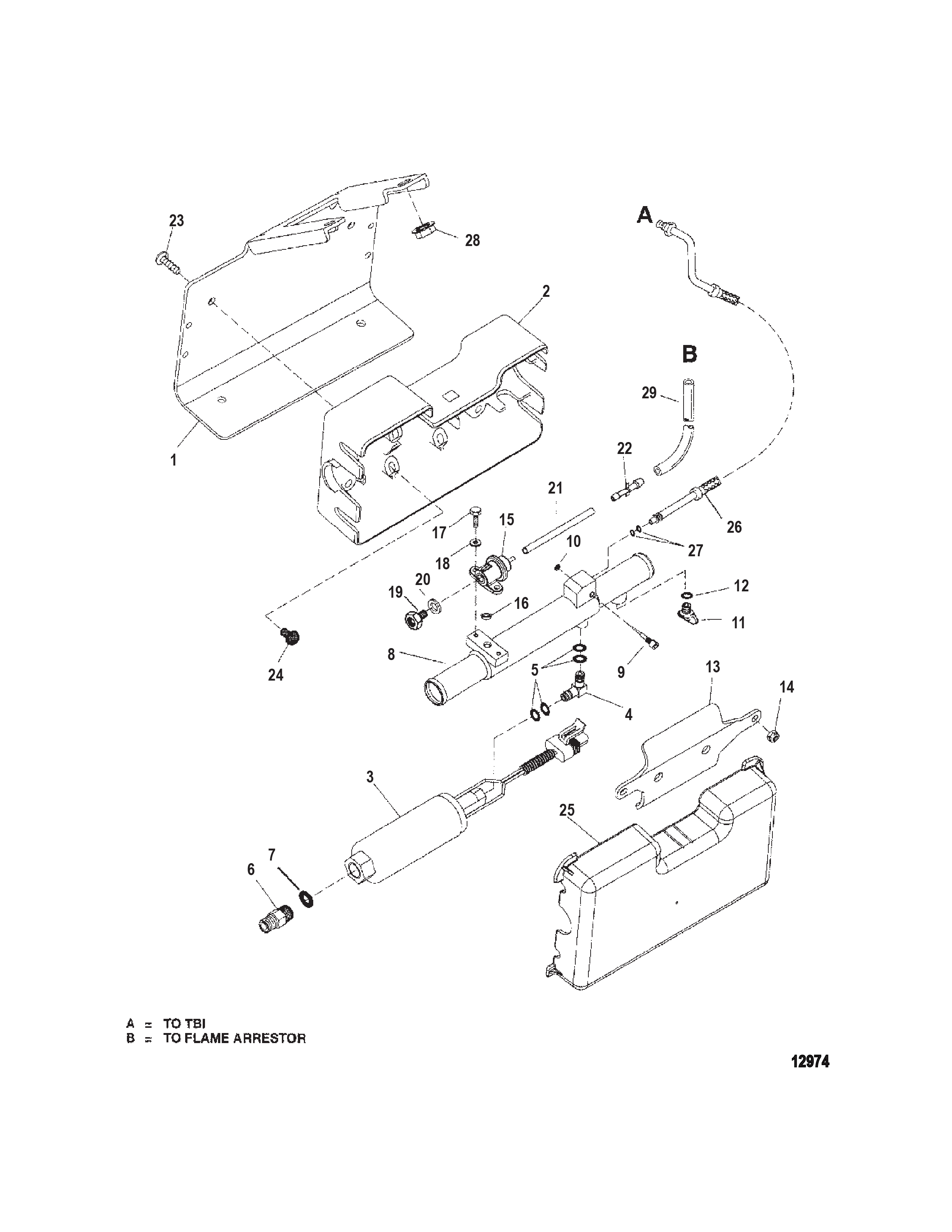

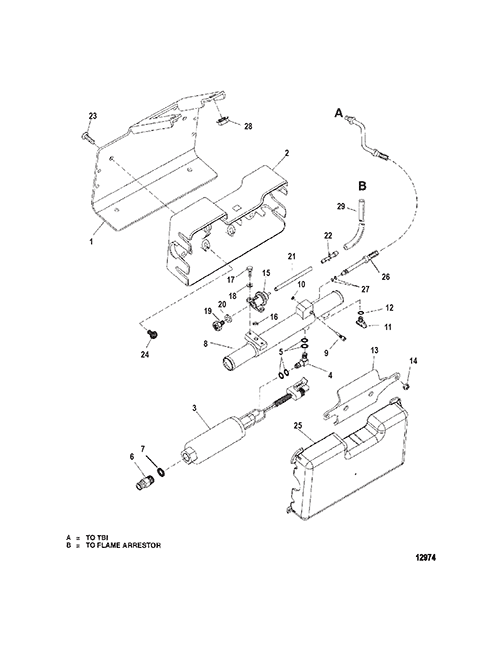

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-807951T BRACKET Fuel Cooler   1
2 0000 OEM: 525-807685T INSULATOR   1
3 0000 861156A1 PUMP ASSEMBLY   1
4 0022 OEM: 525-22-807783A1 FITTING ASSEMBLY 90 Degree   1
5 0025 OEM: 525-25-805063 O-RING (.301 x .070)   4 [1]
6 0022 OEM: 525-22-808001A1 FITTING ASSEMBLY   1
7 0025 OEM: 525-25-805062 O-RING (.530 x .082)   1 [1]
8 0000 OEM: 525-861267A1 COOLER KIT Fuel   1 [2]
9 0010 861303 SCREW (.250-28) Special   1 [2]
10 0053 OEM: 525-53-861414 RING Retaining   1 [2]
11 0022 806608A1 PLUG KIT (.500-13) Royal Blue   1 [3]
12 0025 32509 O-RING (.489 x .070)   1 [1]
13 0000 OEM: 525-807979T BRACKET   1
14 0011 OEM: 525-11-29598 NUT (.250-28) Stainless Steel   2
15 0000 OEM: 530-807952A1 REGULATOR KIT Fuel Pressure   1
16 0035 OEM: 525-35-805406 FILTER   1
17 0010 OEM: 525-10-852368 SCREW (#10-24 x .750)   2
18 0012 OEM: 525-12-89302 WASHER (.203 x .406 x .040)   2
19 0022 OEM: 525-22-808002A1 FITTING KIT   1
20 0012 OEM: 525-12-36533 WASHER (.328 x .562 x .0312) Copper   1
21 0032 80617379 HOSE (52.00 Inches Bulk)   1
22 0022 OEM: 525-22-807971 CONNECTOR Hose   1
23 0010 OEM: 525-10-808005 SCREW (.250-20 x .500)   4
24 0000 OEM: 525-269011 BUMPER Rubber   8
25 0000 807930 INSULATOR   1
26 0032 861571A1 LINE Fuel Fuel Cooler To TBI   1 [2]
27 0025 OEM: 525-25-805063 O-RING (.301 x .070)   2 [1]
28 0011 OEM: 525-11-4013610 NUT (M10) Stainless Steel   2 [4]
29 0032 80804762 HOSE (.2187 x .440)   1
- 0027 OEM: 525-27-807756A96 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - Component Of Engine/Powerhead Gasket Set 807756A96


[2] - Part Is New And Listed For The First Time


[3] - Alternate part numbers:

806608A 1Service Part

806608Q01QS


[4] - Metric Fastener Change S/N 0L320000 And Up?
