4.3L EFI (GEN+) TBI GM 262 V-6 - 0L619000 THRU 0M322780 - Starter Motor

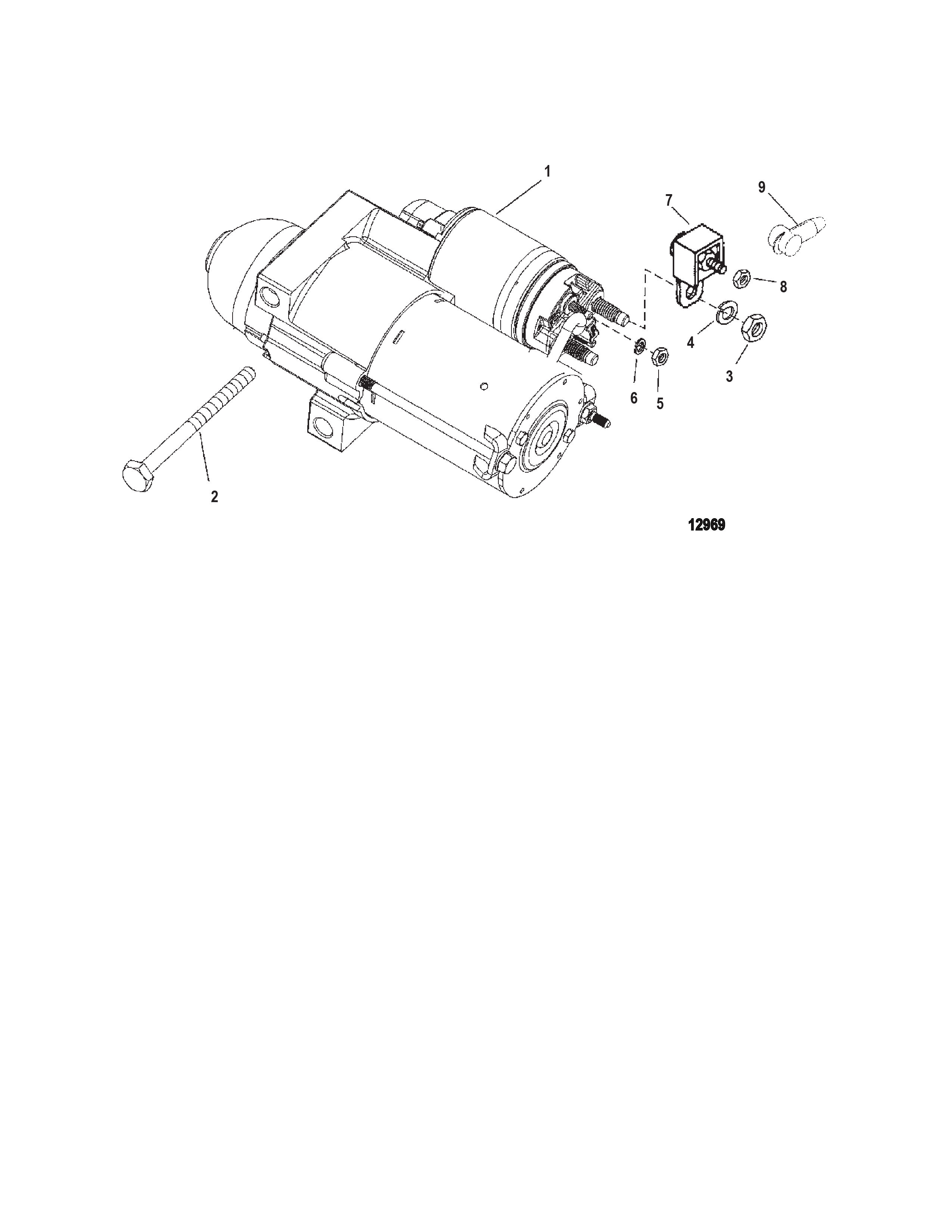

Section Drawing: (Hover or click to view larger)



Ref #Part ClassPart NumberDescriptionCommentsQtyNote
10050OEM: 530-863007A1, Sierra: 676-18-6275STARTER MOTOR ASSEMBLY(Delco PG260G)1[1]
10050807904A1STARTER MOTOR ASSEMBLY(Delco PG260F1)1[2]
20010OEM: 525-10-861788SCREW (M10 x 1.5) 2
30011OEM: 525-11-806949NUT (M8-1.5) 2
40013OEM: 525-13-39107, GLM: 700-21496LOCKWASHER (.312-24) 2
50011OEM: 525-11-400211NUT (M5) Stainless Steel 2
60013OEM: 525-13-26996LOCKWASHER (#10) Stainless Steel 2
70088OEM: 530-79023A91, Sierra: 676-18-8220FUSE ASSEMBLY 90 Ampere 1
8001113438NUT (.250-28) 1
9008579695BOOT Insulator - Black 1

PART NOTES:

[1] - Alternate part numbers:

863007A 1QS

863007R01Reman


[2] - Alternate part numbers:

807904A 1QS

863007R01Reman
